Install Rear Foot Plate Arm
Position new rear foot plate arm in place.
Place a drop of Loctite on the BHSCS and another drop inside the shaft into where the BHSCS
will be tightened.
Install BHSCS and washer to rear foot plate arm using a 7/32" Allen wrench. BHSCS must be
tightened to a minimum of 250 lbs-in.
Install Front Foot Plate Arm
Position front foot plate arm in place.
Place a drop of Loctite on the BHSCS and another drop inside the shaft into where the BHSCS
will be tightened.
Install BHSCS and washer to front foot plate arm using a 7/32" Allen wrench. BHSCS must be
tightened to a minimum of 250 lbs-in.

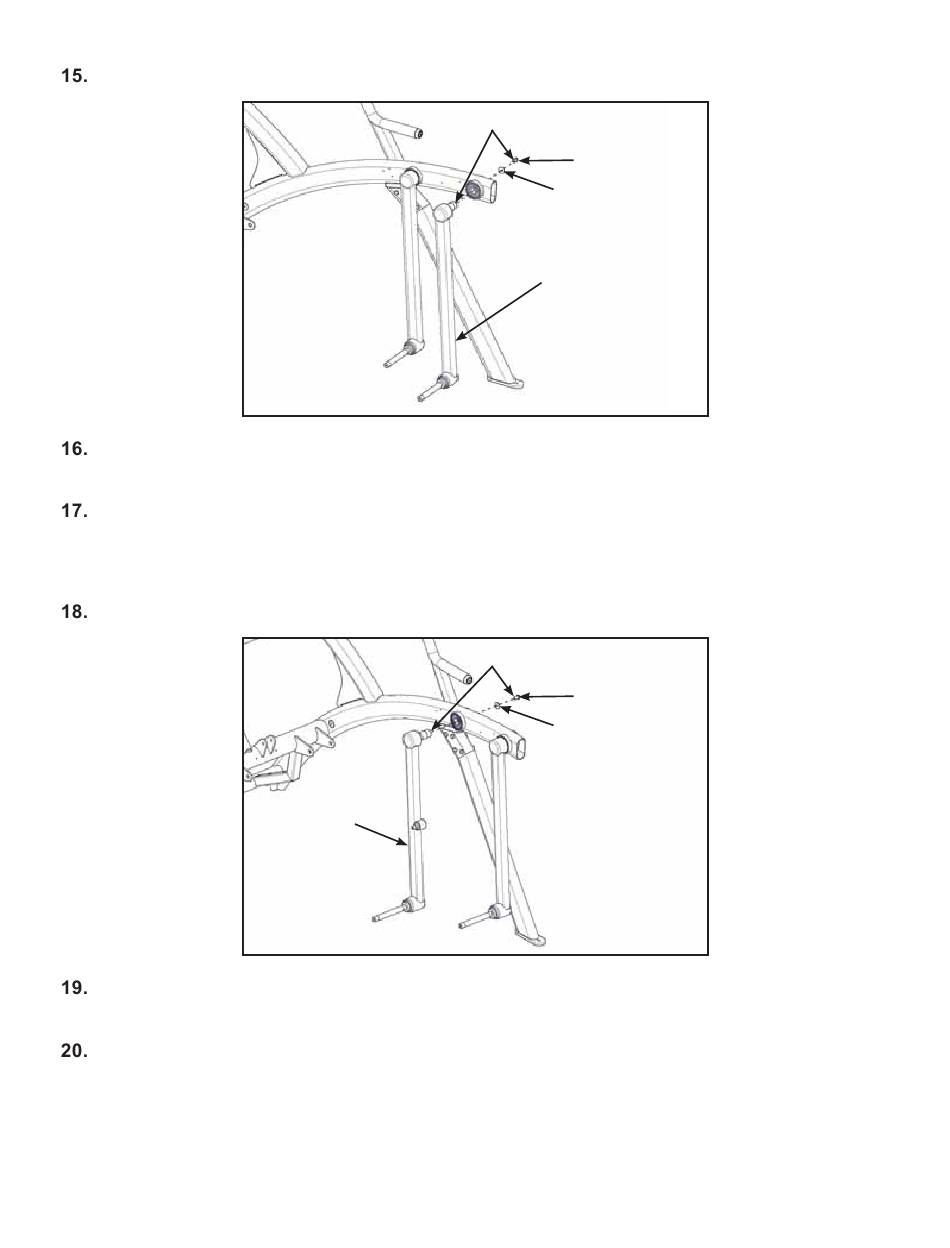

Front Foot
Plate Arm
Loctite
BHSCS
Washer
Rear Foot
Plate Arm
Loctite
BHSCS
Washer
