Remove incline motor cover

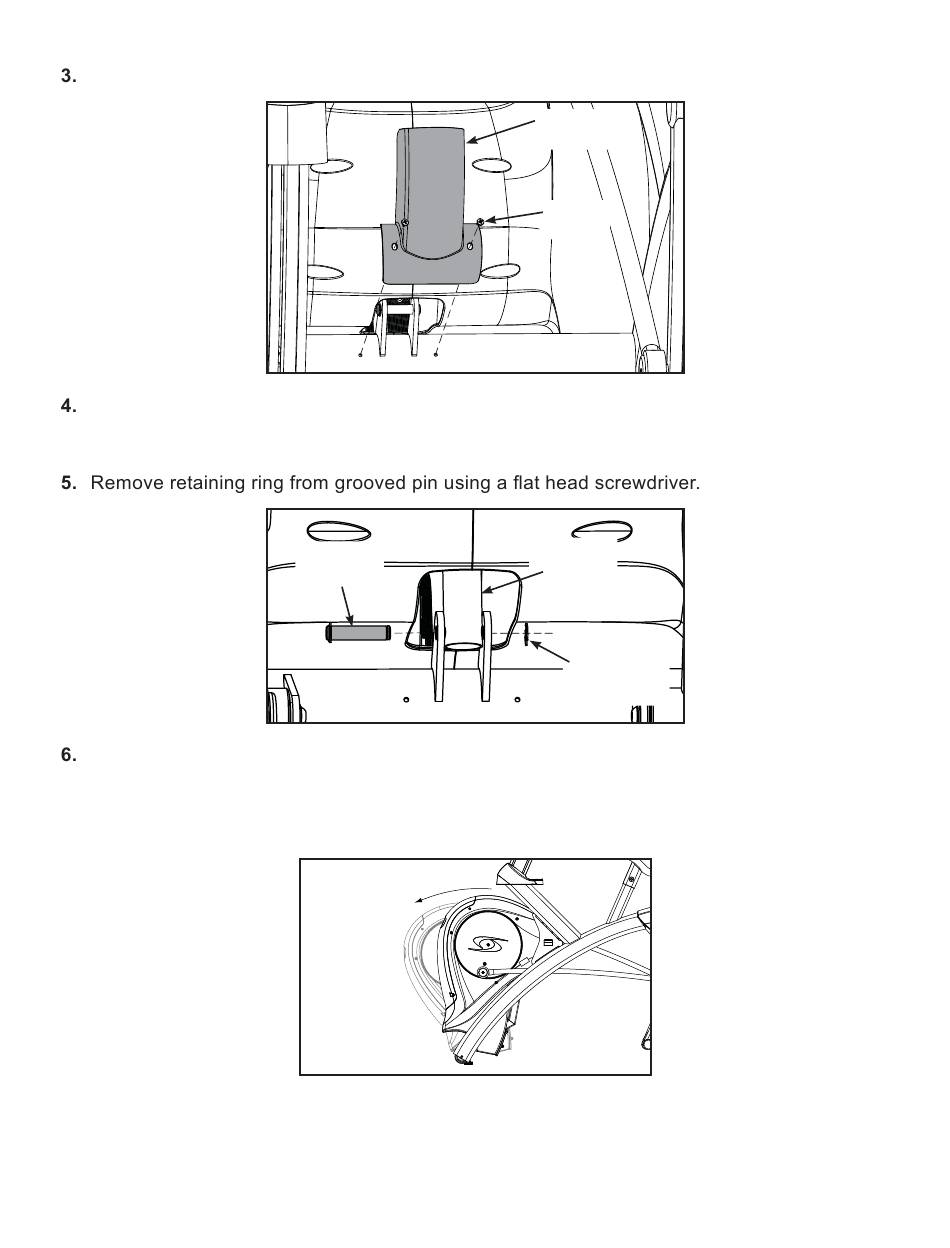

Remove both screws securing the incline motor cover using a Phillips screwdriver.
Remove incline motor cover.
Remove lower incline motor support pin and retaining ring
Remove grooved pin securing incline motor to main frame.
Tilt front end assembly forward
Tilt front end assembly forward carefully until it stops.
Grooved
Pin
Tilt
Forward
52
Incline
Motor Cover
Screw
(2)
Incline
Motor
Retaining
Ring
