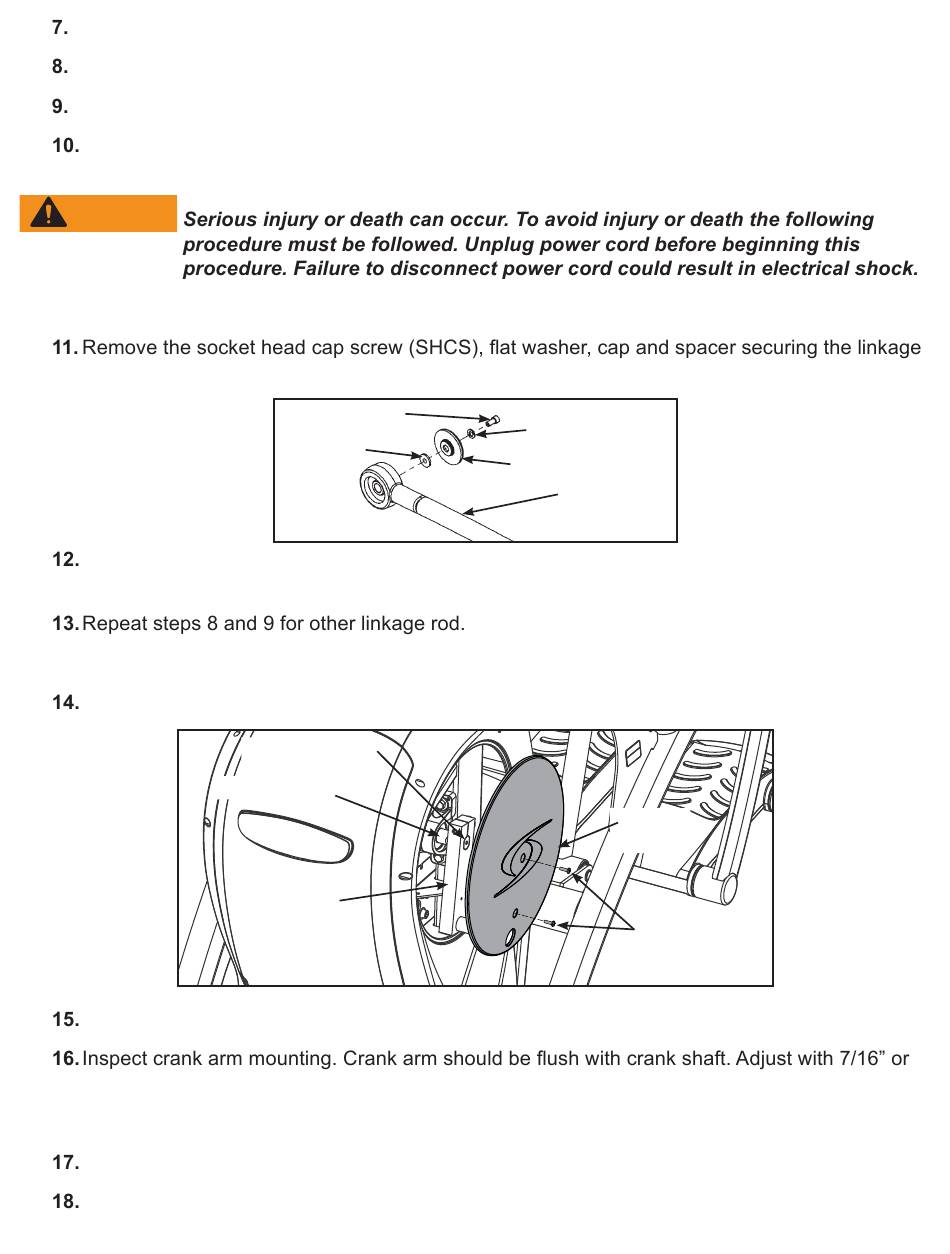

Begin striding.The control panel will light up and be in the Dormant Mode.
Press the elevation + key to elevate to level 20 incline.
Stop striding and verify foot plates are completely stopped.
Unplug the battery connector from the control board. If unit has optional A/C power kit, unplug
power cord from power outlet.
WARNING:
Remove linkage rods
rod using a 3/16" Allen wrench.
Lay the linkage rod down on the frame. Place a cloth in between the linkage rod and the frame
to prevent scratches.
Remove crank covers
Remove both screws securing crank cover using a Phillips screwdriver.
Remove crank cover.
1/2" socket wrench if needed.
Remove both shrouds
Remove screws securing each shroud in place using a long Phillips screwdriver.
Remove both shrouds.
SHCS
Spacer
Flush Mount
Crank Shaft
Crank
Arm
Flat washer
Cap
Linkage
rod
Crank
Cover
Screws (2)
41
