2.5 Completion

Installation Completion
Check the connection of all wires and the RJ-45 plug to the board connector.
Caution
All unused connectors have to have tightened screws in order to avoid
vibration caused by sound.

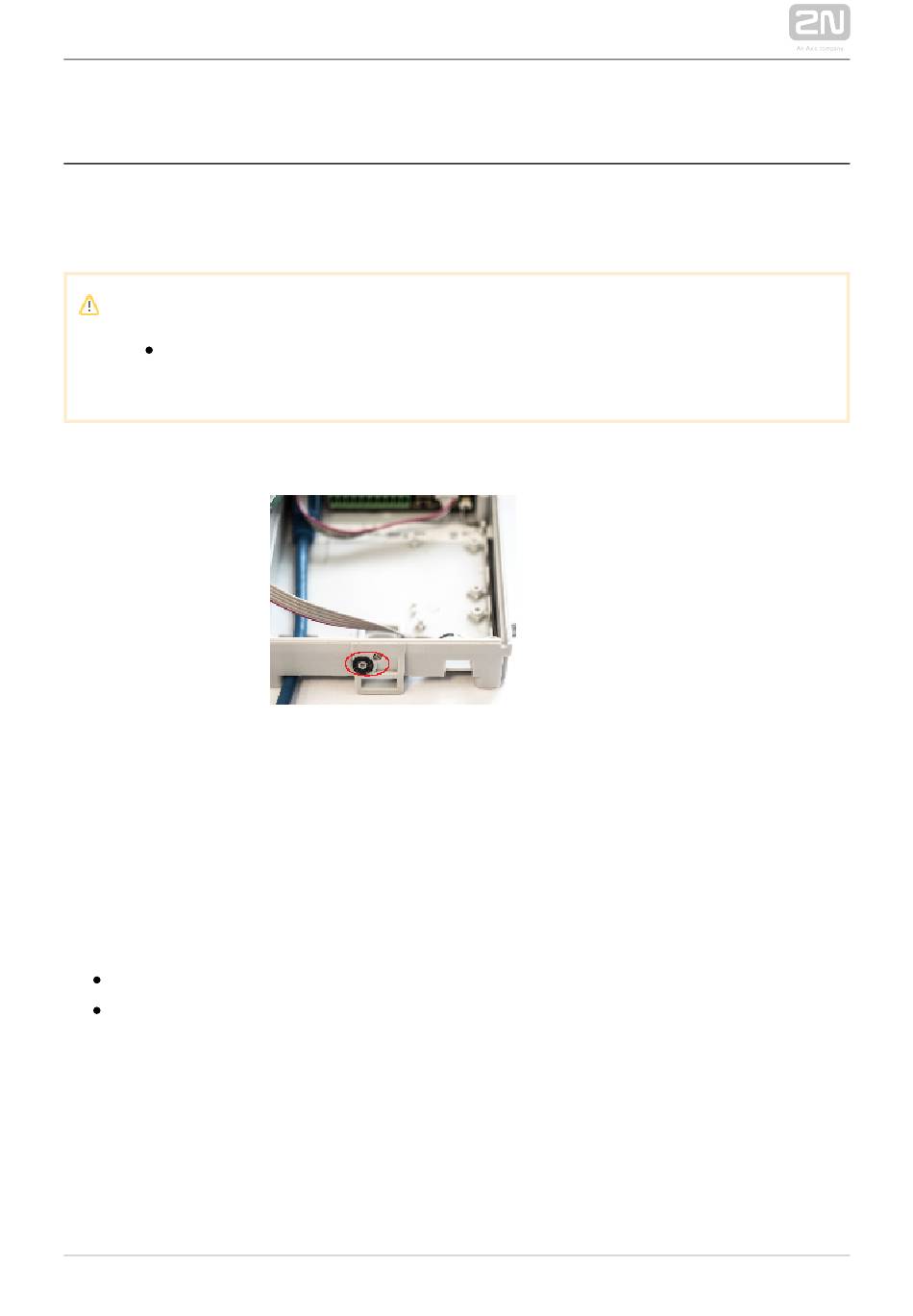

Make sure before mounting that the black sealing ring is placed properly. We
recommend you to fit the microphone with the screw included in the delivery.
Nametag Placing
Every intercom package includes a piece of transparent foil, which can be laser
printed. Cut the printed foil and insert the nametags in the buttons.
We recommend you to use separate foil for every button in the 5-button module.
Refer to section download for the nametag printing template.
Nametag dimensions for 5-button module:
1 button: 52.0 (W) x 15.2 (H) mm (dimensional tolerance: +0; -0.5 mm)
5 buttons: 57.5 (W) x 89.0 (H) mm (dimensional tolerance: +0; -0.5 mm)
Infopanel nametag dimensions: 69.2 (W) x 86.7 (H) mm (dimensional tolerance: +0;
-0.5 mm).
