Summary of Contents for Axis A82 Series
-
Page 1: User Manual

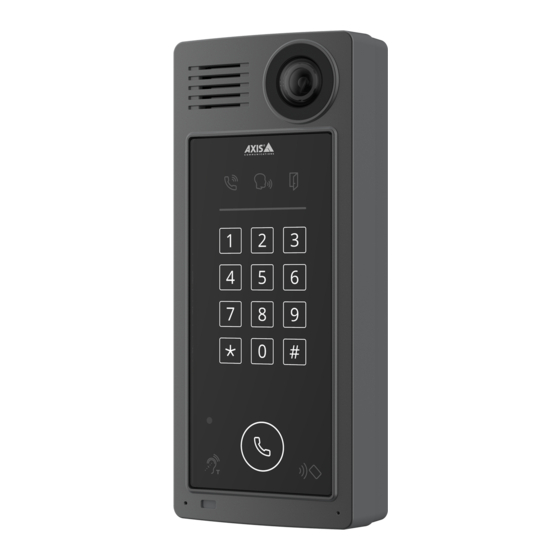

AXIS A82 Network Video Door Station Series AXIS A8207-VE Network Video Door Station AXIS A8207-VE Mk II Network Video Door Station User Manual... -
Page 2: Table Of Contents
AXIS A82 Network Video Door Station Series Table of Contents Solution overview ......... . . -
Page 3: Solution Overview
AXIS A82 Network Video Door Station Series Solution overview Solution overview AXIS A9801 AXIS A9161 Door station Door station combined with AXIS A9801 Door station combined with AXIS A9161 Door station combined with an access control system, for example AXIS A1001 or AXIS A1601... -
Page 4: Product Overview
AXIS A82 Network Video Door Station Series Product overview Product overview Speaker Camera Call indicator icons on page 20 Card reader indicator stripe on page 20 Keypad Call button on page 20 Card reader icon Microphone PIR-sensor 10 T-coil icon... - Page 5 AXIS A82 Network Video Door Station Series Product overview HDMI connector on page 21 (microHDMI) Power connector on page 23 Network connector on page 21 (PoE+) Relay connector on page 21 Relay connector on page 21 I/O connector on page 22...
-
Page 6: Get Started
Get started Find the device on the network To find Axis devices on the network and assign them IP addresses in Windows®, use AXIS IP Utility or AXIS Device Manager. Both applications are free and can be downloaded from axis.com/support. -
Page 7: Additional Settings
AXIS A82 Network Video Door Station Series Additional settings Additional settings This section will cover all the important configurations that an installer needs to do to get the product up and running after the hardware installation has been completed. Change the root password 1. -
Page 8: Set Up Sip Through A Server (Pbx)
AXIS A82 Network Video Door Station Series Additional settings Set up SIP through a server (PBX) VoIP (Voice over IP) is a group of technologies that enables voice and multimedia communication over IP networks. For more, see Voice over IP (VoIP) on page 13. -
Page 9: Configure The Call Button
By default, the call button is configured to make VMS (Video Management System) calls. If you want to keep this configuration, you just need to add the Axis network door station to the VMS. This example explains how to set up the system to call a contact in the phone book when a visitor presses the call button. -
Page 10: Set Up As Card Reader - Network Connection
Important The network connection only works with Axis door controllers. To connect to a non-Axis door controller, you need to physically connect the devices with wires. See Set up as card reader - wired connection on page 10. -
Page 11: Use Dtmf To Unlock The Door For A Visitor
In the Name field, enter "DTMF unlock door". From the list of triggers, select Call, DTMF and Unlock door. From the list of actions, select Axis Door Control. 5. Click New Recipient. 6. Enter the details for the door controller and click OK. -
Page 12: Transmit Live Video To A Monitor
AXIS A82 Network Video Door Station Series Additional settings 8. Under Door actions, select AccessDoor. 9. Click OK. Transmit live video to a monitor Your device can transmit a live video stream to an HDMI monitor without a network connection. Use the monitor to see who is at the door. -
Page 13: Learn More
In the Axis product, VoIP is enabled through the Session Initiation Protocol (SIP) and Dual-Tone Multi-Frequency (DTMF) signaling. Example When you press the call button on an Axis door station, a call is initiated to one or more predefined recipients. When a recipient replies, a call is established. The voice and video is transferred through VoIP technologies. - Page 14 You can set up the Axis door station to call for example a SIP-enabled phone on the same network using a peer-to-peer SIP setup. Private Branch Exchange (PBX) When you make SIP calls outside your local IP network, a Private Branch Exchange (PBX) can act as a central hub. The main component of a PBX is a SIP server, which is also referred to as a SIP proxy or a registrar.
-
Page 15: Set Up Rules And Alerts
When you press the call button on an Axis door station, the call is forwarded through one or more PBXs to a SIP address either on the local IP network or over the internet. Set up rules and alerts You can create rules to make your device perform an action when certain events occur. -
Page 16: Daily Use
AXIS A82 Network Video Door Station Series Daily use Daily use Use the keypad I want to... Action Call someone who can let me into the building. Press Call a person in the building. Enter the person’s speed dial number and press Open the door with my card and PIN. -
Page 17: Troubleshooting
AXIS A82 Network Video Door Station Series Troubleshooting Troubleshooting If you can’t find what you’re looking for here, try the troubleshooting section at axis.com/support. Reset to factory default settings Important Reset to factory default should be used with caution. A reset to factory default resets all settings, including the IP address, to the factory default values. -
Page 18: Technical Issues, Clues And Solutions
Axis device. Check all cabling and reinstall the device. Possible IP address conflict The static IP address in the Axis device is used before the DHCP server sets a dynamic address. with another device on the... - Page 19 Heavy network utilization due to poor infrastructure affects the bandwidth. • Viewing on poorly performing client computers lowers perceived performance and affects frame rate. • Running multiple AXIS Camera Application Platform (ACAP) applications simultaneously may affect the frame rate and the general performance.
-
Page 20: Specifications
Specifications Specifications To find the latest version of the product’s datasheet, go to the product page at axis.com and locate Support & Documentation. Front panel indicators and controls When you connect the product to power, the indicator icons and the indicator strip light up for xx seconds. -
Page 21: Buttons
AXIS A82 Network Video Door Station Series Specifications Buttons Control button The control button is used for: • Resetting the product to factory default settings. See Reset to factory default settings on page 17. Connectors HDMI connector Use the microHDMI connector to connect a display or public view monitor. - Page 22 AXIS A82 Network Video Door Station Series Specifications Common 24 V DC For powering auxiliary equipment. Output voltage 24 V DC Note: This pin can only be used as power out. Max current 50 mA Max current 350 mA DC ground...
- Page 23 AXIS A82 Network Video Door Station Series Specifications DC output Can be used to power auxiliary equipment. 12 V DC Note: This pin can only be used as power out. Max load = 50 mA 3–6 Configurable Digital input – Connect to pin 1 to activate, or leave floating...
-
Page 24: Safety Information
AXIS A82 Network Video Door Station Series Safety information Safety information Hazard levels DANGER Indicates a hazardous situation which, if not avoided, will result in death or serious injury. WARNING Indicates a hazardous situation which, if not avoided, could result in death or serious injury. - Page 25 User Manual Ver. M6.3 AXIS A82 Network Video Door Station Series Date: January 2020 © Axis Communications AB, 2019 - 2020 Part No. T10121755...
