Axis 2N IP Verso Installation Manual page 22

2N Part No. 9137422E
Axis Part No. 01402-001
2N Part No. 9155034
Axis Part No. 01257-001
2N TELEKOMUNIKACE a.s., www.2n.cz
®

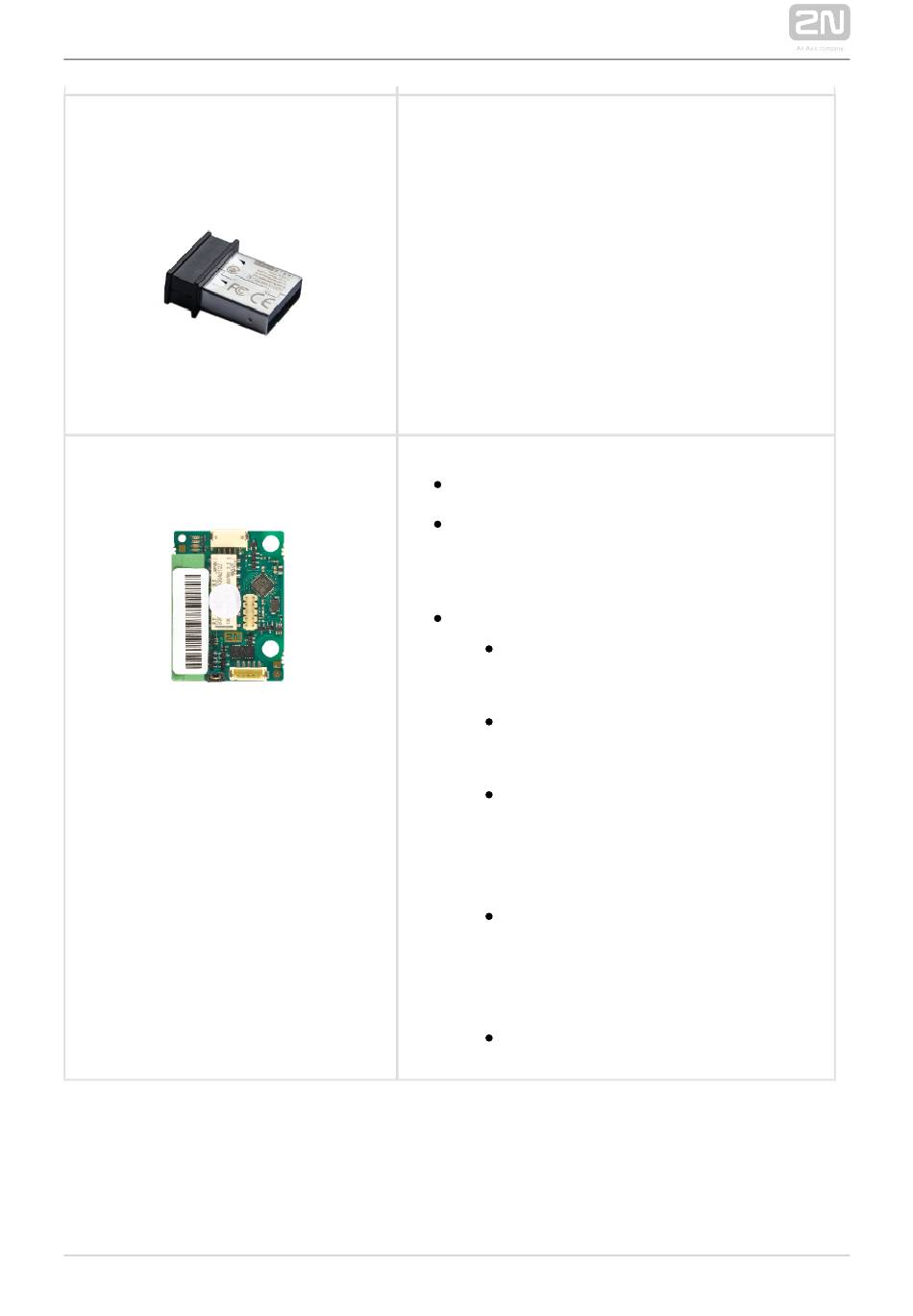

2N IP external Bluetooth reader (USB interface)
An external Bluetooth reader connecting to your
computer via USB.
It can be used to pair new users who want to use their
®
smartphones and 2N
access to controlled areas.
An USB driver is required for the external reader to
work properly.
®
2N IP Verso – I/O
The module provides logical inputs and
outputs for sensor integration or door control.
The module is installed under another module, i.
e. needs no separate position.
Inputs and outputs
RELAY1 – RELAY1 terminals with
accessible 30 V / 1 A AC/DC NO/NC
contact
RELAY2 – RELAY2 terminals with
accessible 30 V / 1 A AC/DC NO/NC
contact
IN1 – IN1 terminals for input in passive/
active mode (−30 V to +30 V DC)
OFF = open OR U
ON = closed contact OR U
IN2 – IN2 terminals for input in passive
/active mode (−30 V to +30 V DC)
OFF = open OR U
ON = closed contact OR U
TAMPER – Tamper switch (9155038)
input
Mobile Key application for
> 1.5 V
IN
< 1.5 V
IN
> 1.5 V
IN
< 1.5 V
IN
22/302
