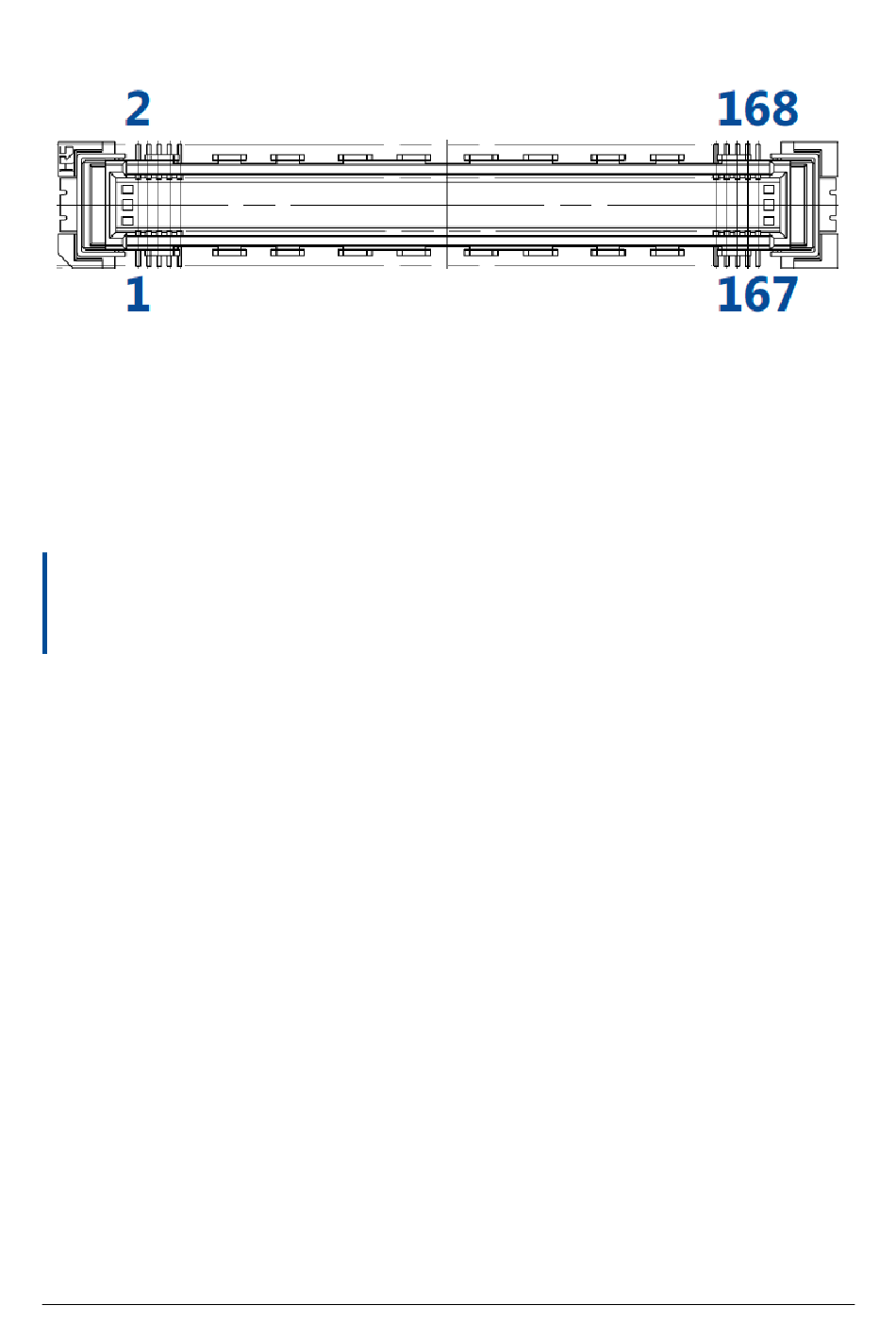

Figure 9: Pin Numbering for the Module Connector

2.8

User I/O

2.8.1

Information on the Mercury+ XU7 SoC module pins can be found in the Enclustra Mercury Master Pinout

[11], and in the additional document Enclustra Module Pin Connection Guidelines [10].

Tip

The pin types on the schematic of the module connector and in the Master Pinout document are for

reference only. On the Mercury+ XU7 SoC module, the connected pins might not have the targeted

functions ﴾such as primary clocks, differential pins, MGT signals, etc﴿.

The naming convention for the user I/Os is:

IO_B<BANK>_L<PAIR_NUMBER>_<SPECIAL_FUNCTION>_<PACKAGE_PIN>_<POLARITY>.

For example, IO_B66_L18_AD2_T11_P is located on pin T11 of I/O bank 66, pair 18, it is a System Monitor

differential auxiliary analog input capable pin and it has positive polarity when used in a differential pair.

The global clock capable pins are marked with "GC" ﴾HP I/O banks﴿ or with "HDGC" ﴾HD I/O banks﴿ in the

signal name. For details on their function and usage, refer to the AMD documentation.

Table

includes information related to the total number of I/Os available in each I/O bank and possible

limitations.

D‐0000‐443‐001

19 /

Version 10, 30.01.2024
