Installation Guide
Caution

This equipment is not suitable for use in locations where children are likely to be present.

The switch has a built-in lithium battery to keep the real-time clock running when external power source
is unavailable. To replace the lithium battery, please contact Ruijie Networks Customer Service Technical
Support to have it replaced with a lithium battery of the same specifications.

Replacement of a battery with an incorrect type may cause fire and explosion, or compromise the safety
features of the device. Replace the battery only with the same or equivalent type.

A battery subjected to extremely high temperature and/or low air pressure may result in an explosion or
the leakage of flammable liquid or gas.

Disposal of a battery into a fire or by crushing or puncturing it can result in an explosion.
1.2.4

Cooling

The operating temperature range for the RG-NBF6002M switch is 0° C to 50° C (32° F to 122° F). Its heat
dissipation design not only ensures the switch's reliability within this temperature range but also takes into
account safety and ease of maintenance. The switch is equipped with fans for forced convection to maintain
optimal performance and reliability in the specified operating conditions.

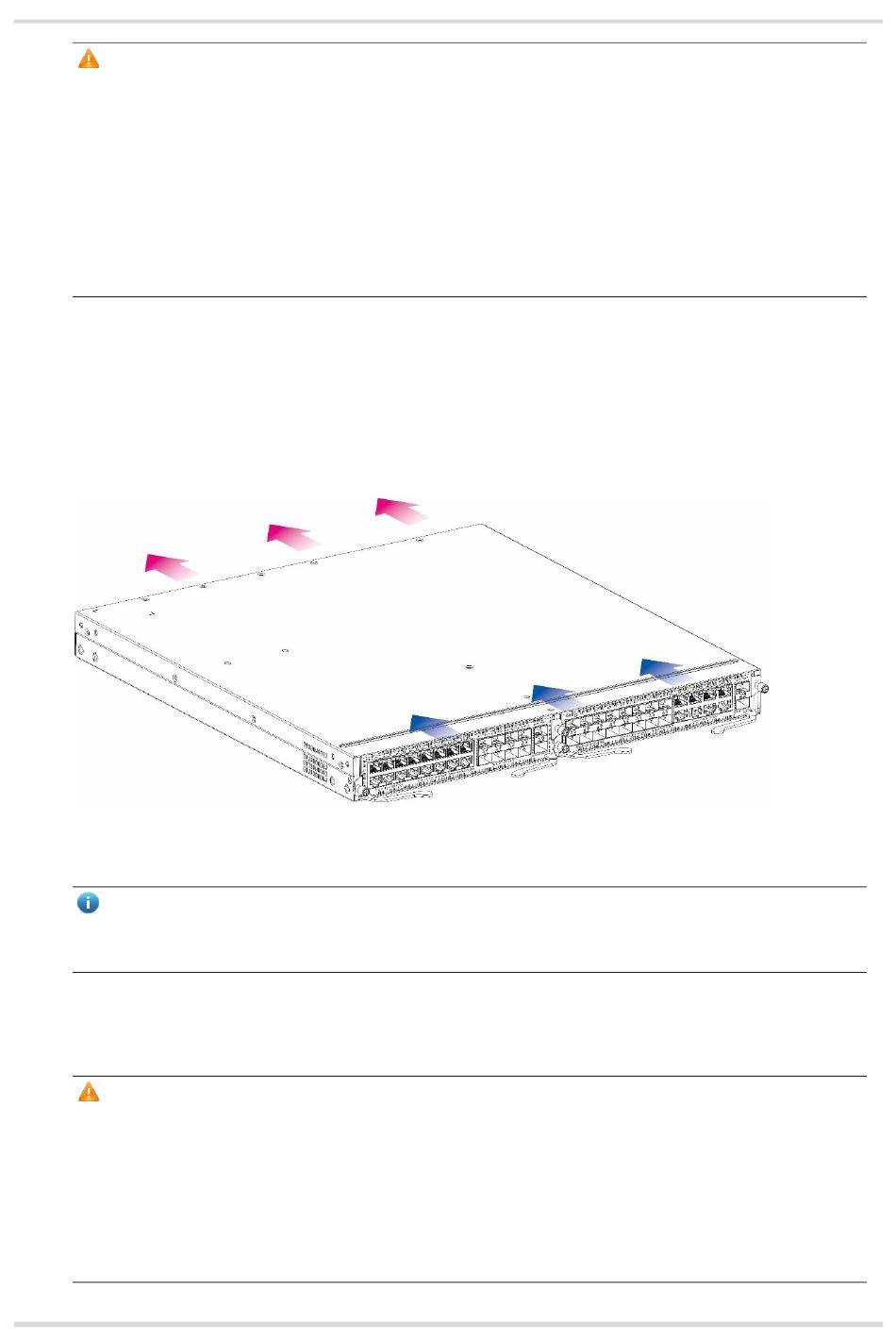

Note

Blue arrows: The air inlet direction of the line card and the power module.

Red arrows: The air outlet direction of the line card and the power module.
Line card/power module: The left, right, and front sides of the module are used for air intake, while the rear side
is used for air exhaust. The fans draw air outward to create convection for heat dissipation.
Caution

Ensure sufficient space around the chassis for air circulation and space for the air intake vent and air
exhaust (at least 10 cm). Ensure that there is adequate space around the chassis to allow for air
circulation, as well as space for the air intake vent and air exhaust, with a minimum clearance of 10 cm
(3.94 in.).

If a line card slot is not used, install a line card faceplate to the slot. If a power module slot is not used,
install a power module faceplate to the slot. Faceplates should be correctly installed to the chassis slots
to ensure proper airflow.
