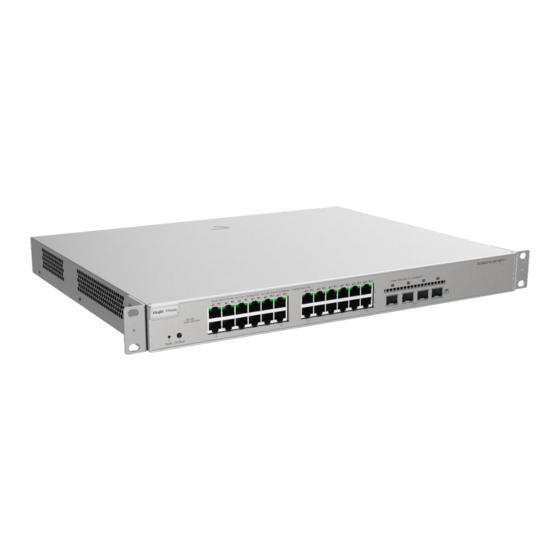

Ruijie Reyee RG-NBS5100-24GT4SFP-P Switch
Hardware Installation and Reference Guide
Document Version: V1.0
Date: November 29, 2022
Copyright © 2022 Ruijie Networks

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Reyee RG-NBS5100-24GT4SFP-P and is the answer not in the manual?

Questions and answers

Summary of Contents for Ruijie Reyee RG-NBS5100-24GT4SFP-P

  • Page 1 Ruijie Reyee RG-NBS5100-24GT4SFP-P Switch Hardware Installation and Reference Guide Document Version: V1.0 Date: November 29, 2022 Copyright © 2022 Ruijie Networks...
  • Page 2 Due to product version upgrades or other reasons, the content of this document will be updated from time to time. Ruijie Networks reserves the right to modify the content of the document without any notice or prompt. This manual is for reference only. Ruijie Networks endeavors to ensure content accuracy and will not shoulder...
  • Page 3: Preface

    Intended Audience This document is intended for:  Network engineers  Technical support and servicing engineers  Network administrators Technical Support  The official website of Ruijie Reyee: https://www.ruijienetworks.com/products/reyee  Technical Support Website: https://www.ruijienetworks.com/support  Case Portal: https://caseportal.ruijienetworks.com  Community: https://community.ruijienetworks.com...
  • Page 4 Note This manual provides the device installation steps, hardware troubleshooting, module technical specifications, and specifications and usage guidelines for cables and connectors. It is intended for the users who have some experience in installing and maintaining network hardware. At the same time, it is assumed that the users are already familiar with the related terms and concepts.
  • Page 5: Table Of Contents

    Contents Preface ..............................I 1 Product Overview ..........................1 1.1 RG-NBS5100-24GT4SFP-P ...................... 1 1.2 Package Contents........................1 1.3 Appearance ..........................2 1.3.1 Front Panel ........................2 1.3.2 Rear Panel ........................3 1.3.3 Ventilation ........................4 1.4 Technical Specifications ......................5 2 Preparing for Installation ........................
  • Page 6 2.2.7 Lightning Protection Requirements ................11 2.2.8 EMI Requirements ....................... 12 2.2.9 Installation Site Requirements ..................12 2.3 Rack Requirements ......................... 12 2.4 Tools ............................13 3 Installing the Switch ........................14 3.1 Installation Flowchart ....................... 14 3.2 Before You Begin ........................15 3.3 Installing the Switch .........................
  • Page 7 6.1 Connectors and Media ......................24 6.2 Mini-GBIC Modules ........................26 6.3 Lightning Protection ......................... 29 6.4 Cabling Recommendations...................... 32 6.4.1 Requirement for the Minimum Bend Radius of an Ethernet Cable ......32 6.4.2 Requirement for the Minimum Bend Radius of a Fiber-Optic Cable ......32 6.4.3 Precautions for Bundling up Cables ................
  • Page 8: Product Overview

    The RG-NBS5100-24GT4SFP-P switch provides 24 10/100/1000Base-T RJ45 Ethernet ports and four 1000 Mbps SFP ports on the front panel, and an AC power input plug on the rear panel. The switch supports routing, Rapid Spanning Tree Protocol (RSTP) and link aggregation. It can be managed through Eweb, Ruijie Cloud and App.
  • Page 9: Appearance

    Hardware Installation and Reference Guide Product Overview Item Quantity M4 x 8 mm Screw Management Software Grounding Cable Power Cord (1.8 m/5.91 ft) Power Cord Retention Clip User Manual Warranty Card Note The above is the general Packet Contents. The actual delivery is subject to the order contract. And please check your goods carefully against the order contract.
  • Page 10: Rear Panel

    System Status Ruijie Cloud, Fast blinking (10 Hz): The switch is upgrading or restarting. Solid green: The switch is operating properly and connected to Ruijie Cloud. Off: The LED indicates the Link/ACK status. LED Mode Solid green: The LED indicates the PoE status.
  • Page 11: Ventilation

    Hardware Installation and Reference Guide Product Overview Table 1-3 Ports and Buttons on the Rear panel Item Description AC Power Input Connect to an external AC power supply. Plug Power Cord Secure the power cord. Retention Clip Secure the grounding lug to ensure connection between the chassis and earth Grounding Screw ground.
  • Page 12: Technical Specifications

    Hardware Installation and Reference Guide Product Overview Technical Specifications Table 1-4 Specifications Model RG-NBS5100-24GT4SFP-P 800 MHz dual-core CPU Flash Memory 256 MB SDRAM DDRIII 512 MB 24 10/100/1000Base-T Ethernet ports with auto negotiation and crossover detection (auto MDI/MDIX crossover) Ports 1 to 24 are PoE-capable Port Four 1000 Mbps SFP ports The switch itself does not transmit optical signals.
  • Page 13 Hardware Installation and Reference Guide Product Overview Operating Temperature 0° C to 50° C (32° F to 122° F) –40º C to 70º C (–40° F to 158° F) Storage Temperature Operating Humidity 10% to 90% RH (non-condensing) Storage Humidity 5% to 90% RH (non-condensing) Lightning Protection (Port 6 kV...
  • Page 14: Preparing For Installation

    Hardware Installation and Reference Guide Preparing for Installation Preparing for Installation Safety Precautions Note ● To avoid personal injury and device damage, carefully read the safety precautions before you install the switch. ● The following safety precautions may not cover all possible dangers. 2.1.1 General Safety Precautions ...
  • Page 15: Static Electricity

    Hardware Installation and Reference Guide Preparing for Installation the case of accidents.  Make sure that the switch is powered off when you cut off the power supply.  Equip the power supply system with a leakage protector (also referred to as “leakage current switch” or “leakage current breaker”) to automate the power cut-off in the case of power leakage or shock.
  • Page 16: Installation Environment Requirements

    Hardware Installation and Reference Guide Preparing for Installation  When an optical transceiver is working, ensure that its port has been connected with an optical fiber or covered by a dust cap to keep out dust and prevent it from burning your eyes. ...
  • Page 17: Cleanliness Requirements

    Hardware Installation and Reference Guide Preparing for Installation Note The working temperature and humidity of the switch are measured at the point that is 1.5 m (59.06 in.) above the floor and 0.4 m (15.75 in.) before the device when there is no protective plate in front or at the back of the switch.
  • Page 18: Grounding Requirements

    Hardware Installation and Reference Guide Preparing for Installation 2.2.6 Grounding Requirements A proper grounding system is the basis for stable and reliable running. It is indispensable for preventing lightning strikes and interference. Carefully check the grounding conditions at the installation site according to the grounding specifications, and complete grounding properly based on the actual situation.
  • Page 19: Emi Requirements

    Hardware Installation and Reference Guide Preparing for Installation the lightning resistance socket and then connect the switch to the lightning resistance socket. This prevents the current of high-voltage lightning from directly passing through the switch along the mains cable. Note ●...
  • Page 20: Tools

    Hardware Installation and Reference Guide Preparing for Installation Figure 2-1 19-Inch Rack (3) The square hole rack post is at least 180 mm (7.09 in.) from the front door, and the front door is at most 25 mm (0.98 in.) thick. This ensures an available clearance of at least 155 mm (6.10 in.). The rack depth, the distance between front and rear doors, is at least 1000 mm (39.37 in.).
  • Page 21: Installing The Switch

    Hardware Installation and Reference Guide Installing the Switch Installing the Switch Caution Before installing the switch, make sure that you have carefully read and met the requirements specified in Chapter 2. Installation Flowchart Install the switch Ground the switch Connect the power supply Connect the cables Bundle the cables Verify the installation...
  • Page 22: Before You Begin

    Hardware Installation and Reference Guide Installing the Switch Before You Begin  The installation site provides sufficient space for heat dissipation.  The installation site meets the temperature and humidity requirements of the switch.  The power supply is available in the installation site and meets requirement for current. ...
  • Page 23 Hardware Installation and Reference Guide Installing the Switch Figure 3-1 Securing Mounting Brackets Step 2: Use M6 screws and cage nuts to secure the other end of the mounting brackets to square hole rack posts. Figure 3-2 Installing Cage Nuts and Screws...
  • Page 24: Installing The Switch On A Workbench

    Hardware Installation and Reference Guide Installing the Switch Figure 3-3 Tightening Screws 3.3.2 Installing the Switch on a Workbench Step 1: Attach the four rubber feet to the four corners at the bottom of the switch. Figure 3-4 Attaching Rubber Feet to the Bottom of the Switch Step 2: Place the switch on a workbench and ensure adequate airflow around the switch.
  • Page 25: Connecting The Switch To Earth Ground

    Hardware Installation and Reference Guide Installing the Switch Figure 3-5 Installing the Switch on a Workbench Note The location where the switch is installed must be subject to movement restrictions. Connecting the Switch to Earth Ground The switch has a grounding stud on the rear panel. Connect the grounding stud to the grounding lug of the rack and then connect the grounding lug of the rack to the ground buss bar of the machine room.
  • Page 26: Bundling Cables

    Hardware Installation and Reference Guide Installing the Switch Precautions  Make sure that the models of optical transceivers and optical cables match with SFP ports. The transmitting port on the local device should be connected to the receiving port on the peer device and vice versa. ...
  • Page 27: Verifying Operating Status

    Hardware Installation and Reference Guide Verifying Operating Status Verifying Operating Status Setting up Configuration Environment Connect the PC to the management port of the switch with an Ethernet cable. Figure 4-1 Configuring Environment Connecting an Ethernet Cable Plug the crystal head of the Ethernet cable into the network port of the PC. Connect the RJ-45 end to any port of the switch.
  • Page 28 Hardware Installation and Reference Guide Verifying Operating Status  The main program is loaded properly.  Service ports can forward data properly.
  • Page 29: Common Troubleshooting

    The device is not working properly Check the device installation Check the power connection Check the LEDs on the device Check the cable connection Contact Technical Support of Ruijie Networks Common Faults Symptom Possible Cause Suggested Action Press and hold the Reset button for over five...
  • Page 30 Hardware Installation and Reference Guide Common Troubleshooting The port is specially configured mode as the interconnected switch. and does not use the same work mode as the interconnected switch. The receiving and transmitting ends are connected incorrectly. Exchange the transmission and receiving The types of the interconnected ends of the optical fiber.
  • Page 31: Appendix

    Hardware Installation and Reference Guide Appendix Appendix Connectors and Media  1000BASE-T/100BASE-TX/10BASE-T Port 1000BASE-T/100BASE-TX/10BASE-T is a 10/100/1000 Mbps port that supports auto negotiation and auto MDI/MDIX crossover. Compliant with IEEE802.3ab, 1000BASE-T requires Category 5(5e) 100-ohm UTP or STP. SPT is recommended.
  • Page 32 Hardware Installation and Reference Guide Appendix The following figure shows feasible connections of straight-through and crossover twisted-pair cables for 100BASE-TX/10BASE-T. Figure 6-2 100BASE-TX/10BASE-T Twisted Pair Connections  Fiber-Optic Cable Connection Choose single mode or multi-mode fibers according to the module types. Figure 6-3 Fiber-Optic Cable Connection...
  • Page 33: Mini-Gbic Modules

    Besides, the Mini-GBIC-GT modules are also supported. The following models and technical specifications of some SFP modules are listed for your reference. For details about the technical specifications, see Ruijie Transceiver Installation and Reference Guide. Table 6-2...
  • Page 34 Hardware Installation and Reference Guide Appendix MINI-GBIC-ZX80- 1550 SM1550 MINI-GBIC-ZX100- 1550 SM1550 GE-SFP-SX -9.5 GE-SFP-LX 1310 -9.5 SFP-MM850 -9.5 SFP-SM1310 1310 -9.5 Table 6-3 1000Base-T SFP Copper Module DDM Supported Standard 1000Base-TSFP Module (Yes/No) 1000Base-T Mini-GBIC-GT Table 6-4 SFP Cabling Specifications Max Cable SFP Model Connector...
  • Page 35 Hardware Installation and Reference Guide Appendix MINI-GBIC-ZX50-SM1550 9/125 50 km MINI-GBIC-ZX80-SM1550 9/125 80 km MINI-GBIC-ZX100-SM1550 9/125 100 km 62.5/125 275 m GE-SFP-SX 50/125 550 m GE-SFP-LX 9/125 10 km Mini-GBIC-GT RJ45 cable Cat 5 (or better) twisted-pair cable 100 m Caution ●...
  • Page 36: Lightning Protection

    Hardware Installation and Reference Guide Appendix Lightning Protection  Installing an AC Power Arrester (Lightning Resistance Socket) When an AC power cord is introduced from outdoors and directly connected to the power port of the switch, the AC power port must be connected to an external lightning protection power strip to protect the switch against lightning strokes.
  • Page 37 Hardware Installation and Reference Guide Appendix rectify the polarity of the connection. If the indicator is still red, the arrester's PE terminal is not grounded.  Installing the Ethernet Port Arrester Connect an Ethernet port arrester to the switch to prevent the damage by lightning before connecting an outdoor network cable to the switch.
  • Page 38 Hardware Installation and Reference Guide Appendix after grounding. Incomplete arrester installation. If there is more than one port connected to the peer device on the switch, arresters need to be installed on all connection ports for the purpose of lightning protection.
  • Page 39: Cabling Recommendations

    Hardware Installation and Reference Guide Appendix Cabling Recommendations When the switch is installed in a standard 19-inch rack, secure the cables around the cable management brackets. Adopt top cabling or bottom cabling according to the actual situation in the machine room. All adapted connectors should be placed at the bottom of the rack in an orderly manner instead of outside the rack that is easy to touch.
  • Page 40 Hardware Installation and Reference Guide Appendix Figure 6-6 Binding Cables (1)  Cables of different types (such as power cords, signal cables, and grounding cables) should be separated in cabling and bundling. Mixed bundling is disallowed. When they are close to each other, you are advised to adopt crossover cabling.
  • Page 41 Hardware Installation and Reference Guide Appendix stress may be generated on the cables and causes the wires inside to break. Figure 6-8 Binding Cables (3)  Cables not to be assembled or remaining parts of cables should be folded and placed in a proper position of the rack or cable trough.
  • Page 42 Hardware Installation and Reference Guide Appendix  Hard power cords should be fastened in the terminal connection area to prevent stress on terminal connection and cable.  Do not use self-tapping screws to fasten terminals.  Power cords of the same type and in the same cabling direction should be bundled up into cable bunches, with cables in cable bunches clean and straight.
  • Page 43: Site Selection

    Hardware Installation and Reference Guide Appendix Site Selection  The machine room should be at least 5 km (3.11 miles) away from heavy pollution sources, such as the smelter works, coal mine, and thermal power plant. The machine room should be at least 3.7 km (2.30 miles) away from medium pollution sources, such as the chemical factory, rubber factory, and electroplating factory.
