About the RG-NBF6002M

The Reyee e-Lighten Solution is a network product solution based on existing Ethernet technology integrating
PON technology and passive optical splitting features. The components include:
e-Lighten core switch (OLT): As a core switch, it has the Layer 3 data forwarding capability. It provides PON
ports that can be connected to e-Lighten access switches and e-Lighten access points (APs) to achieve data
interconnection.
e-Lighten access switch (ONU): As an access device, the e-Lighten access switch is connected to the PON
port in the uplink direction. It can send data to the core switch through the passive optical splitter.
e-Lighten AP (ONU): An e-Lighten AP is connected to the PON port in the uplink direction, and can send
wireless users' Internet access data to the core switch through the passive optical splitter.
Passive optical distribution network (ODN): The ODN, consisting of passive optical splitters, is connected to
the core switch in the uplink direction and to e-Lighten access switches or APs in the downlink direction.

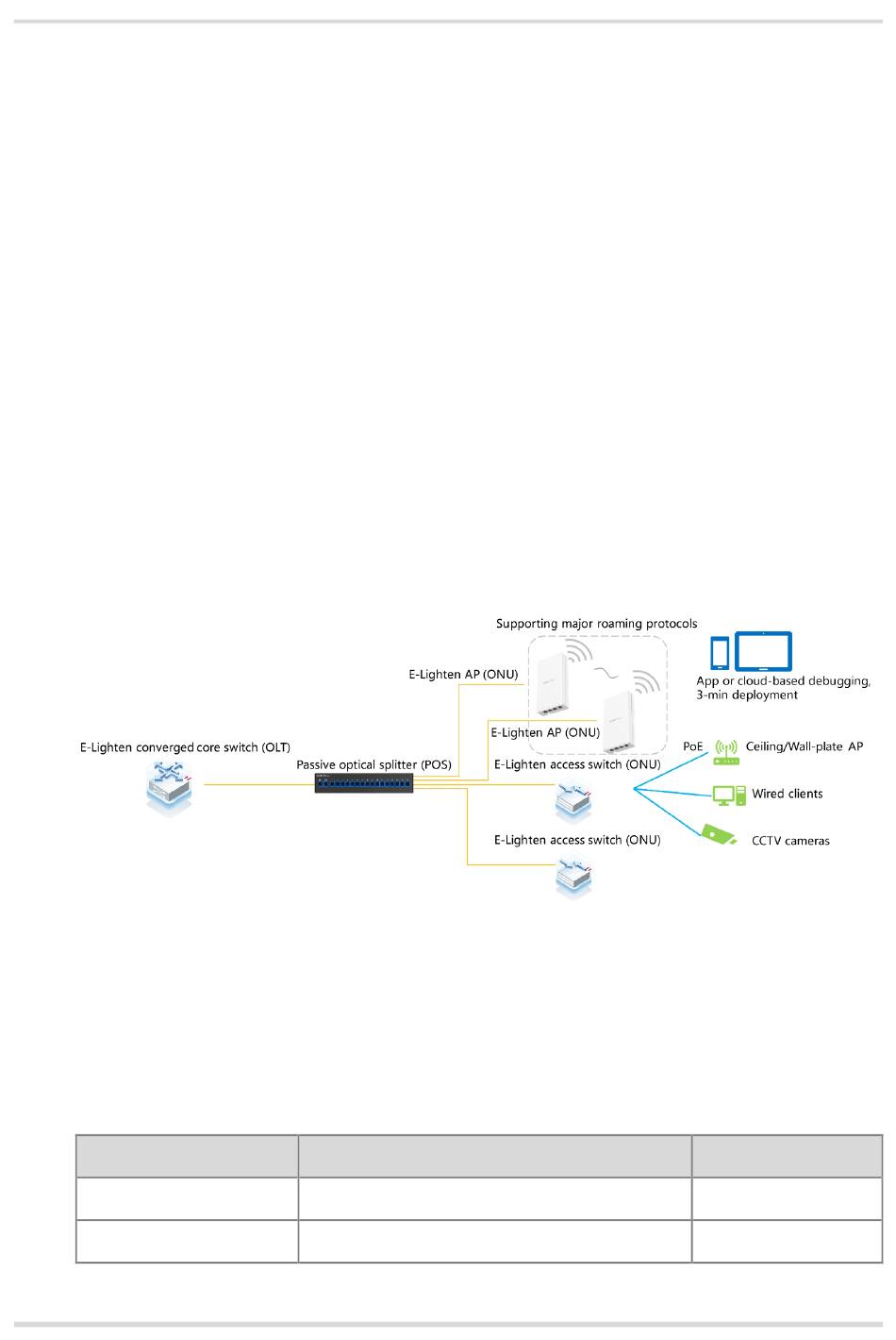

Figure 1-1
Topology Diagram of Reyee e-Lighten Solution
The RG-NBF6002M switch, a core switch (OLT) launched by Ruijie Reyee, is designed for passive all-optical
local area networks (LANs). It features an innovative management architecture and is compact, fitting two line
cards within a 1U chassis. This switch is capable of supporting a hybrid setup, combining passive optical network
(PON) line cards with traditional Ethernet line cards. Powered by Ruijie Reyee's proprietary operating system,
the switch is versatile for various applications within small to medium-sized business settings. It is well-suited to
meet the demands of ELV campus networks, office spaces, hotels, residential areas, and small to medium-sized
enterprises.
Model
RG-NBF6002M
MF6000M-24GT2XS
Description
Chassis, purchased separately
Line card, purchased separately
1
Overview
Remarks
Mandatory
One or two line cards
