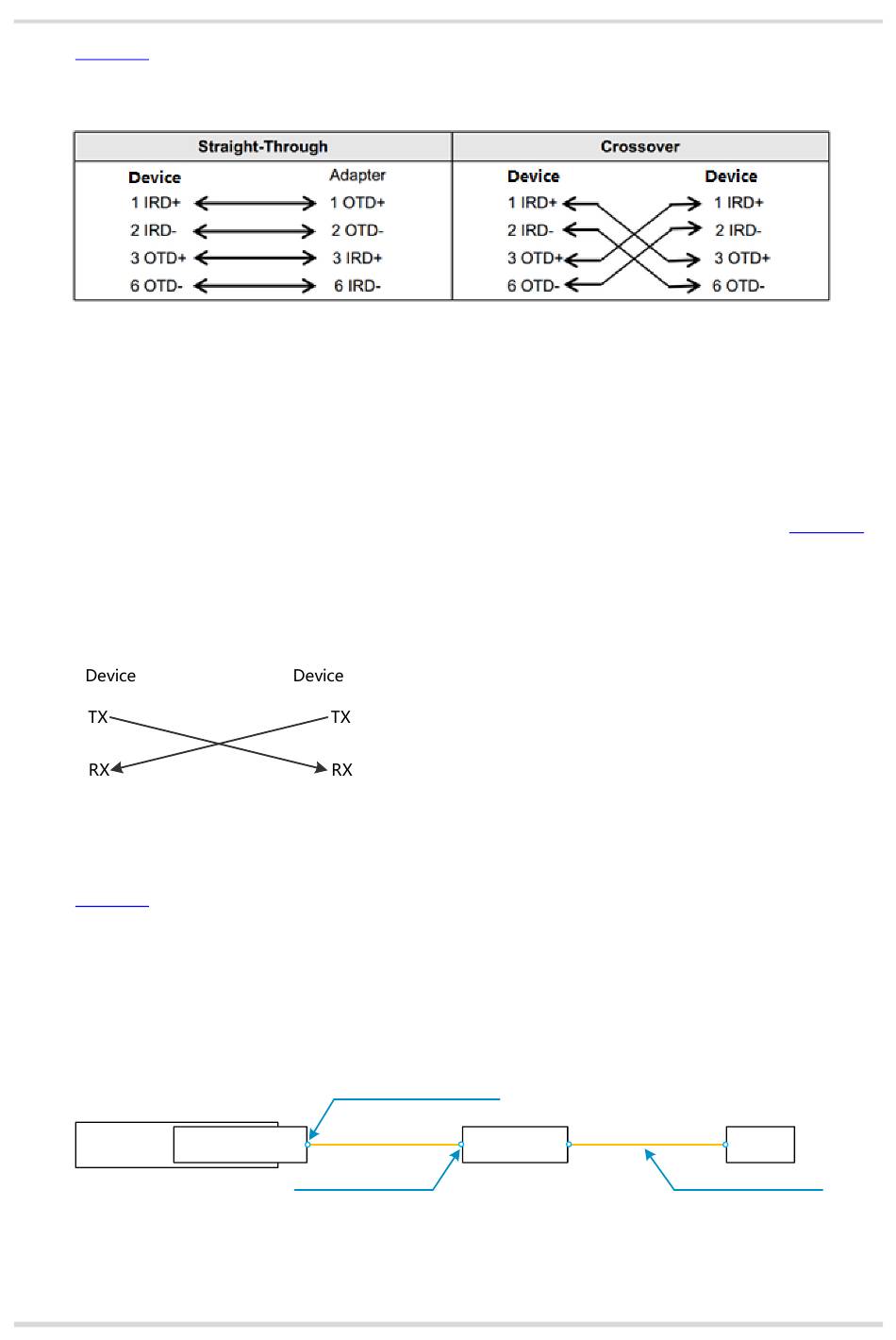

Figure 6-2 shows the connection of straight-through and crossover cables for 100BASE-TX/10BASE-T ports.
Figure 6-2 100BASE-TX/10BASE-T Twisted Pair Connections
6.1.2

SFP Ports and SFP+ Ports

SFP ports and SFP+ ports require optical transceivers or Ethernet transceivers.

Optical transceivers for SFP and SFP+ ports use LC connectors and connect to the peer end via an optical
cable.

SFP Ethernet transceivers use RJ45 connectors and connect to the remote end via an Ethernet cable.
Select either single-mode or multi-mode optical cables depending on the optical transceiver type.
shows the optical cable connection. Note that the TX on the local end should connect to the RX on the peer end,
and the RX on the local end should connect to the TX on the peer end.
Figure 6-3 Optical Cable Connections
6.1.3

PON Ports and SC Ports

Figure 6-4 shows the PON ports and SC ports on equipment in Ruijie Reyee e-Lighten Optical Solution.

PON ports on the OLT require e-Lighten optical transceivers with SC connectors, which are connected to an
optical splitter using single-mode pigtails.

SC ports on optical splitters and ONUs use SC connectors, and are interconnected using single-mode pigtails.
Figure 6-4 PON Port and SC Port Connections
OLT PON Port
optical transceiver
Connector Type：SC
e-Lighten
Connector Type：SC
SC Port
Optical Splitter
SC Port
34
Appendix
Figure 6-3
SC Port
ONU
Single-mode fiber pigtail
