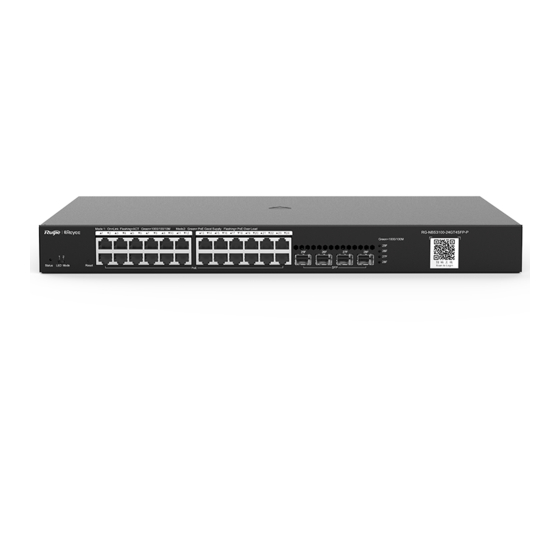

Ruijie RG-NBS Series Switches
Web-Based Configuration Guide

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RG-NBS Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Ruijie RG-NBS Series

Summary of Contents for Ruijie RG-NBS Series

  • Page 1 Ruijie RG-NBS Series Switches Web-Based Configuration Guide...
  • Page 2 This document is provided “as is”. The contents of this document are subject to change without any notice. Please obtain the latest information through the Ruijie Networks website. Ruijie Networks endeavors to ensure content accuracy and will not shoulder any responsibility for losses and damages caused due to content omissions, inaccuracies or errors.
  • Page 3 Thank you for using our products. Audience This manual is intended for:  Network engineers  Technical support and servicing engineers  Network administrators Obtaining Technical Assistance  Ruijie Networks Website: https://www.ruijienetworks.com/  Technical Support Website: https://ruijienetworks.com/support  Case Portal: https://caseportal.ruijienetworks.com  Community: https://community.ruijienetworks.com ...
  • Page 4 This manual uses the following conventions: Convention Description boldface font Commands, command options, and keywords are in boldface. italic font Arguments for which you supply values are in italics. Elements in square brackets are optional. { x | y | z } Alternative keywords are grouped in braces and separated by vertical bars.
  • Page 5 Configuration Guide Overview 1 Overview eWeb is a Web-based network management system that manages or configures devices. You can access eWeb via browsers such as Google Chrome. Web-based management involves the Web server and Web client. The Web server is integrated in a device, and is used to receive and process requests from the client, and return processing results to the client.

  • Page 6: Configuration Guide

    Configuration Guide Configuration Guide 2 Configuration Guide 2.1 Configuration Preparation 2.1.1 Scenario As shown in the figure below, you can access the eWeb management system of an access or aggregation switch via a PC browser to manage and configure the device. Figure 2-1-1 Network Topology Note: The device enclosed in the red frame in the preceding figure is the accessed switch.
  • Page 7 Obtain an IP address automatically. Server requirements:  You can log into the eWeb management system through a LAN port or from Ruijie Cloud on an external network.  The Web service (enabled by default) needs to be enabled on the device.
  • Page 8 Configuration Guide Configuration Guide Figure 2-2-1 Configuration Initialization (Wizard) Click Create Network & Connect for the device to automatically deliver and initialize device configuration. Click Exit in the upper right corner. A prompt is displayed and the device can skip the wizard to enter the eWeb management system of the device.
  • Page 9 Configuration Guide Configuration Guide Figure 2-3-2 Edit Panel  Panel description The panel displays the actual port layout of the switch, including the display panel and edit panel. The display panel shows various statuses of the ports. The edit panel allows you to click and drag to select one or more ports, select all ports, inverse ports and deselect ports.
  • Page 10 Configuration Guide Configuration Guide Ports Sets basic port information, link aggregation, port mirroring, port rate limit, management IP address, and PoE information. DHCP Snooping Sets DHCP snooping. Storm Control Controls storms. Sets and applies ACLs. Port Protection Sets port protection to isolate ports. Configures STP global settings, STP ports and RLDP.

  • Page 11: Top Navigation Bar

    Move the mouse to the device name area to display the basic information of the login device. Move the mouse to Ruijie Cloud to display the link to enter Ruijie Cloud. Move the mouse to Download App to display the QR code for downloading the App. You can scan the QR code to download the App for mobile configuration.

  • Page 12: Work Mode

    Configuration Guide Configuration Guide Enter the correct management password of the device to reenter the configuration and management page. 2.3.2 Side Navigation Pane The side navigation pane displays the function menu of the device (the menu items vary with the device model, and the actual functions prevail).
  • Page 13 Configuration Guide Configuration Guide Figure 2-4-1 Mode Switching  Mode switchover Click in Work Mode, and click the Ad Hoc Network Discovery button on the displayed dialog box. Tips: The page will be refreshed after the work mode is switched over. The system menu varies with the work mode, as shown in the figure below: Figure 2-4-2 Ad Hoc Network Discovery Mode...
  • Page 14 Configuration Guide Configuration Guide Figure 2-4-3 Standalone Mode 1-10...
  • Page 15 Configuration Guide eWeb Configuration (Standalone Mode) 3 eWeb Configuration (Standalone Mode) Functions are the same in different work modes. This chapter describes the Web configuration process of the switch in the standalone mode as an example. 3.1 Home The Home module displays the basic information about the device and the switch ports, as shown in the figure below: Figure 3-1-1 Home The Basic Info area allows you to configure the device name and the management IP address, and switch ’over the work mode (described in the section Work Mode).
  • Page 16 Configuration Guide eWeb Configuration (Standalone Mode) Figure 3-1-2 Port Icons Move the mouse to the port icon on the port panel to display more information, as shown in the figure below: Figure 3-1-3 Port Panel Details Click Refresh above the port panel to obtain the latest port traffic and status information. 1-12...
  • Page 17 Configuration Guide eWeb Configuration (Standalone Mode) 3.2 VLAN The VLAN module includes VLAN List and Port List (ports bound to VLANs). Figure 3-2-1 VLAN Click next to VLAN List or next to Port List to fold or expand the list. 1-13...
  • Page 18 Configuration Guide eWeb Configuration (Standalone Mode) 3.2.1 VLAN List Figure 3-2-2 VLAN List  Batch adding VLANs/Adding a single VLAN Click Batch Add. In the displayed dialog box, enter VLANs or a VLAN range (separate multiple VLANs by using commas), and click OK.
  • Page 19 Configuration Guide eWeb Configuration (Standalone Mode) 3.2.2 Port List The Port List area allows you to configure the relationships between ports and VLANs. You can configure ports in batches or a single port. Figure 3-2-3 Port List  Batch editing ports/Editing a single port Click Batch Edit.
  • Page 20 Configuration Guide eWeb Configuration (Standalone Mode) Select ports on the port panel and set the port mode to Access Port or Trunk Port. In Trunk Port mode, configure permitted VLAN ranges (separated by commas ","), set VLAN IDs for the ports, and click OK. The port list and VLAN list will be updated correspondingly.
  • Page 21 Configuration Guide eWeb Configuration (Standalone Mode) 3.3 Monitor 3.3.1 Port Flow The Port Flow module displays port flow data. Figure 3-3-1 Port Flow  Batch Clearing Data/Clearing All Data Click Batch Clear or Clear All to clear statistics of port traffic and other data. Tips: Aggregate port flow will also be displayed.

  • Page 22: Static Mac

    Configuration Guide eWeb Configuration (Standalone Mode) Figure 3-3-2 MAC List  Search Select the search type (Search by MAC, Search by VLAN, or Search by Port), enter the term to be searched for, and click Search to filter MAC addresses that meet the search conditions. Tips: The MAC address capacity varies with the device.
  • Page 23 Configuration Guide eWeb Configuration (Standalone Mode) Figure 3-3-3 Static MAC  Adding a static address Click Add. In the displayed dialog box, enter the MAC address and VLAN, select a port, and click OK. The message "Add operation succeeded." is displayed, and the MAC list is updated. ...

  • Page 24: Mac Filter

    Configuration Guide eWeb Configuration (Standalone Mode) Figure 3-3-4 Dynamic MAC  Clear Select the clear type (Clear by MAC, Clear by Port, or Clear by VLAN), enter a search term, and click Clear to clear MAC addresses that meet the clear conditions. ...

  • Page 25: Aging Time

    Configuration Guide eWeb Configuration (Standalone Mode) Figure 3-3-5 MAC Filter  Adding a MAC address to be filtered Click Add. In the displayed dialog box, enter the MAC address and VLAN, and click OK. The message "Add operation succeeded." is displayed and the MAC list is updated. ...
  • Page 26 Configuration Guide eWeb Configuration (Standalone Mode) Figure 3-3-6 Aging Time  Configuring the aging time Enter a valid aging time, and click Save. The message "Operation succeeded." is displayed, indicating that the aging time of MAC addresses learned by the device is successfully configured. Tips: The aging time of the device ranges from 10 to 630 seconds.
  • Page 27 Configuration Guide eWeb Configuration (Standalone Mode) Figure 3-3-7 ARP List 1-23...
  • Page 28 Configuration Guide eWeb Configuration (Standalone Mode) 3.4 L3 Interfaces 3.4.1 L3 Interfaces The L3 Interfaces module allows you to configure layer-3 interfaces. There are three types of layer-3 interfaces available:  Routed Port  A physical port of a layer-3 device can be configured as a routed port. A routed port works as an access port and does not support layer-2 switching.
  • Page 29 Configuration Guide eWeb Configuration (Standalone Mode) Select SVI from the Port Type dropdown list. Select a protocol. If you select Static IP Address, you can set the IP address and the subnet mask manually (optional). If you select DHCP, the SVI will obtain a DHCP-assigned IP address. If you want to configure an SVI for a VLAN, please make sure that the VLAN is already created.
  • Page 30 Configuration Guide eWeb Configuration (Standalone Mode) Select Routed Port from the Port Type dropdown list. Select a protocol. If you select Static IP Address, you can set the IP address and the subnet mask manually (optional). If you select DHCP, the routed port will obtain a DHCP-assigned IP address. Select a physical port from the panel.

  • Page 31: Static Routing

    Configuration Guide eWeb Configuration (Standalone Mode) Select Routed Port from the Port Type dropdown list. Select a protocol. If you select Static IP Address, you can set the IP address and the subnet mask manually (optional). If you select DHCP, the routed port will obtain a DHCP-assigned IP address. Set an aggregate port and select its member ports from the panel.
  • Page 32 Configuration Guide eWeb Configuration (Standalone Mode) 3.4.2.1 Add a Generic Static Route Figure 3-4-6 Adding a Generic Static Route 1-28...
  • Page 33 Configuration Guide eWeb Configuration (Standalone Mode) Specify a destination IP address and a subnet mask. Select an outbound interface from the Outbound Interface dropdown list. Set a next hop address. If the outbound interface is enabled with PPPoE, the next hop address is not required. Click Save.
  • Page 34 Configuration Guide eWeb Configuration (Standalone Mode) Specify a destination IP address and a subnet mask. Select Null from the Outbound Interface dropdown list. Click Save. The message "Operation succeeded." is displayed. 3.4.3 ARP List The ARP List module displays all static and dynamic ARP entries. Figure 3-4-9 ARP List 1-30...

  • Page 35: Basic Settings

    Configuration Guide eWeb Configuration (Standalone Mode) 3.5 Ports The Ports module allows you to set basic port information, port aggregation, port mirroring, port rate limit, management IP address, and PoE. 3.5.1 Basic Settings The Basic Settings module allows you to configure the port status, duplex mode, flow control and physical settings. 1-31...
  • Page 36 Configuration Guide eWeb Configuration (Standalone Mode) Figure 3-5-1 Basic Settings  Batch editing ports/Editing a single port Click Batch Edit. In the displayed dialog box, select the target port, set the port status, speed, and mode, and click OK. Click Edit in the Action column. In the displayed dialog box, select the target port, set the port status, speed, and mode, and click OK.
  • Page 37 Configuration Guide eWeb Configuration (Standalone Mode) Figure 3-5-2 Physical Settings  Batch editing ports/Editing a single port Click Batch Edit. In the displayed dialog box, select the target port, and set the EEE, port mode, and port description, MTU value, and click OK. Click Edit in the Action column.
  • Page 38 Configuration Guide eWeb Configuration (Standalone Mode) Figure 3-5-3 Aggregate Ports  Global Settings Select a value from the Load Balance Algorithm drop-down list box, and click Save.  Adding an aggregate port Enter an aggregate port ID, select member ports (ports that have been added to another aggregate port cannot be selected), and click Save.

  • Page 39: Port Mirroring

    Configuration Guide eWeb Configuration (Standalone Mode) 3.5.3 Port Mirroring The Port Mirroring module allows you to configure port mirroring. A maximum of four port mirroring entries are supported. Figure 3-5-4 Port Mirroring  Editing a port mirroring entry Click Edit in the Action column. In the displayed dialog box, set the source port, destination port, and monitoring type, and click OK.

  • Page 40: Rate Limiting

    Configuration Guide eWeb Configuration (Standalone Mode) 3.5.4 Rate Limiting The Rate Limiting module allows you to configure a port rate limit. Figure 3-5-5 Rate Limiting  Batch editing the rate limit of ports/Editing the rate limit of a single port Click Batch Edit.
  • Page 41 Configuration Guide eWeb Configuration (Standalone Mode) 3.5.5 MGMT IP The MGMT IP module allows you to configure the device's management IP address. Figure 3-5-6 MGMT IP  Configuring an IP address Configure the management VLAN, IP address, subnet mask, default gateway, and DNS server, and click Submit. A message indicating successful configuration is then displayed.
  • Page 42 Configuration Guide eWeb Configuration (Standalone Mode) 3.5.6 PoE The PoE module displays the PoE overview and allows you to specify PoE settings. The PoE module is available only for devices that support the PoE function. Figure 3-5-7 PoE The PoE Overview area displays the PoE information of the entire device. ...

  • Page 43: Dhcp Snooping

    Configuration Guide eWeb Configuration (Standalone Mode) Figure 3-5-8 Configuring PoE Ports  Batch editing PoE ports/Editing a single PoE port Click Edit in the Action column or Batch Edit in Port List. In the displayed dialog box, set the PoE port attributes, and click ...

  • Page 44: Storm Control

    Configuration Guide eWeb Configuration (Standalone Mode) Figure 3-6-1 DHCP Snooping  Enabling or disabling DHCP snooping Click the DHCP Snooping toggle to enable or disable DHCP snooping. After DHCP snooping is enabled, set trusted ports, and click Save. Tips: The port connected to the DHCP server is configured as the trusted port generally. Enabling DHCP snooping can filter DHCP packets.
  • Page 45 Configuration Guide eWeb Configuration (Standalone Mode) Figure 3-6-2 Storm Control  Batch adding ports/Adding a single port for storm control Click Batch Edit. In the displayed dialog box, select ports, enter the broadcast, unknown unicast, and unknown multicast rate limits, and click OK. A message "Operation succeeded." is displayed, and the port list is updated. Click Edit in the Action column of Port List.
  • Page 46 Configuration Guide eWeb Configuration (Standalone Mode) Figure 3-6-3 ACL List  Adding an ACL Click Add. In the displayed dialog box, select the ACL type, enter the ACL name, and click OK.  Batching deleting ACLs/Deleting a single ACL Select ACLs in the ACL list, and click Delete Selected. Alternatively, click Delete in the Action column. In the displayed confirmation box, click OK.

  • Page 47: Port Protection

    Configuration Guide eWeb Configuration (Standalone Mode) Figure 3-6-4 ACL Binding  Binding ACLs Click Batch Add. In the displayed dialog box, select the target MAC-based ACL and IP-based ACL and ports, and click OK.  Batch unbinding ACLs/Unbinding a single ACL Select multiple entries in ACL Binding, and click Unbind Selected.
  • Page 48 Configuration Guide eWeb Configuration (Standalone Mode) Figure 3-6-5 Port Protection  Enabling or disabling port protection Click Batch Edit. In the displayed dialog box, enable or disable port protection and select ports. Alternatively, click the toggle button in the Action column. In the displayed confirmation box, click OK. 3.7 Advanced The Advanced module includes STP and LLDP.
  • Page 49 Configuration Guide eWeb Configuration (Standalone Mode) Figure 3-7-1 STP Settings  Global STP settings Enable STP, set global STP parameters, and click Save. Figure 3-7-2 STP Management  STP management 1-45...
  • Page 50 Configuration Guide eWeb Configuration (Standalone Mode) Click Batch Edit, select ports, and configure parameters. Alternatively, click Edit in the Action column, configure parameters, and click OK. Tips: Enabling the STP or changing the STP mode will initiate a new session. Do not refresh the page during the configuration.
  • Page 51 Configuration Guide eWeb Configuration (Standalone Mode) Figure 3-7-4 LLDP Management  LLDP management Click Batch Edit, select ports, and configure parameters. Alternatively, click Edit in the Action column, configure parameters, and click OK. Figure 3-7-5 LLDP Info  LLDP information 1-47...
  • Page 52 Configuration Guide eWeb Configuration (Standalone Mode) The LLDP Info page displays information about the current device and neighbor information of each port. Click a port name to display neighbor details of this port. Tips: LLDP can be used to display the topological connection status, for example, the numbers of switches, MED devices, and NMS devices in the network topology.
  • Page 53 Configuration Guide eWeb Configuration (Standalone Mode)  RLDP management Click Batch Edit, select ports, and configure parameters. Alternatively, click Edit in the Action column, configure parameters, and click OK. Figure 3-7-8 RLDP Information  RLDP information 1-49...

  • Page 54: Network Tools

    Configuration Guide eWeb Configuration (Standalone Mode) The RLDP Info page displays information about the current device and neighbor information of each port. Click a port name to display neighbor details of this port. 3.8 Diagnostics 3.8.1 Network Tools The Network Tools module provides the following network tools to detect the network status: Ping, Traceroute, and DNS Lookup.
  • Page 55 Configuration Guide eWeb Configuration (Standalone Mode) Figure 3-8-2 Traceroute  Traceroute test Enter the destination IP address and other information, and click Start. The test result is displayed in the text box. DNS lookup test and result Figure 3-8-3 DNS Lookup 1-51...

  • Page 56: Cable Diagnostics

    Configuration Guide eWeb Configuration (Standalone Mode)  DNS lookup test Enter the destination IP address, and click Start. The test result is displayed in the text box. 3.8.2 Fault Collection The Fault Collection module allows you to collect faults by one click and download the fault information to the local device. Figure 3-8-4 Fault Collection ...

  • Page 57: System Time

    Configuration Guide eWeb Configuration (Standalone Mode) Figure 3-8-5 Cable Diagnostics  Cable diagnostics Select the target port on the port panel, and click Diagnose. The device returns the diagnostics result after a period of time and displays it in the result list. Tips: Only copper ports support cable diagnostics while fiber ports and aggregate ports do not.

  • Page 58: Login Password

    Configuration Guide eWeb Configuration (Standalone Mode) Figure 3-9-1 System Time  Time settings Select a time zone and set at least one NTP server, and click Save. Tips: The device has no RTC module and does not save the time after restart. 3.9.2 Login Password The Login Password page allows you to set the device's login password.

  • Page 59: Session Timeout

    Configuration Guide eWeb Configuration (Standalone Mode) Figure 3-9-2 Login Password  Setting the password Enter the old and new passwords, and click Save. (Please keep the login password carefully.) 3.9.3 Session Timeout The Session Timeout page allows you to set the session timeout period for login to the eWeb management system. 1-55...
  • Page 60 Configuration Guide eWeb Configuration (Standalone Mode) Figure 3-9-3 Session Timeout  Setting the session timeout period Enter the timeout period in seconds and click Save. 3.9.4 Setup The Setup module includes Back & Import and Restore. 3.9.4.1 Backup & Import The Backup &...
  • Page 61 Configuration Guide eWeb Configuration (Standalone Mode) Figure 3-9-4 Backup & Import 1-57...
  • Page 62 Configuration Guide eWeb Configuration (Standalone Mode) 3.9.4.2 Restore The Restore page allows you to restore the device to factory settings. Figure 3-9-5 Restore  Restoring factory settings Please exercise caution if you want to restore the factory settings. Figure 3-9-6 Confirm Restore 1-58...

  • Page 63: Local Upgrade

    Configuration Guide eWeb Configuration (Standalone Mode) Click OK to restore all default values. This function is recommended when the network configuration is incorrect or the network environment is changed. If you fail to access the eWeb management system, check whether the endpoint is connected to the device by referring to Configuration Preparation.

  • Page 64: Online Upgrade

    Configuration Guide eWeb Configuration (Standalone Mode) Figure 3-9-7 Local Upgrade  Local upgrade Click Browse to select an upgrade package, and click Upload. After uploading and checking the package, the device displays the upgrade package information and a prompt asking for upgrade confirmation. Click OK to start the upgrade. Tips: If the target version is much later than the current version, it is recommended not to retain the settings (uncheck Keep Setup).
  • Page 65 Configuration Guide eWeb Configuration (Standalone Mode) Figure 3-9-8 Online Upgrade  Online upgrade Click Upgrade. The device downloads the upgrade package from the network, and upgrades the current version. The upgrade operation retains configuration of the current device. Alternatively, you can select Download File to the local device and import the upgrade package on the Local Upgrade page.

  • Page 66: Scheduled Reboot

    Configuration Guide eWeb Configuration (Standalone Mode) 3.9.6 Scheduled Reboot Figure 3-9-9 Scheduled Reboot  Scheduled reboot Enable Scheduled Reboot, set the day and time when the system needs to be rebooted, and click Save. Tips: When this function is enabled, the system is rebooted at scheduled time for better experience. Off-peak hours are recommended for the reboot.
  • Page 67 Configuration Guide eWeb Configuration (Standalone Mode) 3.9.7 Reboot The Reboot module provides the Reboot button, as shown in the figure below: Figure 3-9-10 Reboot  Reboot Click Reboot, and click OK in the confirmation box. The device is rebooted and you need to log into the eWeb management system again after the reboot.

  • Page 68: Network Setup

    Configuration Guide Ad Hoc Network Discovery Mode 4 Ad Hoc Network Discovery Mode 4.1 Network Setup Figure 4-1-1 Network Setup  Discovering devices Click Rediscover to discover devices on the network again.  Starting setup Click Start Setup. The system jumps to the Wizard page, as shown in the figure below: 1-64...
  • Page 69 Configuration Guide Ad Hoc Network Discovery Mode Figure 4-1-2 Wizard  Settings Enter the network name and management password, select the IP assignment mode, and click Create Network & Connect. After the network is successfully set up, the following figure is displayed: Figure 4-1-3 Setup Completion 1-65...
  • Page 70 Configuration Guide Ad Hoc Network Discovery Mode Enter an account, and the system will automatically jump to the Ruijie Cloud configuration page shown in the figure below: Figure 4-1-4 Ruijie Cloud Configuration Select the project type, and click Next. The system jumps to the page below:...
  • Page 71 Configuration Guide Ad Hoc Network Discovery Mode 4.2 Overview The Overview module displays online devices and basic information about the current device. Figure 4-2-1 Overview Click the device name on the top navigation bar or Setup. The system automatically jumps to the Switch module for configuration.
  • Page 72 Configuration Guide Ad Hoc Network Discovery Mode 4.3 Switches The Switches module displays a list of switches (including the NBS and ES2 series) on the same network. When there are switches on different networks, a prompt is displayed and you can click Manage to perform required operations. Figure 4-3-1 Switches ...

  • Page 73: Reboot & Reset

    Configuration Guide Ad Hoc Network Discovery Mode 4.4 Network The Network module includes Time, Password, Scheduled Reboot, and Reboot & Reset. 4.4.1 Time Time setting is the same as that in eWeb Configuration > System > System Time. 4.4.2 Password Password setting is the same as that in eWeb Configuration >...
  • Page 74 Configuration Guide Ad Hoc Network Discovery Mode Tips: The operations in Reboot & Reset may affect the whole network. If the system does not respond after configuration delivery, log into the system again. 4.5 Network Merging Every network varies in devices and configuration. You can add devices of Other Network to My Network. When devices exist in different networks, you need to manually add these devices to the current network for network management.
  • Page 75 Configuration Guide FAQs 5 FAQs Q1: I failed to log into the eWeb management system. What can I do? A: Perform the following steps: (1) Check that the network cable is properly connected to the LAN port of the device and the corresponding LED indicator blinks or is steady on.
