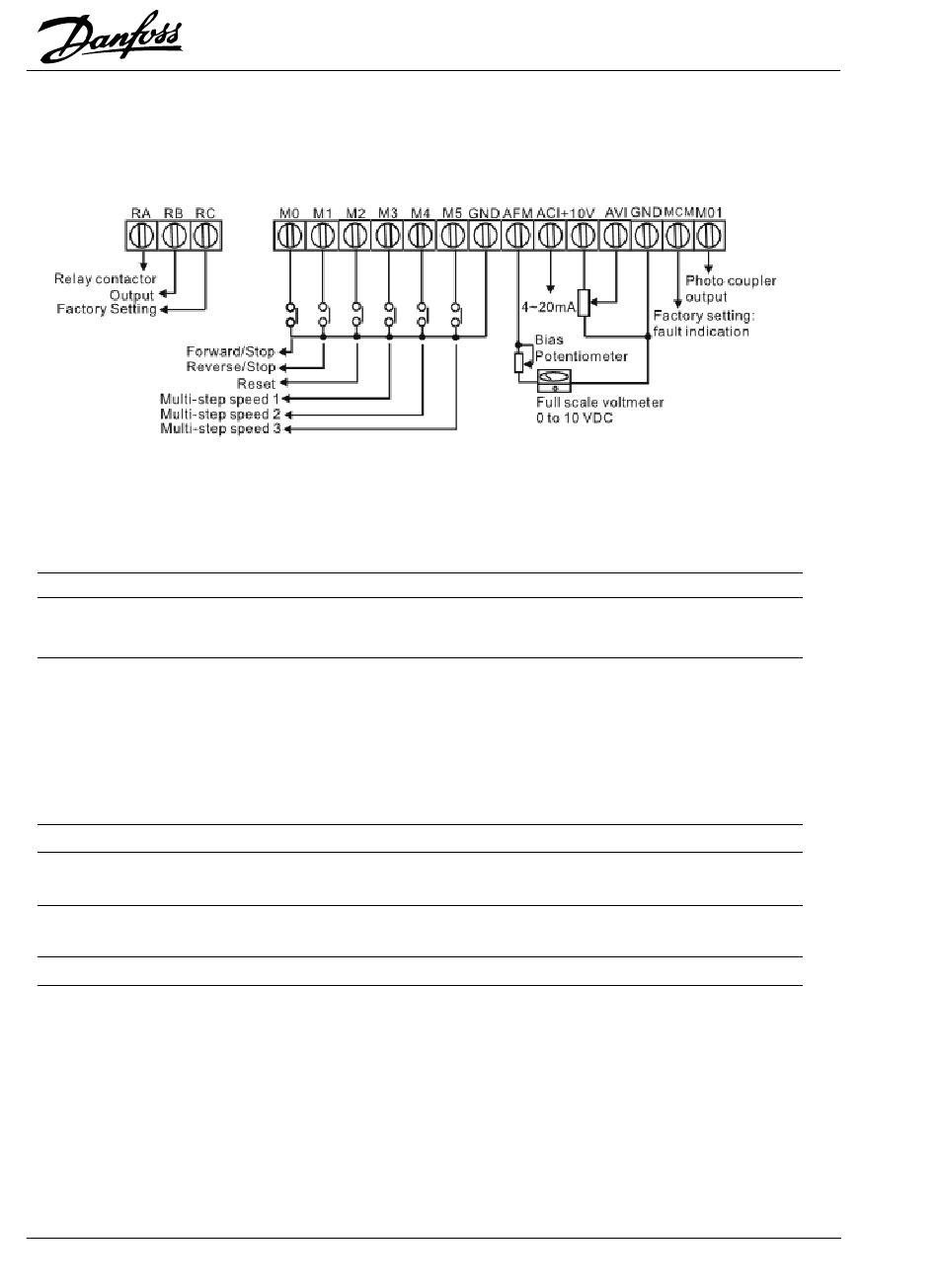

Control Terminal Designations
AWG 12-14
Torque 4 kg-cm
Relay contactor output
Factory setting:
Terminal symbol Terminal name
RA - RC
Multi-function output contact
RB - RC
Multi-function output contact
M0 - GND
Multi-function input 1
M1 - GND
Multi-function input 2
M2 - GND
Multi-function input 3
M3 - GND
Multi-function input 4
M4 - GND
Multi-function input 5
M5 - GND
Multi-function input 6
MO1 - MCM
Multi-function PHC output 1
+10V - GND
Power supply for speed control Power supply (+10 V)
AVI - GND
Analog voltage freq. command 0 - 10V input (10V = Max.Freq.)
ACI - GND
Analog Current freq. command 4 - 20mA input (20mA = Max. Freq.)
AFM - GND
Analog frequency/current meter 0 - 10 V output ( 10 V = max. freq.)
Note : Use twisted-shielded or twisted-pair shielded wires for the control signals. It is
recommended to run all signal wiring in a separate steel conduit. The shielding should be
connected at both ends .
Remarks
Refer to P46,
Relay Output Contact
Refer to P38, 39, 40, 41, 42
Refer to P45
16
® ® ® ® ®
