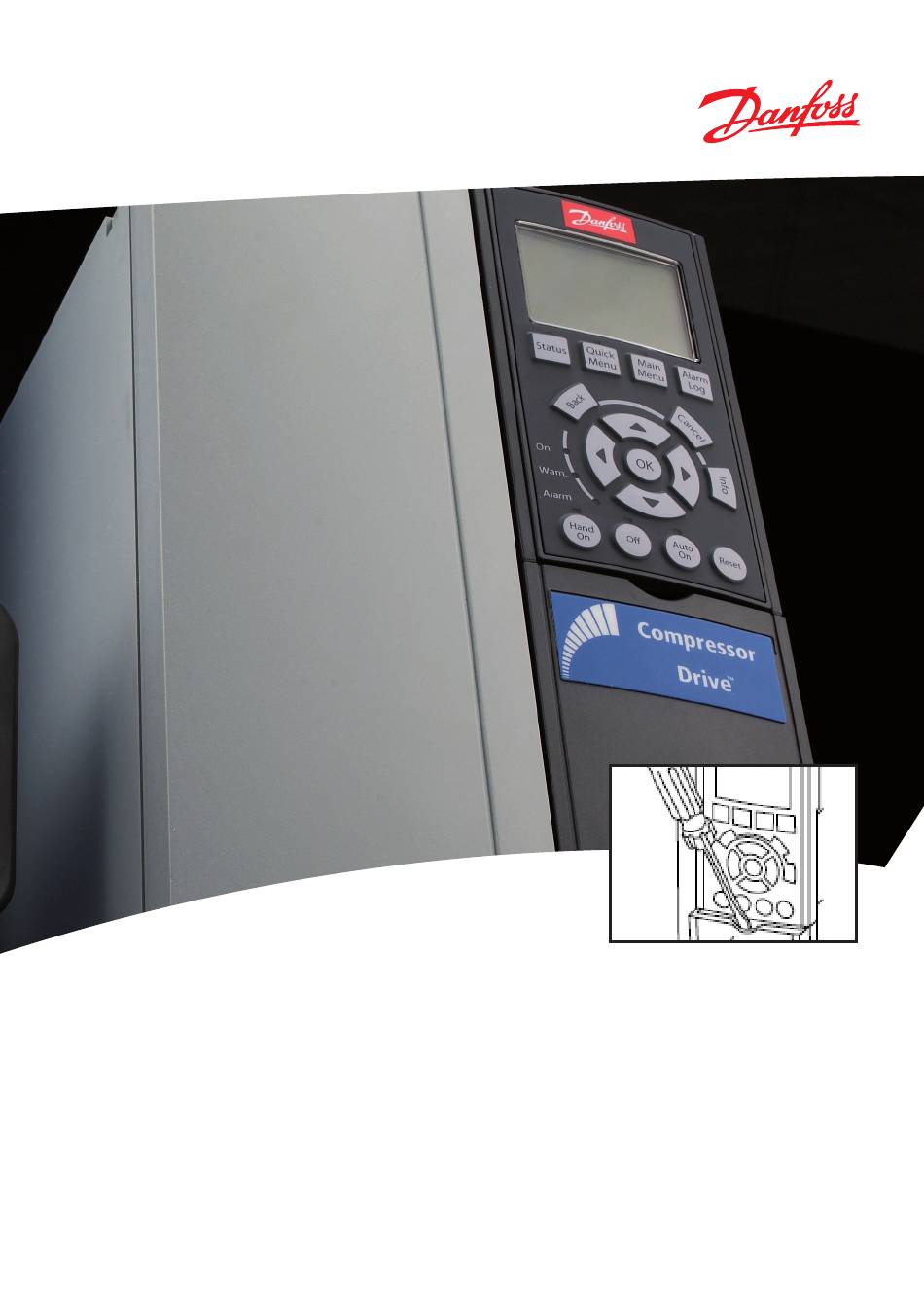

- Page 1 MAKING MODERN LIVING POSSIBLE Service parts replacement CD302 & CDS302 Manual...
- Page 2 Manual NTRODUCTION This manual explains briefly how to dismount and replace some of the internal parts of a CD302 or CDS302 Variable Speed Drive (VSD) dedicated to Maneurop VSD or Performer VSD compressors. The manual covers the main parts of a VSD which can be installed or replaced by a service technician;...
- Page 3 Manual ERVICE PARTS REPLACEMENT VSD with IP20 enclosure The internal parts from VSD’s with IP20 enclosure must be dismounted in the following sequential order: 1. LCP, front panel and terminals 2. Optional relay card 3. Control card 4. Heat sink fan 5.
- Page 4 Manual ERVICE PARTS REPLACEMENT VSD with IP55 enclosure The internal parts from VSD’s with IP55 enclosure must be dismounted in the following sequential order: 1. LCP, front panel and terminals 2. Heat sink fan 3. Optional relay card 4. Control card 5.
- Page 5 Manual ERVICE PARTS REPLACEMENT The power card is made of 2 separate electronic boards. Power card • Unscrew the first board of the power card. • Unplug it and remove it. The second board of the power card is below the copper connecting strips of the DC link, located in an insulation material plate (black).
- Page 6 Danfoss can accept no responsibility for possible errors in catalogues, brochures and other printed material. Danfoss reserves the right to alter its products without notice. This also applies to products already on order provided that such alterations can be made without subsequential changes being necessary in specifications already agreed.
