7. 06: AC Drive Contr ol Mode – The Multi-function Output Terminal contacts will be
"closed" when the AC drive operation is controlled by the external terminals.
8. 07: Fault Indicator – The Multi-function Output Terminal contacts will be
"closed" when a fault is detected.
9. 08: AC Drive Contr ol Mode – The Multi-function Output Terminal contacts will be
"closed" when the output frequency equals the Desired Frequency attained (Pr.47).
10. 09: PLC Pr ogram Running – The Multi-function Output Terminal contacts will be
"closed" the PLC program is executing.
11. 10: PLC Pr ogram Step Completed – The Multi-function Output Terminal contacts
will be "closed" within 5 seconds when each multi-step speed is attained.
12. 11: PLC Pr ogram Completed Execution – The Multi-function Output Terminal
contacts will be "closed" within 5 secs. after the PLC program completes execution.
13. 12: PLC Pr ogram Execution Paused – The Multi-function Output Terminal contacts
will be "closed" when the PLC program execution is paused by a multi-function input
terminal that has been programmed to pause the drive operation.
14. 13: T erminal Count Reached – The Multi-function Output Terminal contacts will be
"closed" when the counter value is equeal to the value programmed by Pr.96.
15. 14: Pr eliminary Counter Value Reached – The Multi-function Output Terminal
contacts will be "closed" when the counter value equeals the value of Pr.97.

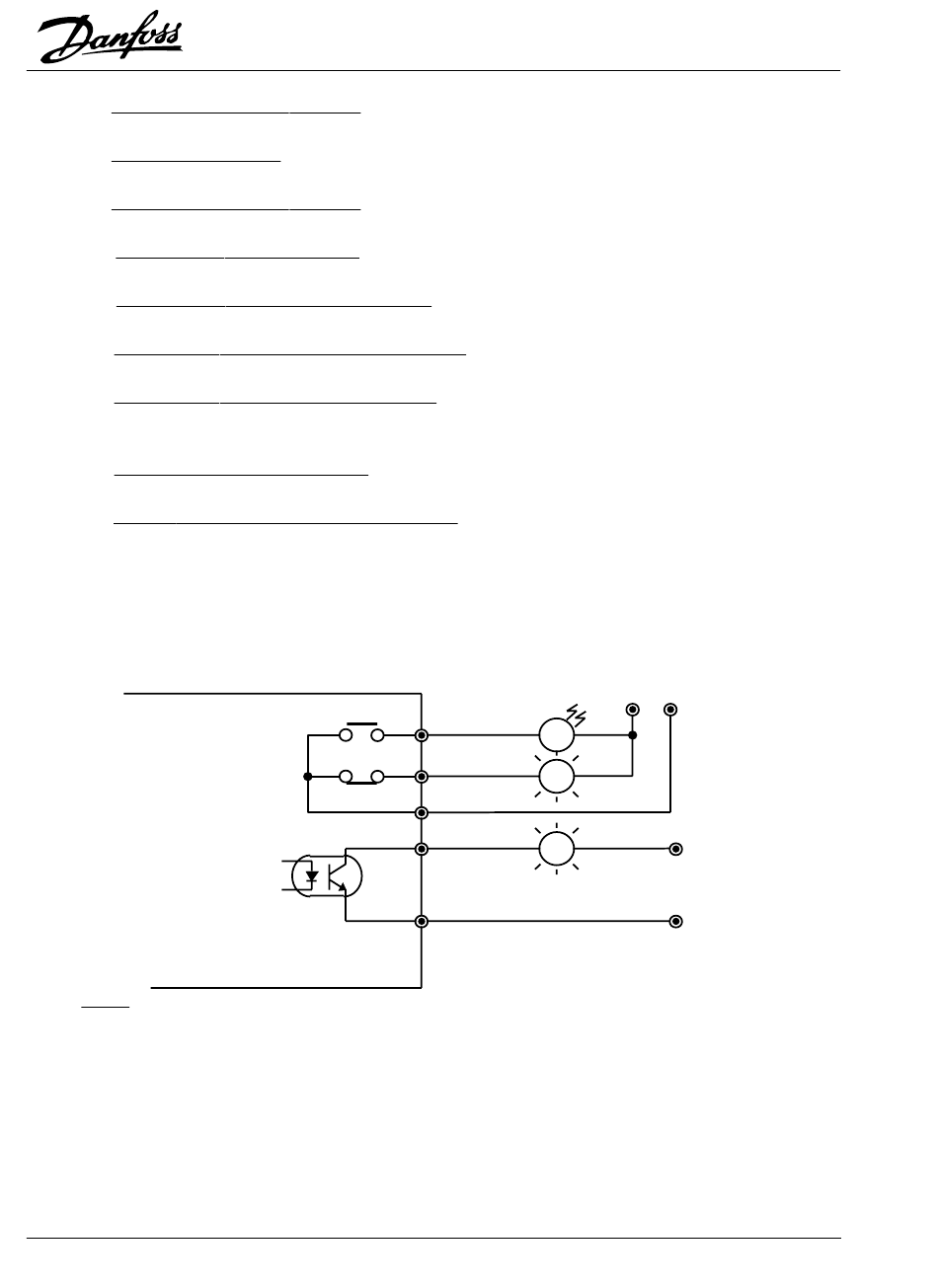

Multi-function terminals wiring example
Multi-Function indication
output terminals
AC 250V 2A
DC 30V 2A
Multi-Function PHC
output terminals
PHC
48VDC 50mA
Pr.47 Desired Frequency Attained
Factory Setting 0.00 Hz
Units 0.01 Hz
Parameter value 0.00 - 400.0 Hz
Used to select a specified frequency in increments of 0.01 Hz.
Faults indication
RA
BZ
RB
Power indication
LT
RC
LT
MO1
Pre-set freq. attained
MCM
47
® ® ® ® ®
VLT
MICRO
AC/DC Power Source
Plus terminal
Power 48VDC
50mA
Minus terminal
