5. 09: Jog Fr equency Control – Parameter value 09 programs a Multi-function Input
Terminal: M1 (Pr.38), M2 (Pr.39), M3 (Pr.40), M4 (Pr.41) or M5 (Pr.42) for Jog control.
Jog operation programmed by 09 can only be initiated with the motor stopped (refer
to Pr.15, Pr.16).

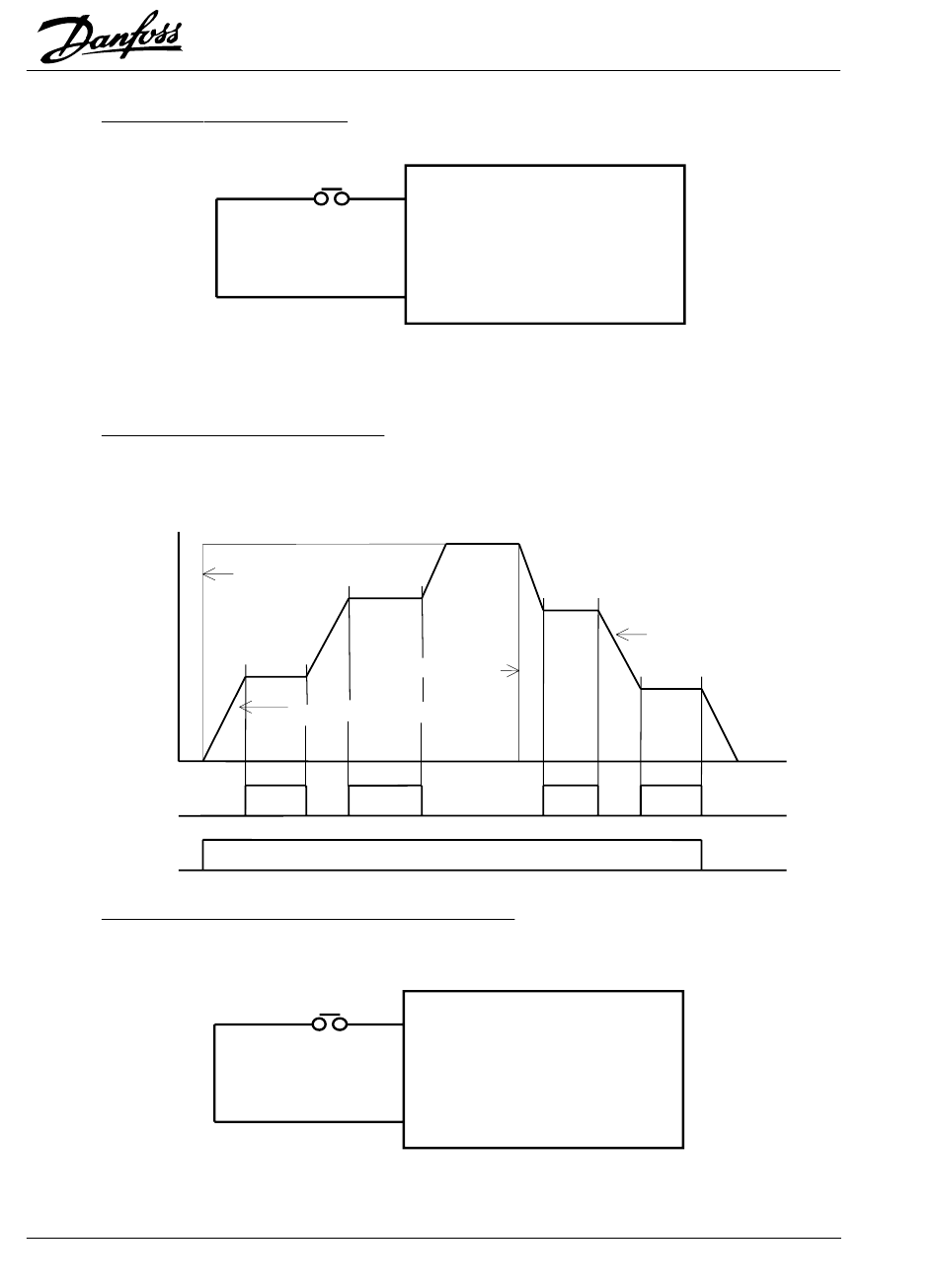

6. 10: Accel./Decel. Speed Inhibit – Parameter 10 programs a Multi-functional Input
Terminal: M1 (Pr.38), M2 (Pr.39), M3 (Pr.40), M4 (Pr.41), M5 (Pr.42) for "hold speed"
control. When the command is accepted, acceleration and deceleration is stopped
and the AC drive maintains the motor at a constant speed.
Freq.
Setting Freq,
Accel. inhibit
Mx-GND
Operation
Command
7. 11: First or Second Accel./Decel. T ime Select – Parameter value 11 programs a
Multi-function Input Terminal: M1 (Pr.38), M2 (Pr.39), M3 (Pr.40), M4 (Pr.41) or M5
(Pr.42) to control selection of first or second Accel./Decel. times (refer to Pr.10, Pr.11,
Pr.12, Pr.13).
11 Switch for 1st / 2nd
NOTE: This function is disabled when the drive is performing other functions.
Mx "Closed": Operation available.
09 jog operation
Command
GND
Accel. inhibit
Setting Freq.
Actual operation Freq.
ON ON
ON
Mx "Closed": Operation available.
Accel./Decel.
GND
41
VLT
VLT MICRO
Decel. inhibit
ON
Running with 2nd Accel./Decel.
VLT MICRO
® ® ® ® ®
MICRO
Actual operation Freq.
Decel. inhibit
Timing
ON
