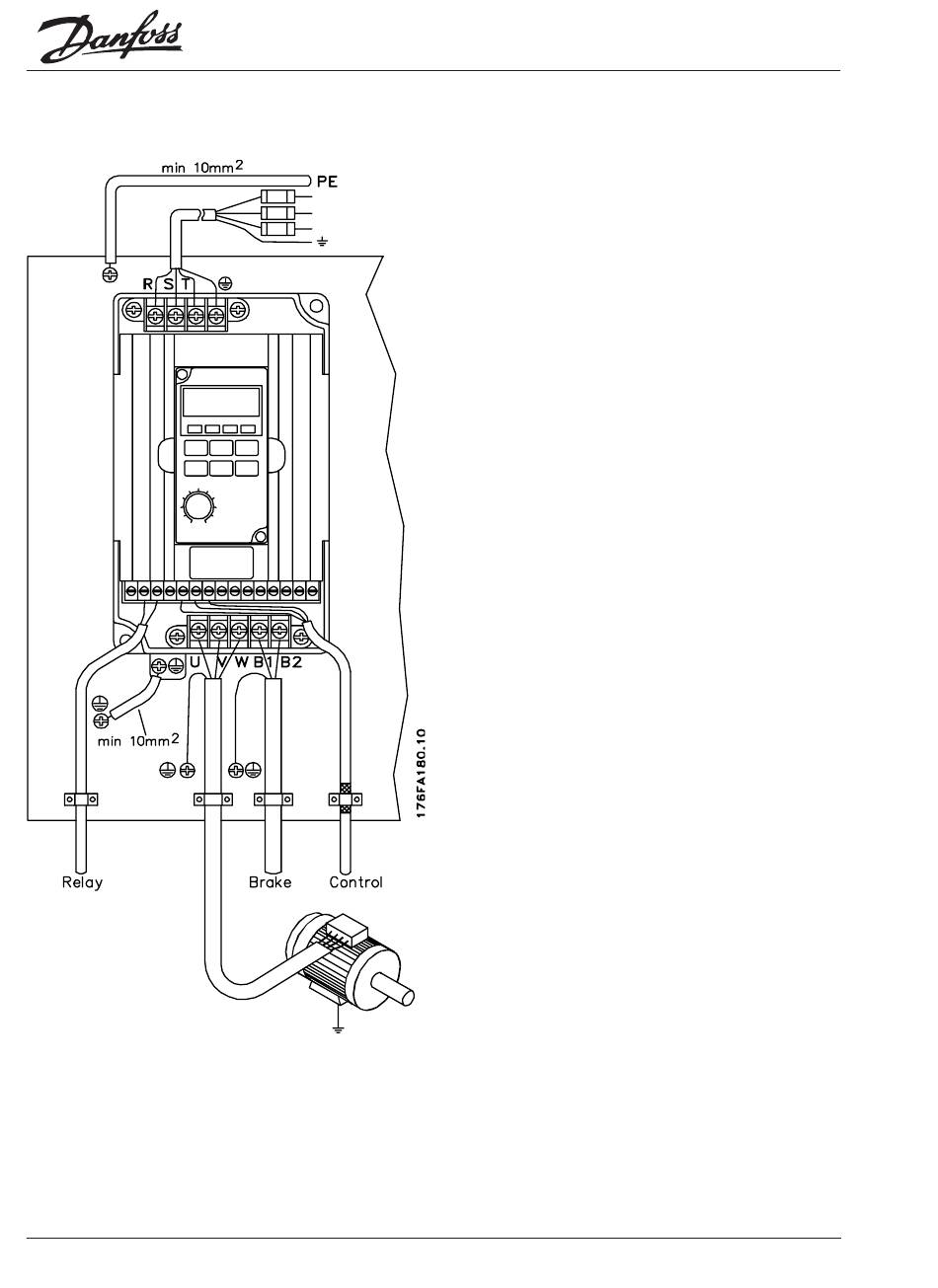

Installation without RFI-filter

200-240 V 200-240 V 200-240 VAC units 200-240 V 200-240 V AC units AC units AC units AC units
Recommended Input Fuses
BUSSMAN Type JJN
VLT MICRO model176F7300 JJN-10
VLT MICRO model176F7301 JJN-20
VLT MICRO model176F7302 JJN-25
VLT MICRO model 176F7306 JJN-10
VLT MICRO model 176F7307 JJN-20
VLT MICRO model 176F7308 JJN-25
380-480 VAC units 380-480 VAC units
380-480 VAC units 380-480 VAC units 380-480 VAC units
Recommended Input Fuses
BUSSMAN Type JJS
VLT MICRO model 176F7312 JJS-10
VLT MICRO model 176F7313 JJS-15
VLT MICRO model 176F7314 JJS-20
NOTE:
1. Main-circuit terminals spec. is M3.
2. Main-circuit wiring is 600V 14AWG max.
3. Unscreened wiring between drive and motor
should not exceed 330 ft. (100m).
(1) 100 ft. (30m) below, the PWM carrier
frequency should be 15kHz below.
(2) 165 ft. (50m) below, the PWM carrier
frequency should be 10kHz below.
(3) 300 ft. (100m) below, the PWM carrier
frequency should be 5kHz below.
4. Voltage drop (V) = √ 3 • line resistance
(Ω.Km) • line lengfh (m) • Current (A) • 10
5. Screened wiring between drive and motor
should not exceed 50 ft. (15m).
Connection for optional brake resistor.
Refer to Appendix for model numbers.
