S T E P 6
INSTALL
REAR WHEEL

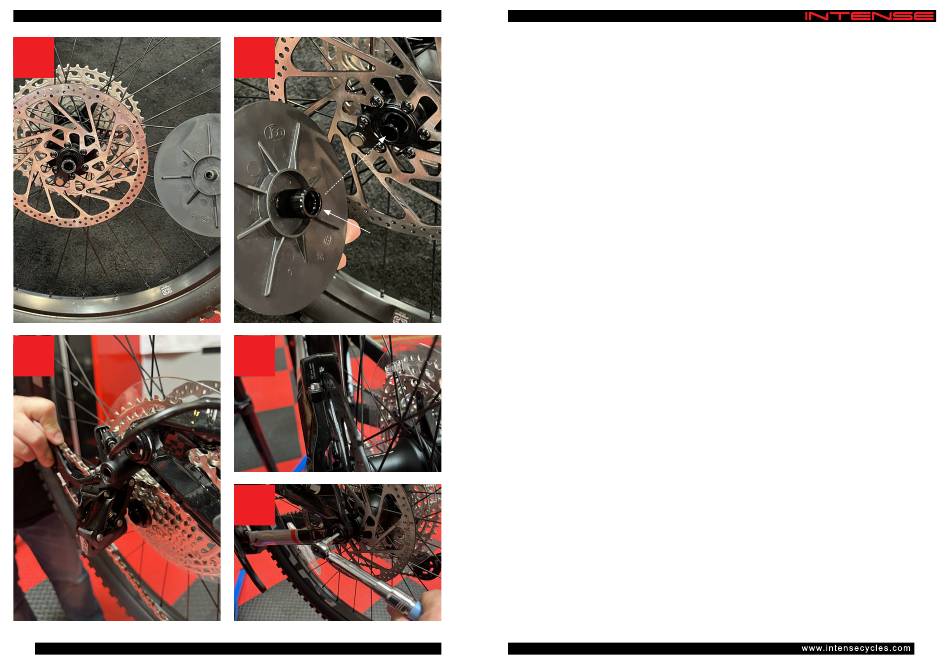

Remove the rear brake pad spacer. At this stage be
careful not to pull the rear brake lever until the wheel
has been installed.
Remove any packaging left on the rear wheel,
including the large black plastic rotor guards (A).
Be careful that the wheel spacers don't get pulled
off by accident (B). If they do, just press them back
into position. Do not touch the brake rotors with your
hands or gloves, as any small amount of grease may
contaminate them and the brake pads.
Remove the rear axle with a 5mm Allen key by turning
it counterclockwise from the non-drive side.
EXPERT BUILD: Insert the rear wheel into the frame
by first positioning the chain on the smallest cog on
the cassette (C). For your SHIMANO equipped Tazer
Expert you will need to rotate the lower cage of the
derailleur down a little to allow you to position the
chain on the cassette more easily. Carefully line up
the rotor with the rear brake making sure that it slides
inside the caliper body between the brake pads (D),
and the hub spacers slide into the slots on the frame
dropouts.
Once everything is lined up and in position, reinsert
the axle. Turn with the 5mm Allen key clockwise, you
may need to apply a little inward pressure to start it
off. Torque to 11Nm (E).
*PRO BUILD instructions on next page.
