INSTALLATION GUIDE
Motor to linkage assembly
NOTE: The motors will be attached on step 20 (page 8).

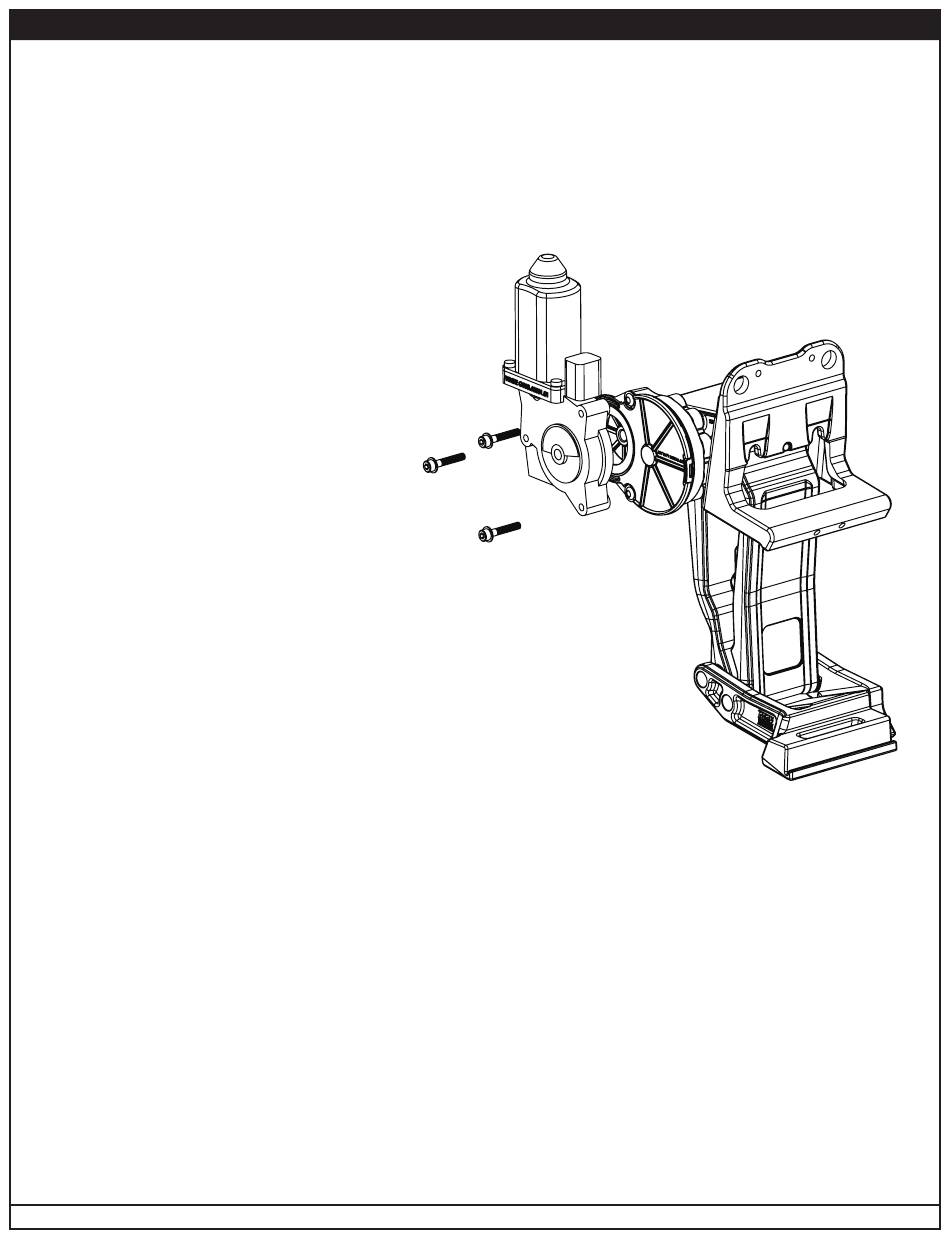

EXPLODED VIEW

• Motor
• Socket cap screw
• Washer
• Drive Gear Housing Cover
CAUTION: HANDLE WITH CARE.
To ensure our customers receive all components with full integrity, we pack the motors separate from their linkage as-
semblies. This requires that the installer position and fasten the motor before continuing with the install. Please follow
the instructions below and handle the assembly carefully.
CAUTION: Dropping the assembly or any excessive impact MAY cause damage to the motor.
Instructions:
1. Position the gear cover in place as shown if not already in place.
2. Seat motor into position on the three mounting bosses. This may require an adjustment of the gear by moving the
swing arms.
3. After seating into place, fasten the motor with the three motor mount screws with 4mm Hex Head. Tighten screws to
36 in-lbs (4N-m). Do not over torque.
