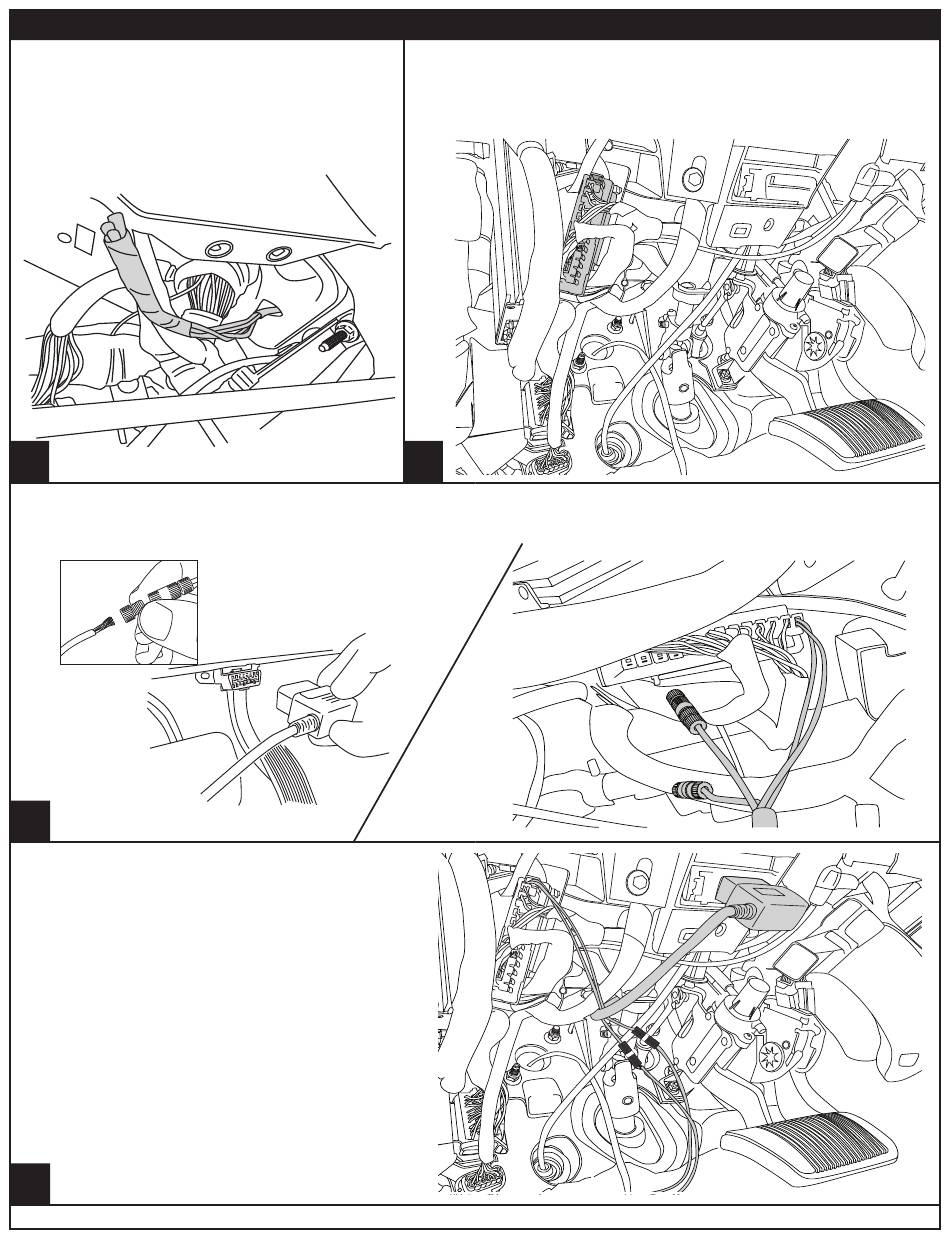

Tape leading end of wires together and push
through rubber boot to cabin side of the
firewall. Silicon lubricant may be used for
ease of passage. The trigger wires will come
out just above and to the left of the brake
pedal.
26
Plug 2 pin plug into the Green Connector Block. Use supplied Posi-Lock connectors to attach the Plug and
Play module to the Harness. Attach Matching colors on the harness to the wires on the module. Plug in
module to the OBD II port on the vehicle.
28
7
Secure harness with supplied tie wraps.
Make sure wires are away from E-brake
mechanism and brake pedal assembly.
9
7 29
