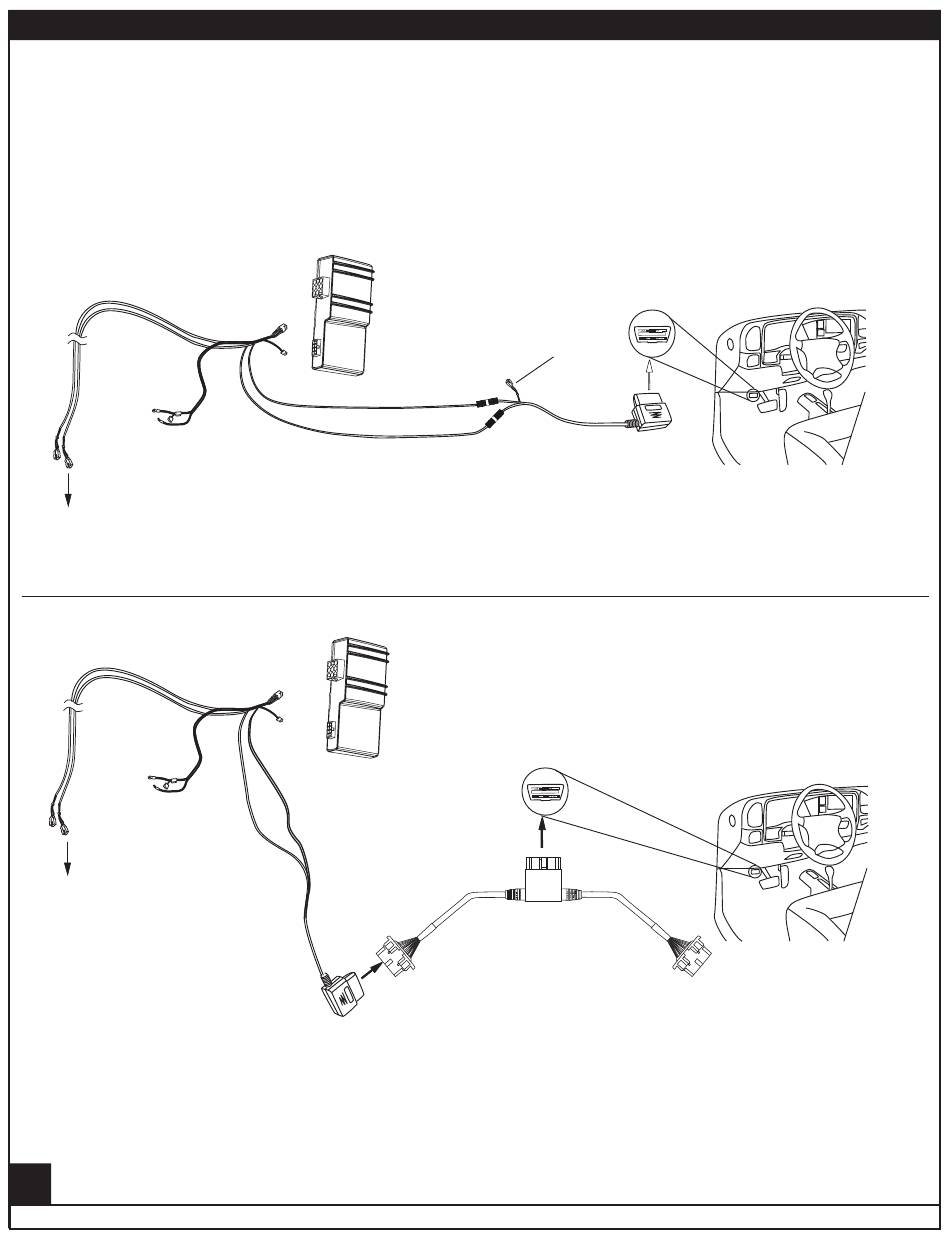

OBD II install: Use Supplied Posi-Lock connectors to attach the Plug and Play Module to the
Harness. Attach matching colors on the harness to the wires on the module. Plug in module to
OBD II port on the vehicle. Secure harness with supplied tie wraps.
Note: If the OBD II pass thru harness (76404-01A) was purchased see install sheet supplied in packaging.
The pass through harness allows for an open port for other accessories. See below for a brief description.
28
11
Power (12V)
To Powerstep
Motors
To Vehicle
Power (12V)
To Powerstep
Motors
15
30
www.amp-research.com
A M P R E S E A R C H P O W E R S T E P
To Vehicle
Powerstep
Connection Module
T M
Powerstep
Plugs into vehicle
Control Module
under dashboard
Powerstep
Control Module
Vehicle Port
Vehicle Port
Pass-Through Harness
(pin-topin at each terminal)
11/15
– D O D G E R A M
Vehicle Port
Powerstep
Connection Module
Direct to Port Option
Pass-Through Harness Option
New Vehicle Port
(replaces original port)
