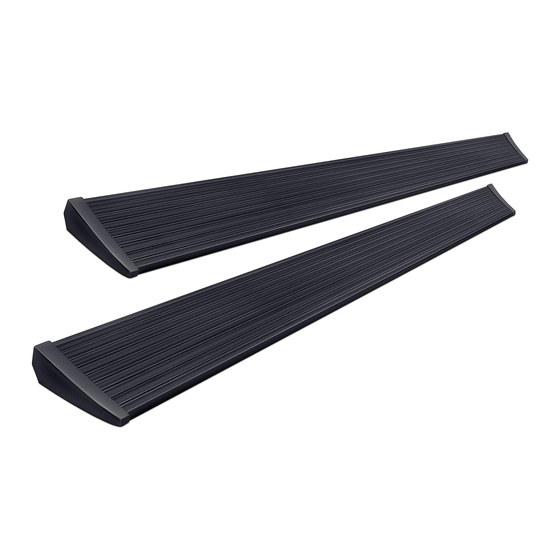

AMP Research Power Step Installation Manual
  1. Manuals
  2. Brands
  3. AMP Research Manuals
  4. Automobile Accessories
  5. Power Step
  6. Installation manual

AMP Research Power Step Installation Manual

For ford super duty f-250 / f-350 regular cab, ford super duty f-250 / f-350 super cab, ford super duty f-250 / f-350 crew cab 1999-2001/2004-2007 and ford excursion 2000-2001/2004-2005
Hide thumbs Also See for Power Step:

Advertisement

Quick Links

Download this manual
APPLICATION
Ford Super Duty F-250 / F-350 Regular Cab* (48")
Ford Super Duty F-250 / F-350 Super Cab* (60")
Ford Super Duty F-250 / F-350 Crew Cab
Ford Excursion*
*Modification required to running board assembly. See Item 1 on page 3.
AMP RESEARCH TECH SUPPORT 1-888-983-2204 (Press 2) Monday - Friday, 6:00 AM - 5:00 PM PST
Invented, engineered and manufactured exclusively by AMP Research in the USA. May be covered by one of the following patents:
6,641,158; 6,830,257; 6,834,875; 6,938,909; 7,055,839; 7,380,807; 7,398,985; 7,584,975 ©2012 AMP Research. All rights reserved.
Printed in USA.
www.amp-research.com
I N S T A L L A T I O N G U I D E
LENGTH
(79")
(79")
1/12
MODEL YR
1999-2001 / 2004-2007
1999-2001 / 2004-2007
1999-2001 / 2004-2007
2000-2001 / 2004–2005
INSTALLATION TIME
Professional installation recommended
1
4= Experienced
TOOLS REQUIRED
q Safety goggles
q Measuring tape
q Flat blade screwdriver
q Phillips head screwdriver
q 13mm socket
q 8mm socket
q Ratchet wrench and extension
q Wire crimpers
q Wire stripper / cutter
q 3/16" hex key wrench ( allen wrench )
q 4mm hex key wrench ( allen wrench )
q Electrical tape
q 9/32" Drill Bit
q 25/64" Drill Bit
q Weather proof caulking ( silicone
sealer )
5-Year Limited Warranty
PART #
75104-01A
75104-01A
75104-01A
75104-01A
3-5 Hours
SKILL LEVEL
2
3
4
WARRANTY
IM75104 rev 09.19.12

Advertisement

loading
Need help?

Need help?

Do you have a question about the Power Step and is the answer not in the manual?

Questions and answers

Related Manuals for AMP Research Power Step

Summary of Contents for AMP Research Power Step

  • Page 1 AMP RESEARCH TECH SUPPORT 1-888-983-2204 (Press 2) Monday - Friday, 6:00 AM - 5:00 PM PST Invented, engineered and manufactured exclusively by AMP Research in the USA. May be covered by one of the following patents: 6,641,158; 6,830,257; 6,834,875; 6,938,909; 7,055,839; 7,380,807; 7,398,985; 7,584,975 ©2012 AMP Research. All rights reserved.

  • Page 2: Exploded View

    A M P R E S E A R C H P O W E R S T E P – F O R D S U P E R D U T Y & E X C U R S I O N INSTALLATION GUIDE Attaching motor to linkage assembly The motors must be attached to the linkage assemblies before continuing the...
  • Page 3 A M P R E S E A R C H P O W E R S T E P – F O R D S U P E R D U T Y & E X C U R S I O N Note: Some Applications require modification.
  • Page 4 A M P R E S E A R C H P O W E R S T E P – F O R D S U P E R D U T Y & E X C U R S I O N PARTS LIST AND HARDWARE IDENTIFICATION...

  • Page 5: Driver Side

    A M P R E S E A R C H P O W E R S T E P – F O R D S U P E R D U T Y & E X C U R S I O N Driver Side IDLER ASSEMBLY...
  • Page 6 A M P R E S E A R C H P O W E R S T E P – F O R D S U P E R D U T Y & E X C U R S I O N Loop two large tie wraps through fastener cutouts in sheet metal as shown.
  • Page 7 A M P R E S E A R C H P O W E R S T E P – F O R D S U P E R D U T Y & E X C U R S I O N Puncture grommet and thread trigger wire Remove kick plate...
  • Page 8 A M P R E S E A R C H P O W E R S T E P – F O R D S U P E R D U T Y & E X C U R S I O N NOTE: Steps 16-25, removing driver’s door panel, only for vehicles prior to 2007.
  • Page 9 A M P R E S E A R C H P O W E R S T E P – F O R D S U P E R D U T Y & E X C U R S I O N Insert plastic tube Door Ajar Wire Connecting Wire...
  • Page 10 A M P R E S E A R C H P O W E R S T E P – F O R D S U P E R D U T Y & E X C U R S I O N On each side of the vehicle measure from the front edge of door line on the pinch weld to the specified lengths below.

This manual is also suitable for:

75104-01a
