AMP Research PowerStep 76239-01A Installation Manual page 12

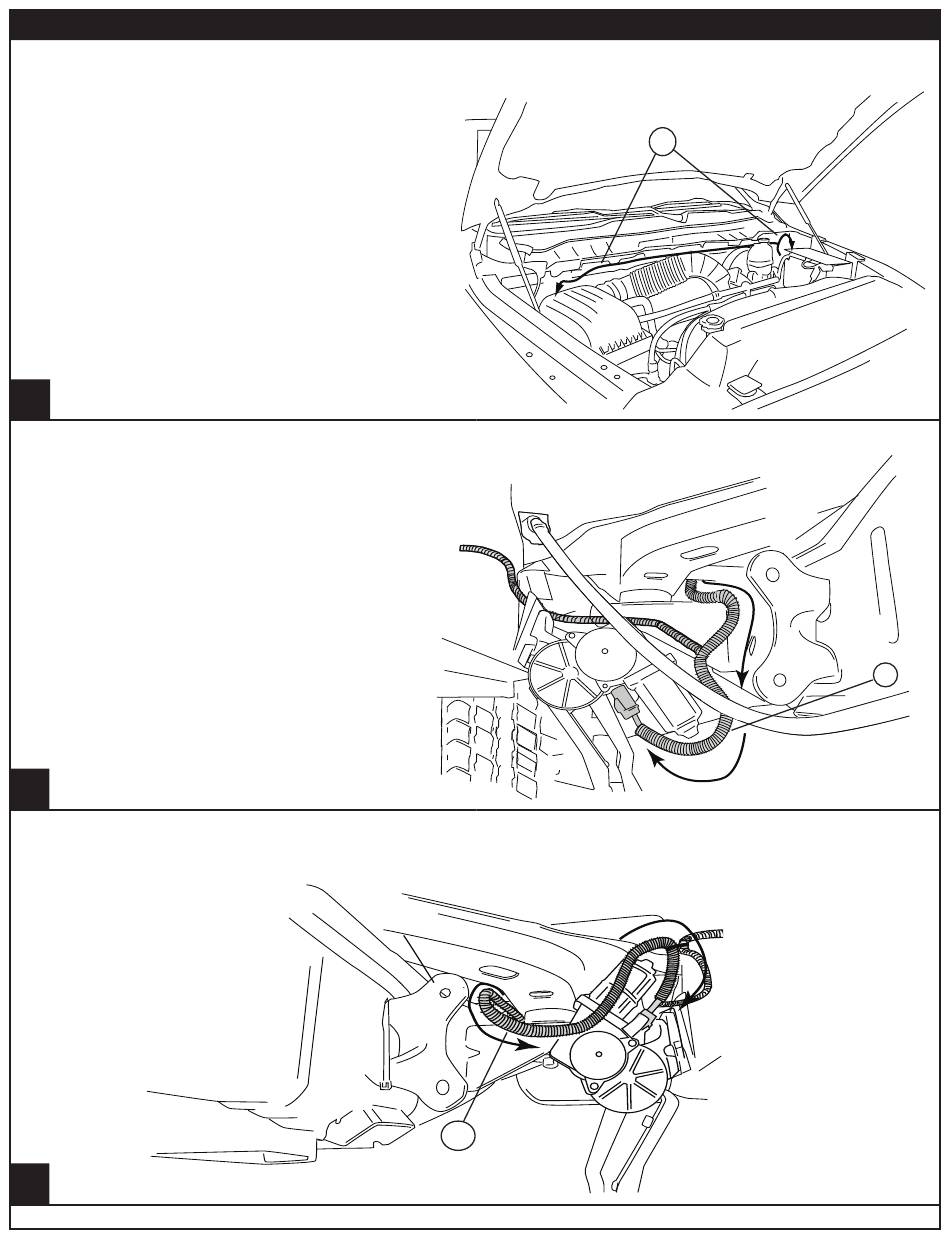

Route the two Wire Harness legs down over the
wheel wells toward Motor Linkages, long leg
across to the passenger side. Secure harness
with tie wraps.
28
31
On driver side, run Wire Harness leg down
and along underside of the vehicle floor and
frame to front Drive Linkage. Connect harness
to motor and secure harness with tie wraps.
Route remainder of wire harness towards rear
linkage assembly for LED lights
30 32
On Passenger Side, run Wire Harness leg down and along underside of the vehicle floor and frame to front
Drive Linkage. Connect harness to motor and secure harness with tie wraps. Route remainder of wire
harness towards rear linkage assembly for LED lights.
32 33
