A S S E M B L Y & I N S T A L L A T I O N G U I D E
APPLICATION
Chevy Colorado
GMC Canyon

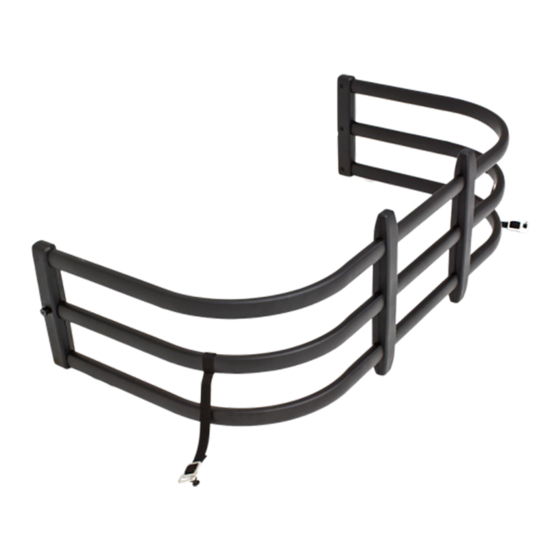

BEDXTENDER HD™ shown assembled and installed on truck.
Remove contents from box and check for damage.
Verify all parts against parts list.
Read and understand instructions completely before attempting assembly
and installation.
Invented, engineered and manufactured exclusively by AMP Research in the USA. May be covered by one of the
following patents:
5,700,047; 6,113,173; 6,402,215; 6,805,392; 7,063,366; 7,393,035; 7,654,598; 7,681,935; 7,841,638
www.amp-research.com
YEAR
2015 - 2019
2015 - 2019
1/6
PART #
74817-00A Silver
74817-01A Black
INSTALLATION TIME
1
Phillips screw driver
Torx T-25 driver
Power drill
1/8 and 21/64" drill bit
Center punch
Supplied templates
Soapy Water
3-Year Limited Warranty
1 Hour
SKILL LEVEL
4
2 3
1= Easy
TOOLS REQUIRED
WARRANTY
P/N 74817 rev 05.03.19
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for AMP Research BedXTender HD MAX Series
Summary of Contents for AMP Research BedXTender HD MAX Series
- Page 1 3-Year Limited Warranty Read and understand instructions completely before attempting assembly and installation. Invented, engineered and manufactured exclusively by AMP Research in the USA. May be covered by one of the following patents: 5,700,047; 6,113,173; 6,402,215; 6,805,392; 7,063,366; 7,393,035; 7,654,598; 7,681,935; 7,841,638 www.amp-research.com...
- Page 2 A M P R E S E A R C H B E D X T E N D E R H D ™ PARTS LIST AND HARDWARE IDENTIFICATION Quick Mount Bracket Set PT-Screw Strap Buckle Bumper Assembly Bumper Upright Outer Pivot Upright Assembly Bumper Upright Inner TAPE...
- Page 3 A M P R E S E A R C H B E D X T E N D E R H D ™ MOUNTING BRACKET INSTALLATION - CHEVROLET COLORADO / GMC CANYON 2015 PLEASE READ ENTIRE INSTRUCTIONS BEFORE PROCEEDING WITH INSTALLATION Quick Mount Bracket M8 Bolt M8 Nut...
- Page 4 A M P R E S E A R C H B E D X T E N D E R H D ™ BED X-TENDER ASSEMBLY Measure 7” from each end of the three center Slide 3 center tubes into the open ends of the bent tubes and mark with tape.
- Page 5 A M P R E S E A R C H B E D X T E N D E R H D ™ BED X-TENDER ASSEMBLY – CONTINUED Attach plastic upright around the tube juncture, placing rubber bumpers into the two ends of the upright. Upright is not positioned in center of tube joint.
- Page 6 A M P R E S E A R C H B E D X T E N D E R H D ™ A M P R E S E A R C H B E D X - T E N D E R ™ Adjust Strap Buckles to lock into the tailgate when BEDXTENDER is deployed.
-
Page 7: Limited Warranty
Congratulations on your purchase of the AMP Research BEDXTENDER HD. Here’s what you need know... BEDXTENDER HD™ OPERATION With the tailgate open, place BEDXTENDER pivot pins into the left and right mounting brackets. Rotate to 45 until it drops into place, then lower onto the open tailgate.
