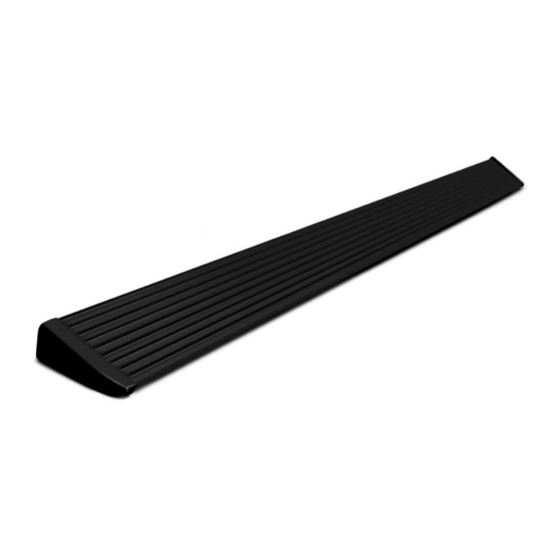

AMP Research Power Step Installation Manual
Hide thumbs
Also See for Power Step:
- Installation manual (16 pages) ,
- Installation manual (10 pages) ,
- Installation manual (11 pages)
Advertisement
Quick Links
APPLICATION
Sprinter Van
AMP RESEARCH TECH SUPPORT 1-888-983-2204 (Press 2) Monday - Friday, 7:00 AM - 5:00 PM PST
Invented, engineered and manufactured exclusively by AMP Research in the USA. May be covered by one of the following patents:
6,641,158; 6,830,257; 6,834,875; 6,938,909; 7,055,839; 7,380,807; 7,398,985; 7,584,975 ©2012 AMP Research. All rights reserved.
Printed in USA.
www.amp-research.com
I N S T A L L A T I O N G U I D E
MODEL YR
2007 - 2018
1/10
PART #
75163-01A
INSTALLATION TIME
3-5 Hours
Professional installation recommended
SKILL LEVEL
2
3
1
4= Experienced
TOOLS REQUIRED
q Safety goggles
q Measuring tape
q 13mm wrench
q 19mm wrench
q 13mm socket
q 10mm socket
q Ratchet wrench and extension
q Wire stripper / cutter
q 3/16" hex key ( allen wrench )
q 4mm hex key ( allen wrench )
q Electrical tape
WARRANTY
5-Year Limited Warranty
IM75163 rev 01.02.20
4
Advertisement
Related Manuals for AMP Research Power Step
Summary of Contents for AMP Research Power Step
- Page 1 AMP RESEARCH TECH SUPPORT 1-888-983-2204 (Press 2) Monday - Friday, 7:00 AM - 5:00 PM PST Invented, engineered and manufactured exclusively by AMP Research in the USA. May be covered by one of the following patents: 6,641,158; 6,830,257; 6,834,875; 6,938,909; 7,055,839; 7,380,807; 7,398,985; 7,584,975 ©2012 AMP Research. All rights reserved.
-
Page 2: Exploded View
A M P R E S E A R C H P O W E R S T E P – S P R I N T E R INSTALLATION GUIDE Attaching motor to linkage assembly The motors must be attached to the linkage assemblies before continuing the installation process. - Page 3 A M P R E S E A R C H P O W E R S T E P – S P R I N T E R (A) End cap left (x1) (B) End cap right (x1) (C) T-nut insert (x2) (D) Socket cap screw (x2) (E) End cap wedge right (x1) (F) End cap wedge left (x1)
- Page 4 A M P R E S E A R C H P O W E R S T E P – S P R I N T E R PARTS LIST AND HARDWARE IDENTIFICATION Cable Tie (11”) Socket Cap Posi-Tap Cable Tie (7”) Screw Connector...
- Page 5 A M P R E S E A R C H P O W E R S T E P – S P R I N T E R Rear Drive Linkage install: Locate rear linkage Set Upper mount up to bump in sheetmetal and location.
- Page 6 A M P R E S E A R C H P O W E R S T E P – S P R I N T E R Front Idler Linkage Install: Locate front linkage Pre Drill holes with an 1/8” Drill and then drill to mounting position.
- Page 7 A M P R E S E A R C H P O W E R S T E P – S P R I N T E R Using light pressure pull out from the inside edge of the running board to get the step in the level position. Hold the running board in position.
- Page 8 Pull trigger wires up through grommet in floor. 9 20 Splice Power Step trigger wires into the Door Rear Door: Located in the loom under the seat look Ajar wires with provided Posi-Tap splicers. The for the pink with a white stripe wire for the rear door.
- Page 9 A M P R E S E A R C H P O W E R S T E P – S P R I N T E R Front Door: Located in the loom in passenger foot well. Remove mat covering jack. Route Blue Trigger wire up through opening in side of seat base.
-
Page 10: Final System Check
Secure all loose wires with cable ties, with lamp wires pulled upward to avoid any wire snagging. Reinstall fuse. Check that all doors activate the Power Step and the LED Lights work when doors open and close. Reinstall any remaining trim panels. FINAL SYSTEM CHECK Check that all doors activate the PowerStep and the LED lights work when doors open and close. -
Page 11: Year Limited Warranty
5-YEAR LIMITED WARRANTY AMP RESEARCH warrants this product to be free from defects in material and workmanship for FIVE (5) YEARS FROM DATE OF PURCHASE, provided there has been normal use and proper maintenance. This warranty applies to the original purchaser only.
