APPLICATION
Ford Expedition
AMP RESEARCH TECH SUPPORT 1-888-983-2204 (Press 2) Monday - Friday, 7:00 AM - 5:00 PM PST
Invented, engineered and manufactured exclusively by AMP Research in the USA. May be covered by one of the following patents:
6,641,158; 6,830,257; 6,834,875; 6,938,909; 7,055,839; 7,380,807; 7,398,985; 7,584,975 ©2012 AMP Research. All rights reserved.
Printed in USA.
www.amp-research.com

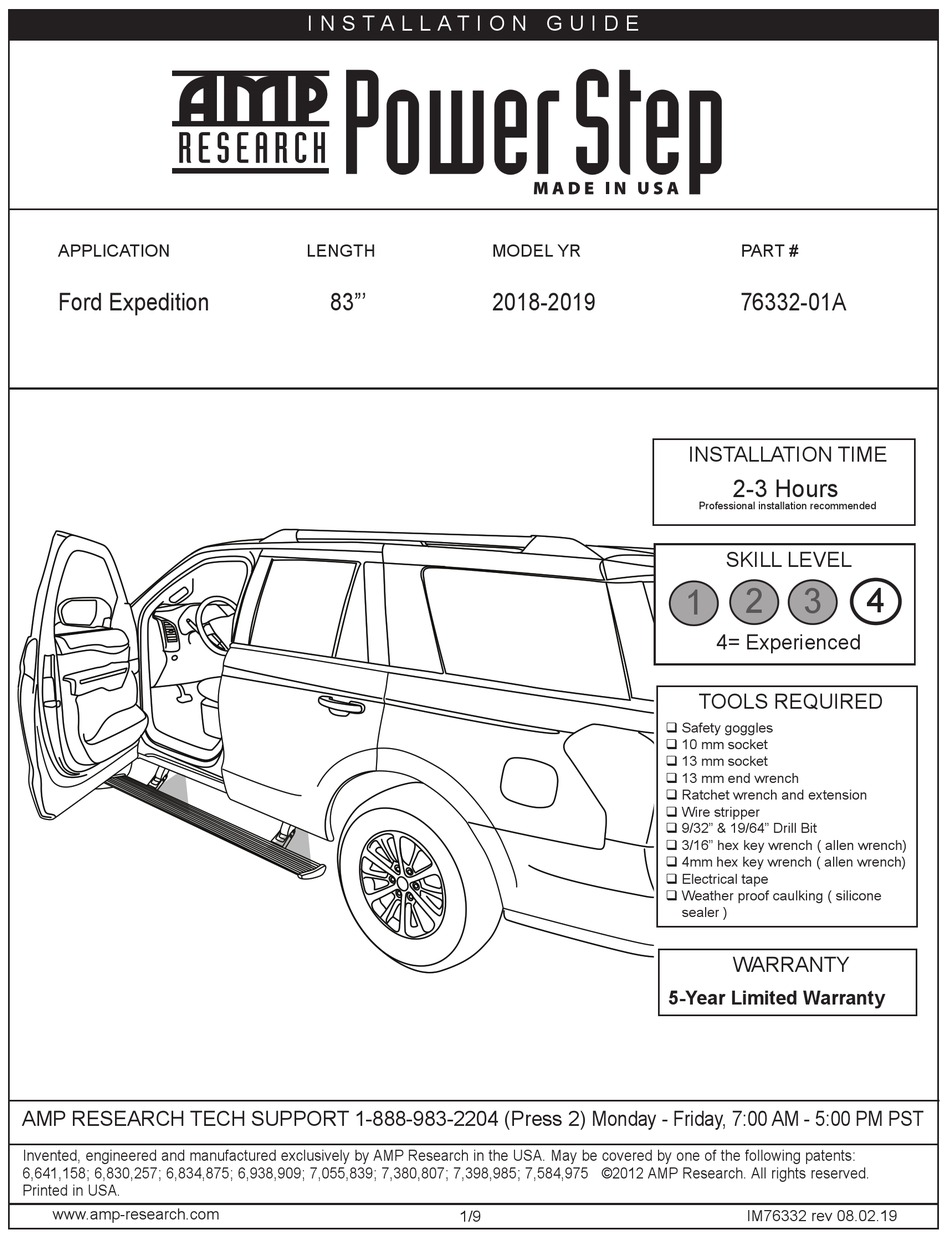

I N S T A L L A T I O N G U I D E
LENGTH
83"'
1/9
MODEL YR
2018-2019
q Safety goggles
q 10 mm socket
q 13 mm socket
q 13 mm end wrench
q Ratchet wrench and extension
q Wire stripper
q 9/32" & 19/64" Drill Bit
q 3/16" hex key wrench ( allen wrench)
q 4mm hex key wrench ( allen wrench)
q Electrical tape
q Weather proof caulking ( silicone
5-Year Limited Warranty
PART #
76332-01A
INSTALLATION TIME
2-3 Hours
Professional installation recommended
SKILL LEVEL
2
3
1
4= Experienced
TOOLS REQUIRED
sealer )
WARRANTY
IM76332 rev 08.02.19
