AMP Research PowerStep 76239-01A Installation Manual page 8

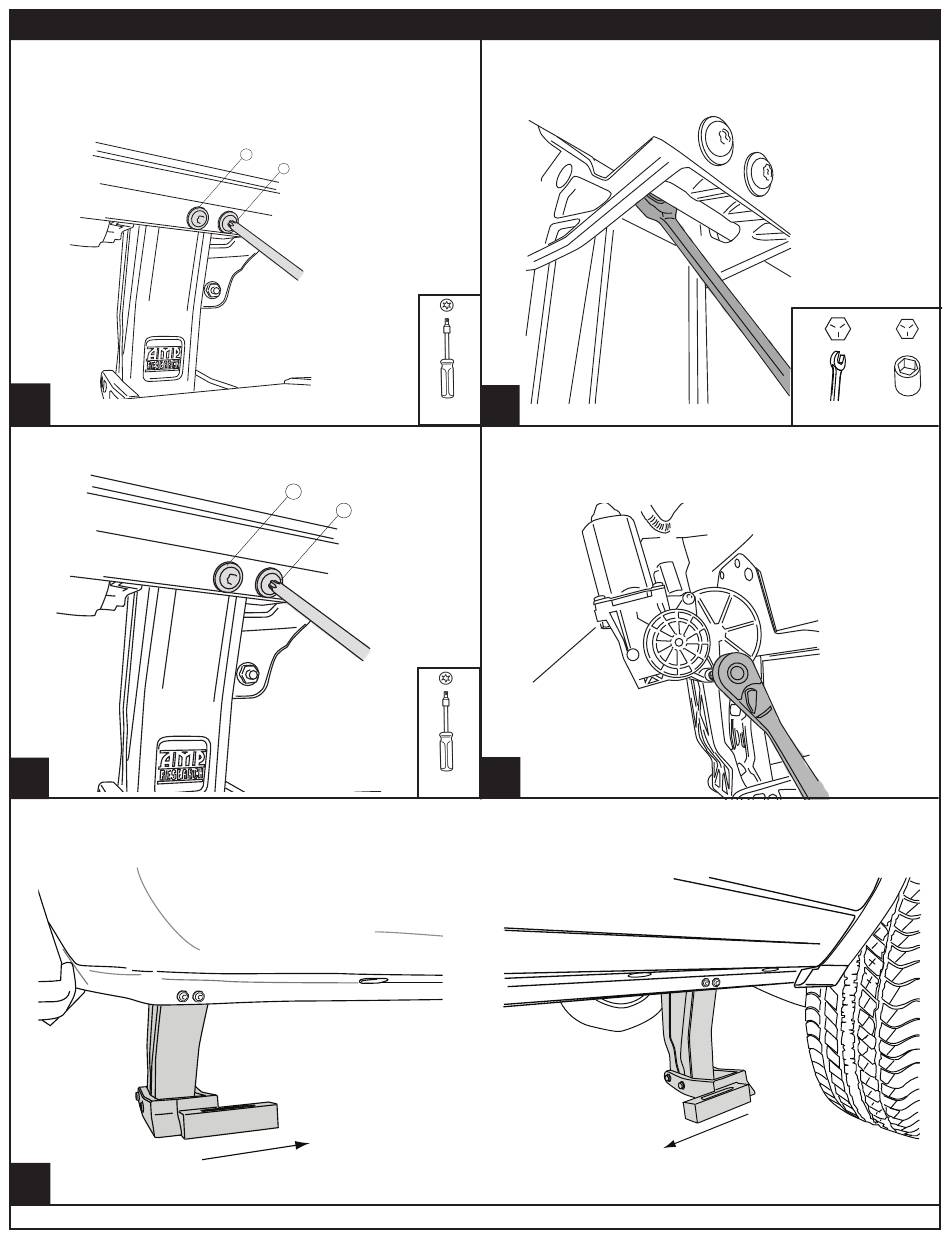

All Linkages: Slide linkage over pre threaded bolts.
Using a T27 Torx driver start torx bolts and washers.
Snug bolts but do not tighten. Replace bolts from
step 15 if present.
10
17
Using a T27 Torx driver torque bolts to 6 ft-lbs.
10
19
The jogs in the lower part of the linkages point toward one another, as shown, Drive (motor) Linkage in the
Front and Idler Linkage in the Rear. Note: Linkage position described in parts list on page 3.
10
21
www.amp-research.com
A M P R E S E A R C H P O W E R S T E P
16
15
16
15
– D O D G E R A M
T M
Using a 13mm wrench tighten two hex bolts on
linkage. Torque to 16 ft-lbs. Torque bolts from step
15 if present to 50 flt-lbs.
10
18
T27 Torx
Using a 4mm hex key torque bolts to 36 in-lbs. See
page 2 for motor installation instructions.
10
20
T27 Torx
10
8/15
13mm 13mm
IM76239 rev 01.15.18
