APPLICATION
Toyota 4Runner
(Excludes Limited)
AMP RESEARCH TECH SUPPORT 1-888-983-2204 (Press 2) Monday - Friday, 6:00 AM - 5:00 PM PST
Invented, engineered and manufactured exclusively by AMP Research in the USA. May be covered by one of the following patents:
6,641,158; 6,830,257; 6,834,875; 6,938,909; 7,055,839; 7,380,807; 7,398,985; 7,584,975 ©2012 AMP Research. All rights reserved.
Printed in USA.
www.amp-research.com

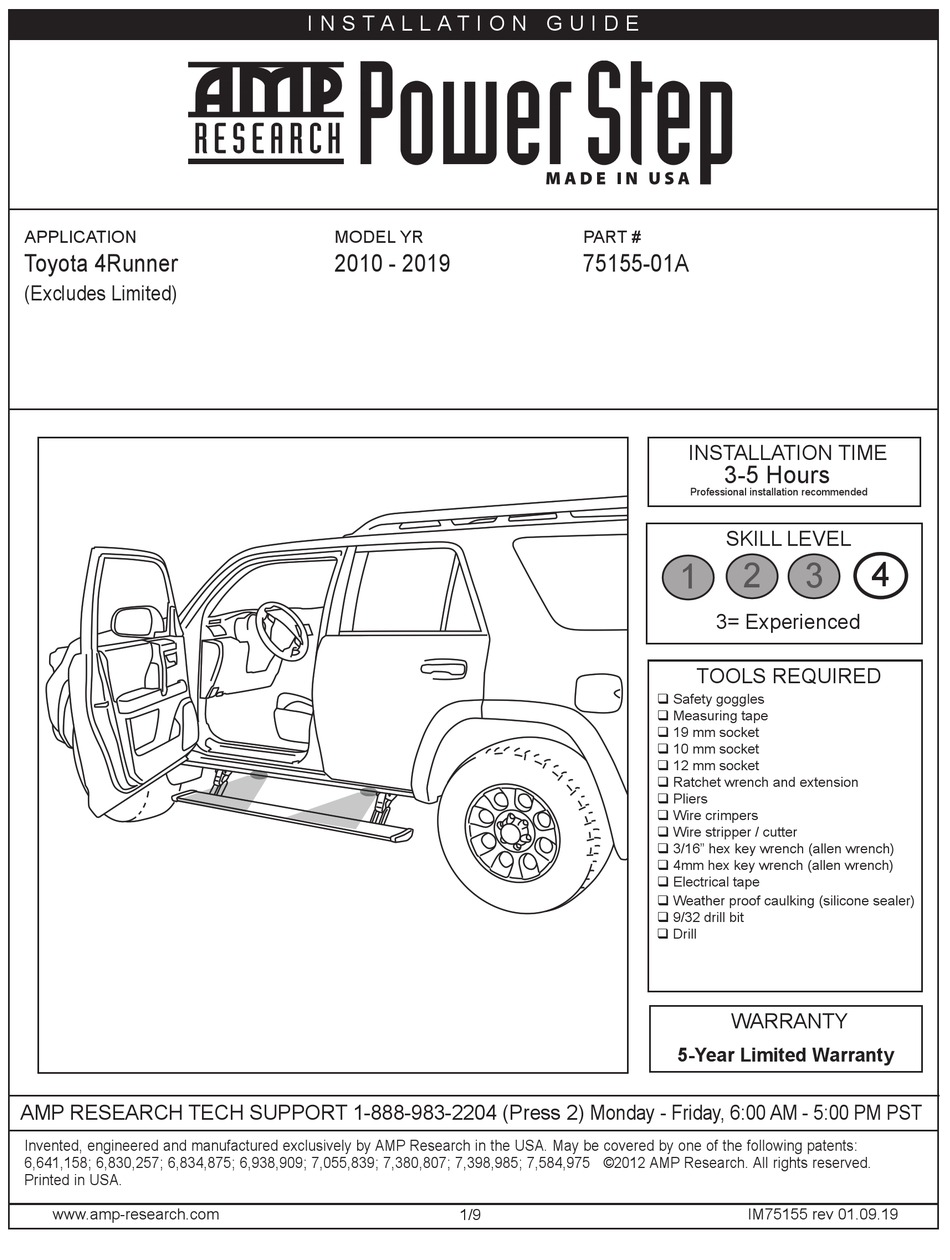

I N S T A L L A T I O N G U I D E
MODEL YR
2010 - 2019
1/9
PART #
75155-01A
INSTALLATION TIME
3-5 Hours
Professional installation recommended
SKILL LEVEL
2
1
3= Experienced
TOOLS REQUIRED
q Safety goggles
q Measuring tape
q 19 mm socket
q 10 mm socket
q 12 mm socket
q Ratchet wrench and extension
q Pliers
q Wire crimpers
q Wire stripper / cutter
q 3/16" hex key wrench (allen wrench)
q 4mm hex key wrench (allen wrench)
q Electrical tape
q Weather proof caulking (silicone sealer)
q 9/32 drill bit
q Drill
WARRANTY
5-Year Limited Warranty
IM75155 rev 01.09.19
4
3
Advertisement
Related Manuals for AMP Research PowerStep 75155-01A
Summary of Contents for AMP Research PowerStep 75155-01A
- Page 1 AMP RESEARCH TECH SUPPORT 1-888-983-2204 (Press 2) Monday - Friday, 6:00 AM - 5:00 PM PST Invented, engineered and manufactured exclusively by AMP Research in the USA. May be covered by one of the following patents: 6,641,158; 6,830,257; 6,834,875; 6,938,909; 7,055,839; 7,380,807; 7,398,985; 7,584,975 ©2012 AMP Research. All rights reserved.
- Page 2 A M P R E S E A R C H P O W E R S T E P – 4 R U N N E R (A) End cap left (x1) (B) End cap right (x1) (C) T-nut insert (x2) (D) Socket cap screw (x2) (E) End cap wedge right (x1) (F) End cap wedge left (x1)
- Page 3 A M P R E S E A R C H P O W E R S T E P – 4 R U N N E R PARTS LIST AND HARDWARE IDENTIFICATION Posi-Tap™ (Red/Grey) Cinch Fastener Flange Head Bolt Flat Head Cap Screw Cable Tie 7”...
- Page 4 A M P R E S E A R C H P O W E R S T E P – 4 R U N N E R Locate forward most set of threaded holes on Using provided flat head cap screws attach frame the frame.
- Page 5 A M P R E S E A R C H P O W E R S T E P – 4 R U N N E R Slide mounting T-nut into position. Slide the Once running board is attached to lower mount board back so that the front of the board is tighten linkages at front and rear.
- Page 6 A M P R E S E A R C H P O W E R S T E P – 4 R U N N E R Pry up front door sill plates and remove kick Pry left foot rest loose at driver side kick panel. panel fasteners and panels on driver and passenger side.
- Page 7 A M P R E S E A R C H P O W E R S T E P – 4 R U N N E R Drivers Side Front: Connect Red Trigger Wire to Red factory Door Ajar signal wire (12 volt negative with door open) using supplied Posi-Tap.
- Page 8 A M P R E S E A R C H P O W E R S T E P – 4 R U N N E R Insert plastic push pin rivets in mounting On each side of the vehicle measure from the front edge of door line on the pinch weld to the specified holes of Motor Cover.
-
Page 9: Final System Check
A M P R E S E A R C H P O W E R S T E P – 4 R U N N E R Close and wrap with conduit and electrical tape. Reinstall the fuse. Secure all loose wires with cable ties, with lamp wires pulled upward to avoid any wire snagging. -
Page 10: Year Limited Warranty
5-YEAR LIMITED WARRANTY AMP RESEARCH warrants this product to be free from defects in material and workmanship for FIVE (5) YEARS FROM DATE OF PURCHASE, provided there has been normal use and proper maintenance. This warranty applies to the original purchaser only.
