APPLICATION
Ford F150 SuperCab
Ford F150 SuperCrew
Ford F150 Regular Cab
AMP RESEARCH TECH SUPPORT 1-888-983-2204 (Press 2) Monday - Friday, 7:00 AM - 5:00 PM PST
Invented, engineered and manufactured exclusively by AMP Research in the USA. May be covered by one of the following patents:
6,641,158; 6,830,257; 6,834,875; 6,938,909; 7,055,839; 7,380,807; 7,398,985; 7,584,975 ©2012 AMP Research. All rights reserved.
Printed in USA.
www.amp-research.com

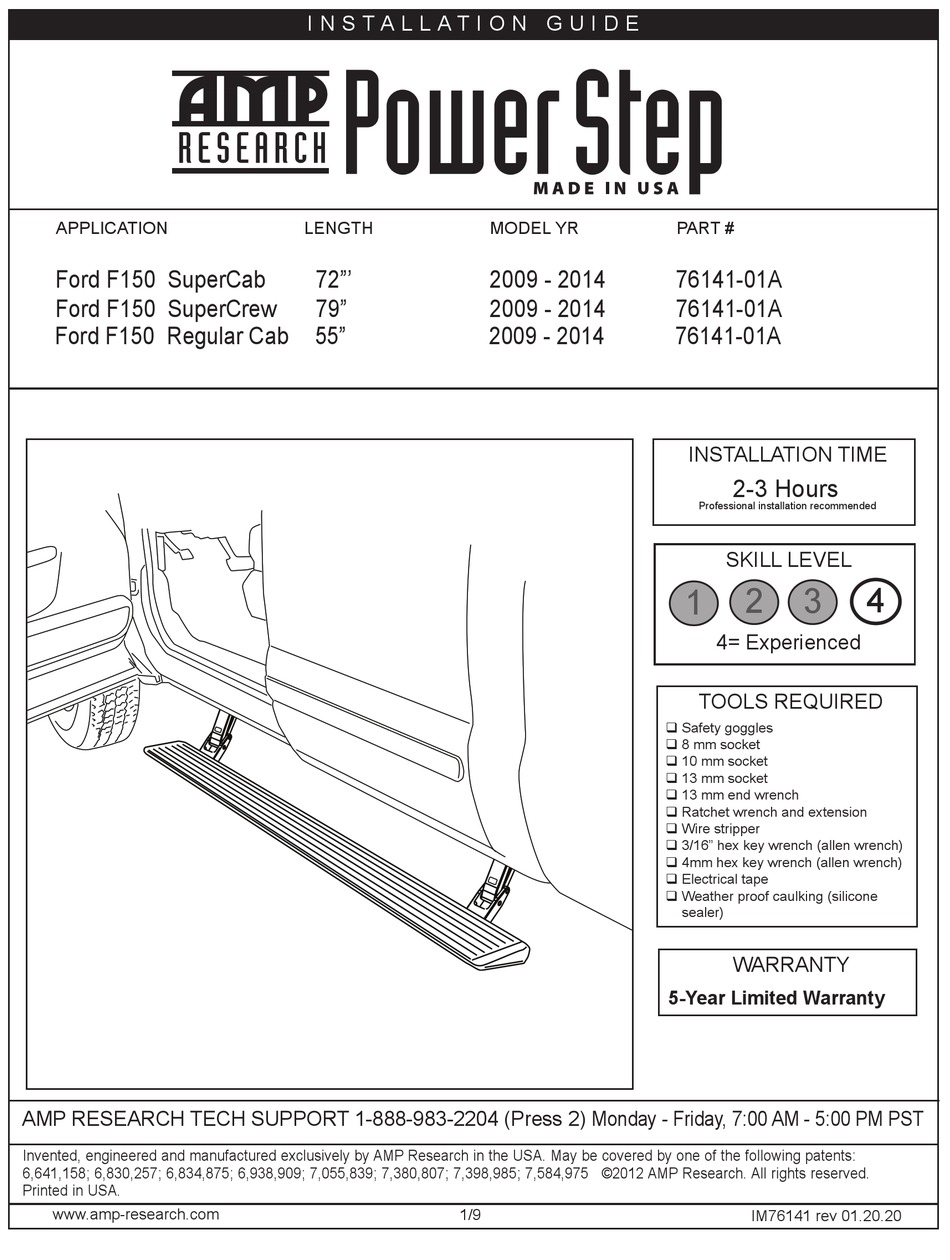

I N S T A L L A T I O N G U I D E
LENGTH
72"'
79"
55"
1/9
MODEL YR
2009 - 2014
2009 - 2014
2009 - 2014
q Safety goggles
q 8 mm socket
q 10 mm socket
q 13 mm socket
q 13 mm end wrench
q Ratchet wrench and extension
q Wire stripper
q 3/16" hex key wrench (allen wrench)
q 4mm hex key wrench (allen wrench)
q Electrical tape
q Weather proof caulking (silicone
5-Year Limited Warranty
PART #
76141-01A
76141-01A
76141-01A
INSTALLATION TIME
2-3 Hours
Professional installation recommended
SKILL LEVEL
2
3
1
4= Experienced
TOOLS REQUIRED
sealer)
WARRANTY
IM76141 rev 01.20.20
4
Advertisement
Table of Contents
Related Manuals for AMP Research POWERSTEP 76141-01A
Summary of Contents for AMP Research POWERSTEP 76141-01A
- Page 1 AMP RESEARCH TECH SUPPORT 1-888-983-2204 (Press 2) Monday - Friday, 7:00 AM - 5:00 PM PST Invented, engineered and manufactured exclusively by AMP Research in the USA. May be covered by one of the following patents: 6,641,158; 6,830,257; 6,834,875; 6,938,909; 7,055,839; 7,380,807; 7,398,985; 7,584,975 ©2012 AMP Research. All rights reserved.
-
Page 2: Exploded View
A M P R E S E A R C H P O W E R S T E P – F O R D F - 1 5 0 INSTALLATION GUIDE Attaching motor to linkage assembly The motors must be attached to the linkage assemblies before continuing the installation process. - Page 3 A M P R E S E A R C H P O W E R S T E P – F O R D F - 1 5 0 Note: Some Applications require modification. Application Cut Length Super Crew 79”...
- Page 4 A M P R E S E A R C H P O W E R S T E P – F O R D F - 1 5 0 PARTS LIST AND HARDWARE IDENTIFICATION Socket cap screw Washer Black Grommet Hex Bolt Hex bolt...
- Page 5 A M P R E S E A R C H P O W E R S T E P – F O R D F - 1 5 0 Locate mounting points; first and last set of holes on the inner sill. Motor Linkage mounts toward the rear of the truck, with the exception of the passenger side on SuperCab trucks.
- Page 6 A M P R E S E A R C H P O W E R S T E P – F O R D F - 1 5 0 Route longer leg of harness down along driver- Connect red and black side wheel well and along frame of vehicle.
-
Page 7: Replace Fuse
A M P R E S E A R C H P O W E R S T E P – F O R D F - 1 5 0 OBD II install: Use Supplied Posi Twist connectors to attach the Plug and Play Module to the Harness. - Page 8 A M P R E S E A R C H P O W E R S T E P – F O R D F - 1 5 0 Attach step, sliding the mounting T-nut into position. Align endcap with edge of front door. Torque 10 ft-lbs.
-
Page 9: Final System Check
A M P R E S E A R C H P O W E R S T E P – F O R D F - 1 5 0 FINAL SYSTEM CHECK Check that all doors activate the PowerStep and the LED lights work when doors open and close. NORMAL OPERATION: When the doors open, PowerStep automatically deploys from under the vehicle. -
Page 10: Year Limited Warranty
5-YEAR LIMITED WARRANTY AMP RESEARCH warrants this product to be free from defects in material and workmanship for FIVE (5) YEARS FROM DATE OF PURCHASE, provided there has been normal use and proper maintenance. This warranty applies to the original purchaser only.
