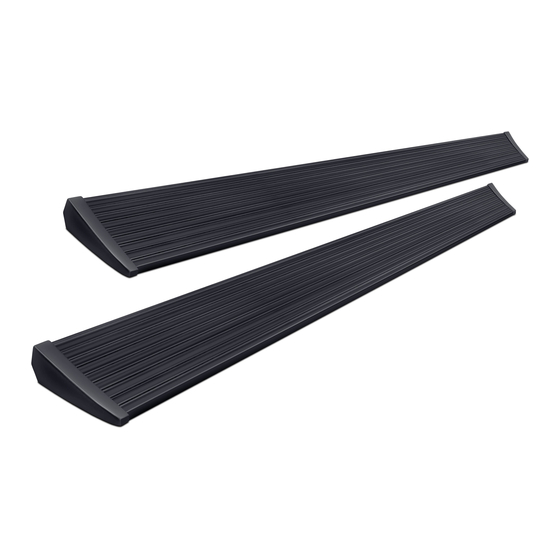

AMP Research Power Step 76331-01A Installation Manual
  1. Manuals
  2. Brands
  3. AMP Research Manuals
  4. Automobile Accessories
  5. Power Step 76331-01A
  6. Installation manual

AMP Research Power Step 76331-01A Installation Manual

Dodge durango 2014–2017
Hide thumbs

Advertisement

Quick Links

Download this manual
APPLICATION
Dodge Durango
Fits these trim models:
R/T
GT
Citadel
SXT
SXT Plus
Fits 4 x 2 and AWD
Does not fit vehicles with gas-tank skidplates or front skidplates installed.
AMP RESEARCH TECH SUPPORT 1-888-983-2204 (Press 2) Monday - Friday, 6:00 AM - 5:00 PM PST
Invented, engineered and manufactured exclusively by AMP Research in the USA. May be covered by one of the following patents:
6,641,158; 6,830,257; 6,834,875; 6,938,909; 7,055,839; 7,380,807; 7,398,985; 7,584,975 ©2012 AMP Research. All rights reserved.
Printed in USA.
www.amp-research.com
I N S T A L L A T I O N G U I D E
YEAR
2014–2017
Does not fit these models:
SRT8
1/13
AMP PART#
76331-01A
INSTALLATION TIME
3-5 Hours
Professional installation recommended
SKILL LEVEL
2
3
1
4= Experienced
TOOLS REQUIRED
q Safety Goggles
q Measuring Tape
q 9/16" Wrench
q 7/16" Wrench
q 10mm Wrench
q 13mm Wrench
q 13mm Socket
q 10mm Socket
q Ratchet Wrench and Extension
q Wire Stripper / Cutter
q 3/16" Hex Key (allen wrench)
q 1/8", 9/32", and 17/32" Drill Bit
q Center Punch
q Anti Corrosion Paint
q Electrical Tape
q Utility Knife
q Small flat blade screwdriver
q Heat gun
q Silicon Spray or equivalent
q Drill
WARRANTY
5-Year Limited Warranty
IM76331 rev 8.10.18
4

Advertisement

loading
Need help?

Need help?

Do you have a question about the Power Step 76331-01A and is the answer not in the manual?

Questions and answers

Related Manuals for AMP Research Power Step 76331-01A

Summary of Contents for AMP Research Power Step 76331-01A

  • Page 1 AMP RESEARCH TECH SUPPORT 1-888-983-2204 (Press 2) Monday - Friday, 6:00 AM - 5:00 PM PST Invented, engineered and manufactured exclusively by AMP Research in the USA. May be covered by one of the following patents: 6,641,158; 6,830,257; 6,834,875; 6,938,909; 7,055,839; 7,380,807; 7,398,985; 7,584,975 ©2012 AMP Research. All rights reserved.
  • Page 2 A M P R E S E A R C H P O W E R S T E P – D O D G E D U R A N G O PARTS LIST AND HARDWARE IDENTIFICATION (A) End cap left (x1) (B) End cap right (x1) (C) T-nut insert (x2) (D) Socket cap screw (x2)
  • Page 3 A M P R E S E A R C H P O W E R S T E P – D O D G E D U R A N G O Hex Flange Socket Cap Hex bolt Posi-Lock Black washer Module Bolt...
  • Page 4 A M P R E S E A R C H P O W E R S T E P – D O D G E D U R A N G O Note: The following 3 steps should be completed first Remove factory wire harness housing from the passenger side pinch weld area.
  • Page 5 A M P R E S E A R C H P O W E R S T E P – D O D G E D U R A N G O Installing Linkages When installing linkages, use the second and fourth set of bolt holes on the pinch weld (see be- low).

  • Page 6: Front Linkage

    A M P R E S E A R C H P O W E R S T E P – D O D G E D U R A N G O Front Linkage (Motor Linkage) Before installing motor to front linkage, mount linkage Mark the center of the forward most slot for the rivet to the second set of holes of the pinch weld from the nut hole.

  • Page 7: Installing Electrical Components

    A M P R E S E A R C H P O W E R S T E P – D O D G E D U R A N G O Installing Electrical Components Route the long wire harness leg along the top of the firewall and Remove the fuse from the Powerstep then down away from the steering shaft and exhaust to sub frame wire harness.
  • Page 8 A M P R E S E A R C H P O W E R S T E P – D O D G E D U R A N G O Remove passenger lower trim under the glove compartment as shown in the following two steps. Wire connector Wire Connector Example Push tab in...
  • Page 9 A M P R E S E A R C H P O W E R S T E P – D O D G E D U R A N G O Now, feed the tube (25) thru the lower/center of the Connect the two purple wires coming from under the dash.
  • Page 10 A M P R E S E A R C H P O W E R S T E P – D O D G E D U R A N G O OBD II Connector located below driver side steering column. OBD II install: Use Supplied Posi Twist connectors to attach the Plug and Play Module to the Harness.
  • Page 11 A M P R E S E A R C H P O W E R S T E P – D O D G E D U R A N G O Insert plug from wire harness (7) onto motor (4). Insert plastic push pin rivets (15) in mounting holes Slide rubber grommet on wire harness into slot of of motor cover(5).
  • Page 12 A M P R E S E A R C H P O W E R S T E P – D O D G E D U R A N G O Installing Step Extrusion Next, mount the step extrusion to linkage assemblies.

  • Page 13: Final System Check

    A M P R E S E A R C H P O W E R S T E P – D O D G E D U R A N G O Check for Power Reinstall fuse. Reinstall fuse. Check that all doors activate the Power Step and the LED Lights work when doors open and close.

  • Page 15: Year Limited Warranty

    5-YEAR LIMITED WARRANTY AMP RESEARCH warrants this product to be free from defects in material and workmanship for FIVE (5) YEARS FROM DATE OF PURCHASE, provided there has been normal use and proper maintenance. This warranty applies to the original purchaser only.
