Exploded View - AMP Research PowerStep 77122-01A Installation Manual

A M P R E S E A R C H P O W E R S T E P

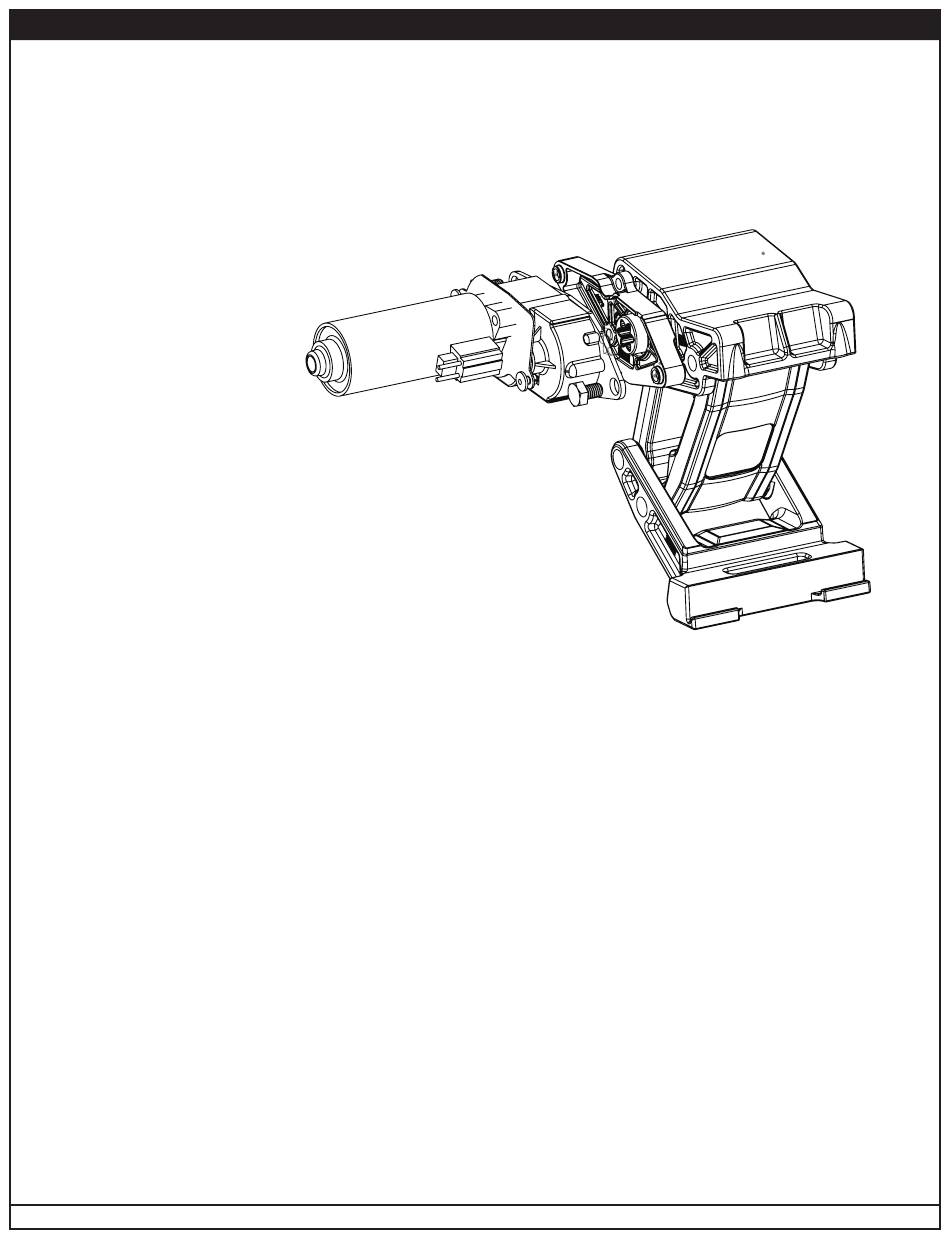

EXPLODED VIEW

• Motor
• Hex Head Bolts
CAUTION: HANDLE WITH CARE.
To ensure our customers receive all components with full integrity, we pack the motors separate from their linkage
assemblies. This requires that the installer position and fasten the motor before continuing with the install. Please
follow the instructions below and handle the assembly carefully.
CAUTION: Dropping the assembly or any excessive impact MAY cause damage to the motor.
Instructions:
1. Position the gear cover in place as shown if not already in place.
2. Seat motor into position on the two mounting bosses. This may require an adjustment of the gear by moving the
swing arms.
3. After seating into place, fasten the motor with the two motor mount bolts with 13mm Wrench. Tighten bolts to 36
in-lbs (4N-m). Do not over torque.
www.amp-research.com
2
B
A
PROPRIETARY AND CONFIDENTIAL
THE INFORMATION CONTAINED IN
THIS DRAWING IS THE SOLE
PROPERTY OF <COMPANY NAME >.
ANY REPRODUCTION IN PART OR AS
NEXT ASSY
A WHOLE WITHOUT THE WRITTEN
PERMISSION OF <COMPANY NAME>
IS PROHIBITED.
2
– J e e p W r a n g l e r J K
T M
DIMENSIONS ARE IN INCHES
TOLERANCES:
FRACTIONAL
ANGULAR: MACH BEND
TWO PLACE DECIMAL
THREE PLACE DECIMAL
MATERIAL
FINISH
USED ON
DO NOT SCALE DRAWING
APPLICATION
2/11
1
NAME DATE
DRAWN
CHECKED
ENG APPR.
MFG APPR.
Q.A.
COMMENTS:
SIZE
DWG. NO.
jeep jk PSXL die cast linkage assembly A
SCALE:1:8 WEIGHT:
1
IM77122 rev 01.21.20
