Heating Capacity - SMC Networks HRZF010-WS Operation Manual

DOC1046494-2
Chapter 8 Appendix

8.1.3 Heating Capacity

◼ HRZF010-WS
*When pump inverter is operating at frequency of 60Hz (maximum)
◼ HRZF010-W1S
*When pump inverter is operating at frequency of 60Hz (maximum)
8.1 Specification
8-4

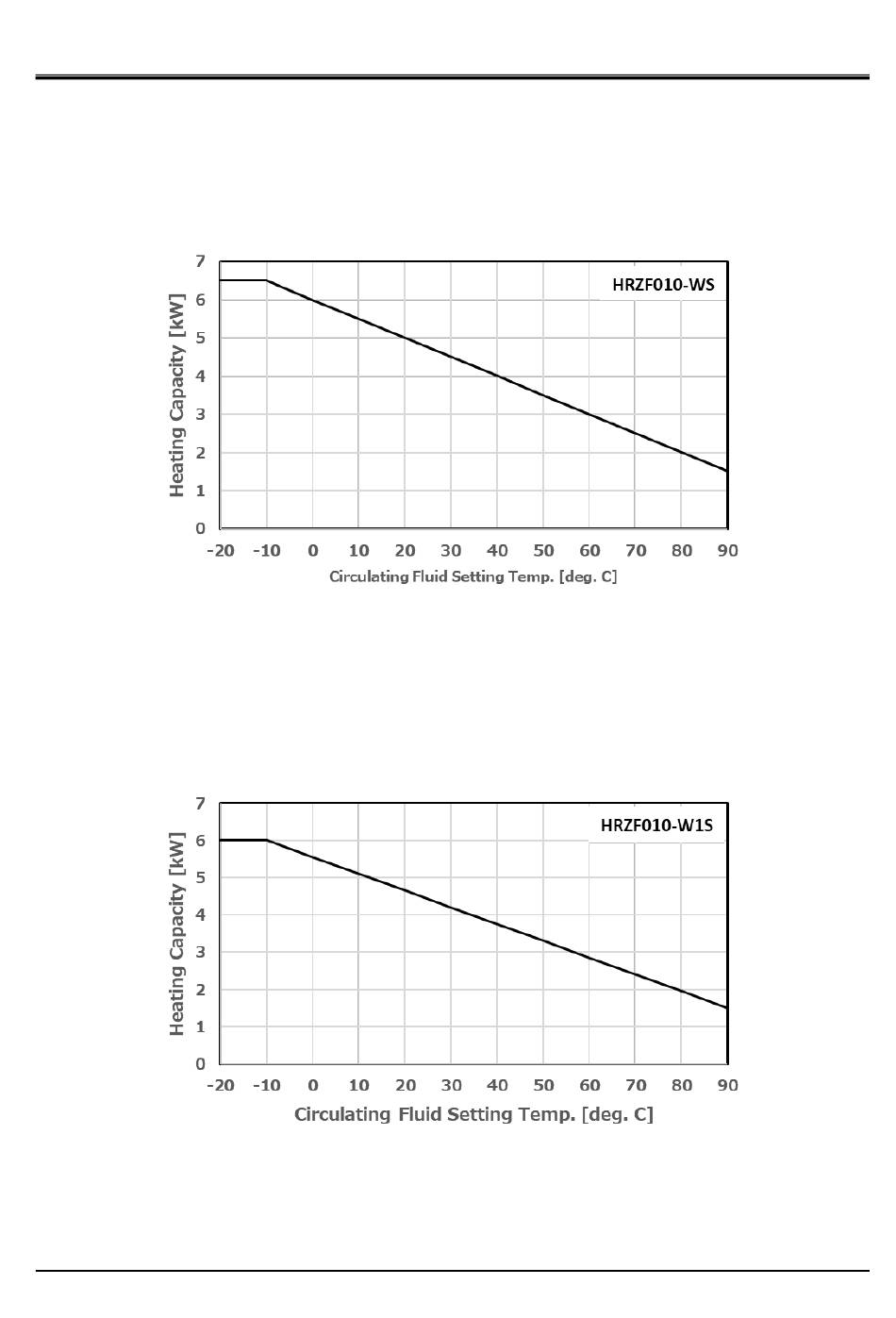

Fig. 8-3 Heating Capacity of HRZF010-WS
Fig. 8-4 Heating Capacity of HRZF010-W1S
Fluid : Fluorinated Fluid
Flow Rate : Rated Flow
Fluid : 60% Ethylene Glycol Aqueous Solution
Flow Rate : Rated Flow
