4
Press the [ENT] key
The cursor is now appeared on the current value for
TEMP SP, which enables change of the temperature
set value.
5
Use the arrow keys ([▲], [▼], [ ]) to change
the temperature to 34.1 deg. C.
[▲] key: Used to add one value on which the cursor is
placed.
[▼] key: Used to subtract one value on which the
cursor is placed.
[ ] key: Used to move the cursor to the right.
6
Press the [ENT] key after changes
The cursor disappears and the set value is
fixed at 34.1°C.
HRZF Series
Chapter 5 System Operation

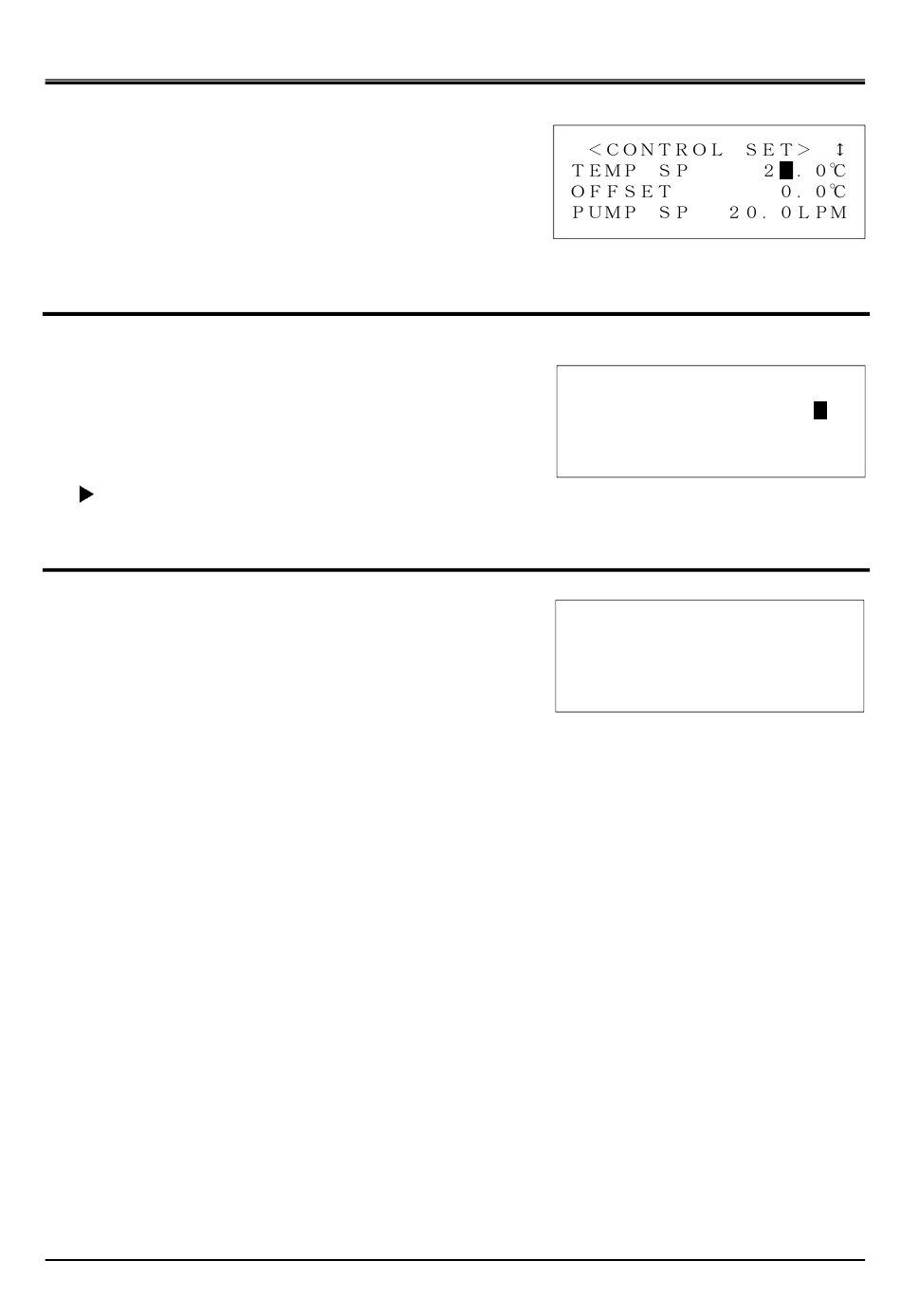

Fig. 5-41 Cursor Displayed
 <CONTROL SET>  ↕
TEMP SP    3 4.1℃
OFFSET      0.0℃
PUMP SP  20.0LPM
Fig. 5-42 Change of Set Value
 <CONTROL SET>  ↕
TEMP SP    3 4.1℃
OFFSET      0.0℃
PUMP SP  20.0LPM
Fig. 5-43 Setting Confirmation
5.4 Examples of System Operation
DOC1046494-2
5-37
