8.6 Anchor Bolt Mounting Position

Lock the brakes on casters (2 pcs. on the front) and attach the anti-seismic bracket (optional:
HRZ-TK002) to secure this system.
Anti-seismic bracket is an optional accessory, which is required for the
installation of this system (HRZ-TK002).
It is your responsibility to prepare anchor bolts suitable for your floor
material. M12-anchor bolts (4 pcs.) are required.
Anti-seismic Bracket(Optional)
HRZF Series

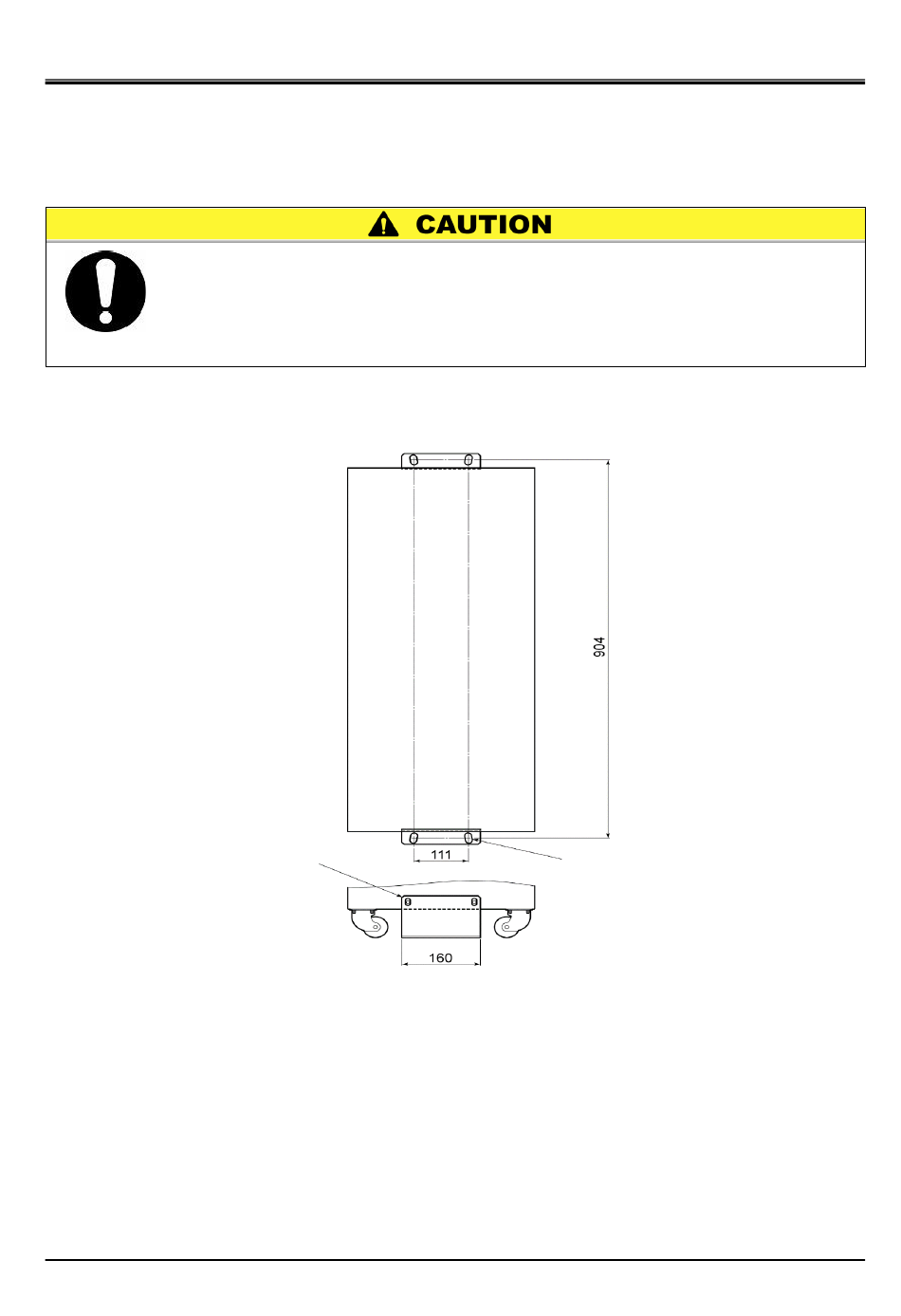

Fig. 8-14 Anchor Bolt Position
Chapter 8 Appendix
Anchor Bolt Position
4xφ14
8.6 Anchor Bolt Mounting Position
DOC1046494-2
8-17
