5.4.3 Example 3: PUMP IV is switched from "FLOW" to "FREQ".

Press the [SEL] key to display the "Menu Screen"

With the use of the arrow keys ([▲], [▼]), move

the cursor to "1.SETTING" and press the [ENT]

key.

The "Setting Screen" is displayed.

With the use of the arrow keys([▲], [▼]),move

the cursor to "3.INITIAL SET" and press the

[ENT] key.。

The 「Initial Setting Screen 1」 is displayed.

HRZF Series

POWER ON

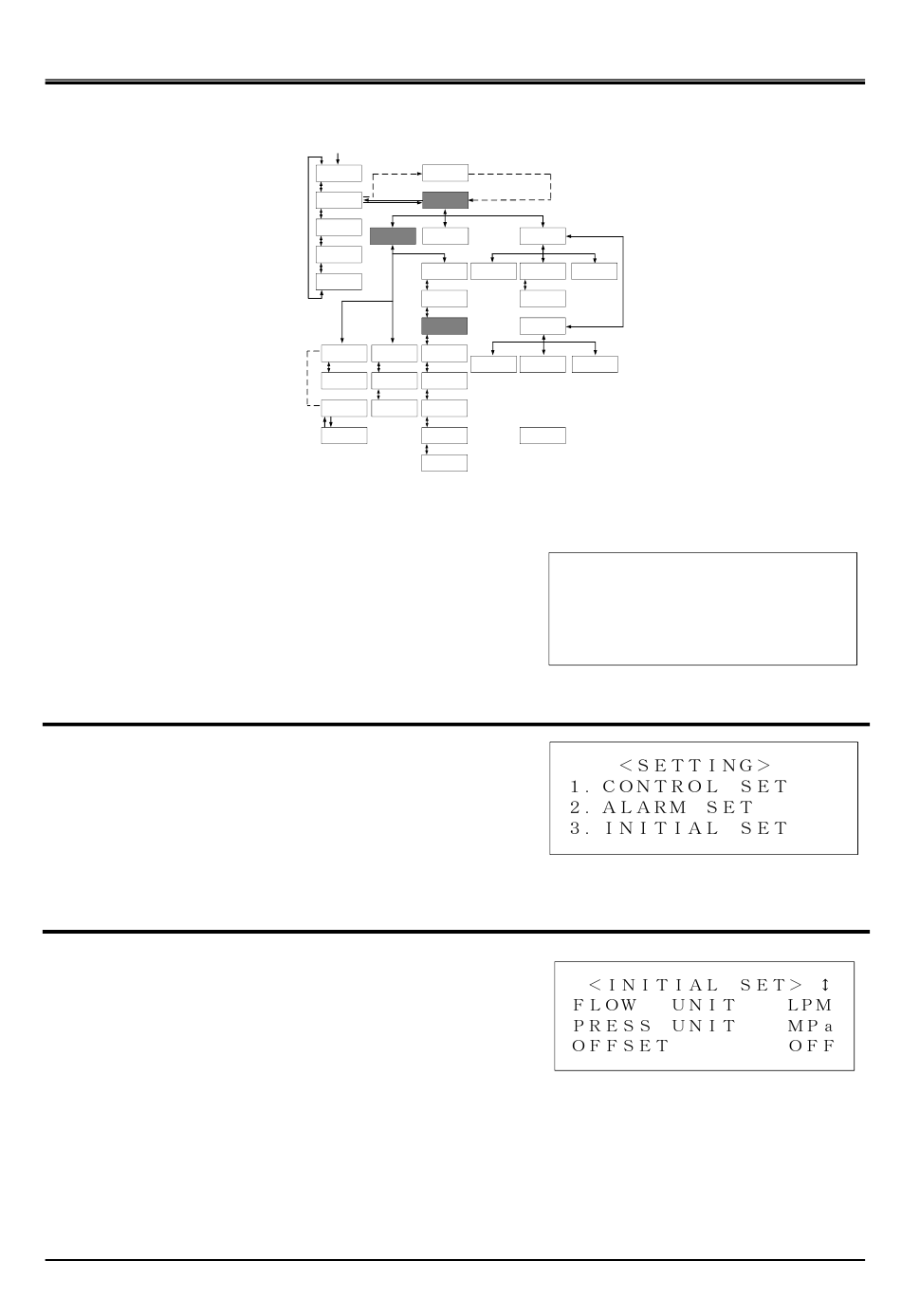

Fig. 5-49 PUMP IV Switched

Chapter 5 System Operation

　　　　　＜ＭＥＮＵ＞　　　　　

１．ＳＥＴＴＩＮＧ

２．ＲＥＭＯＴＥ　ＭＯＤＥ

３．ＭＡＩＮＴＥＮＡＮＣＥ

Fig. 5-50 「Menu Screen」

Fig. 5-51 「Setting Screen」

Fig. 5-52 「Initial Setting Screen 1」

5.4 Examples of System Operation

DOC1046494-2

5-39
