Chapter 5 System Operation
5.4.2 Example 2: Communication mode is switched from "LOCAL"
to "SER REMOTE".
1 [Press the [SEL] key to display the
"Menu screen"
2
With the use of the arrow keys ([▲], [▼]),
move the cursor to "2. REMOTE MODE" and
press the [ENT] key.
The "Mode Selection Screen" is displayed.
3 Press the [ENT] key
The name of current mode "LOCAL" flashes and
enable to switch the setting.
4 Use the arrow keys ([▲], [▼]),to select
"SER REMOTE".
5
Prees the [ENT] key
5.4 Examples of System Operation
5-38
POWER ON

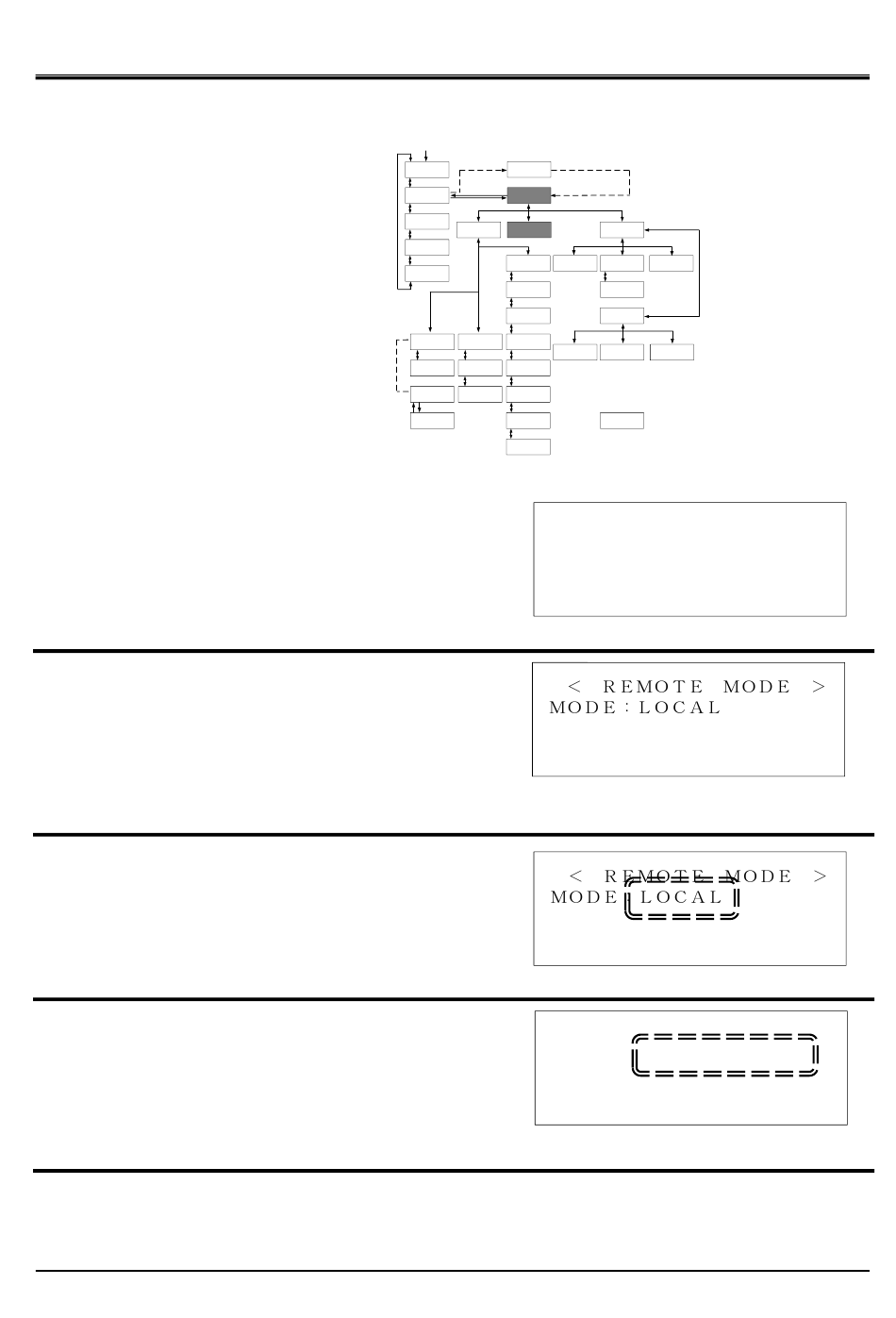

Fig. 5-44 Setting of Communication Mode
＜ＭＥＮＵ＞
１．ＳＥＴＴＩＮＧ
２．ＲＥＭＯＴＥ ＭＯＤＥ
３．ＭＡＩＮＴＥＮＡＮＣＥ
Fig. 5-46 Setting of Communication Mode
＜ ＲＥＭＯＴＥ ＭＯＤＥ ＞
ＭＯＤＥ：ＳＥＲ ＲＥＭＯＴＥ
D E V I C E ＡＤＲＳ． １ＣＨ
Fig. 5-45 Menu Screen
Fig. 5-47 Mode Selection Screen
Fig. 5-48 Set to SER REMOTE
