8
Attach the breaker cover to the breaker.
Align the terminal cover with the barrier mounting groove on the breaker body and push it
all the way in.
Fasten the screws (2 pcs) (recommended torque 0.5 to 0.6 N-m).
9
Attach the front panel.
10
Connect the power cable to the power breaker on customer side (primary side).
11

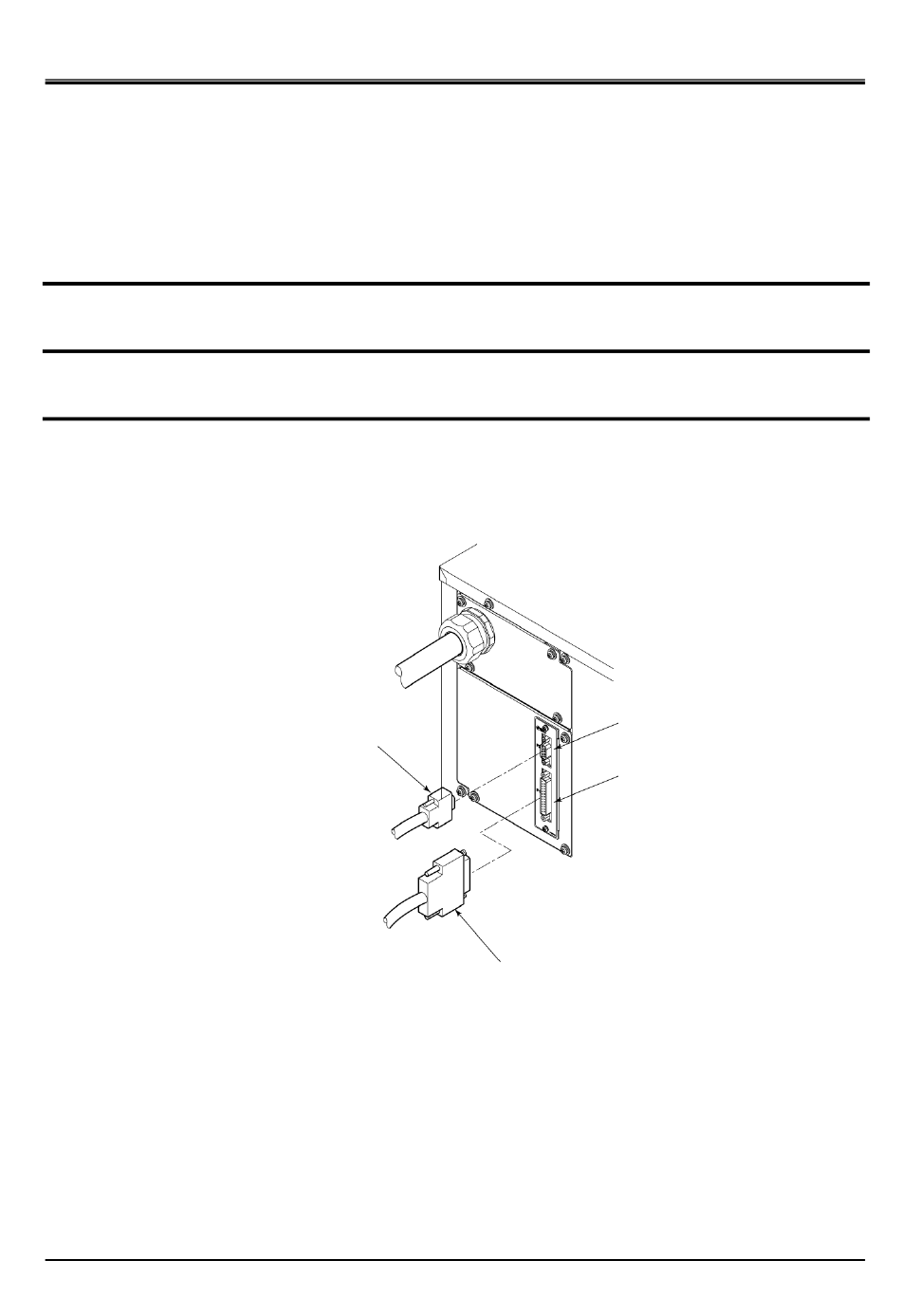

Connect the communication cables with P1 and P2.
Serial RS-485 Communication Cable
HRZF Series
Chapter 3 Transporting and Installation
Contact Signal Cable
Fig.3-9 Signal Line Mounting
DOC1046494-2
P2 (D-sub 9Pin Female)
P1 (D-sub 25Pin Female)
3.3 Procedure for Installation
3-11
