5.3.6 Alarm Display Screen

In the event of an error in this system, the current screen is switched to the "Alarm Display
screen" to display the relevant alarm code and message. The "Alarm Display screen" is
displayed only if an error is raised. See "6.2 Troubleshooting" on page 6-2 for alarm numbers
and messages.

5.3.7 Menu Screen

No.
1
2 REMOTE MODE
3 MAINTENANCE
HRZF Series

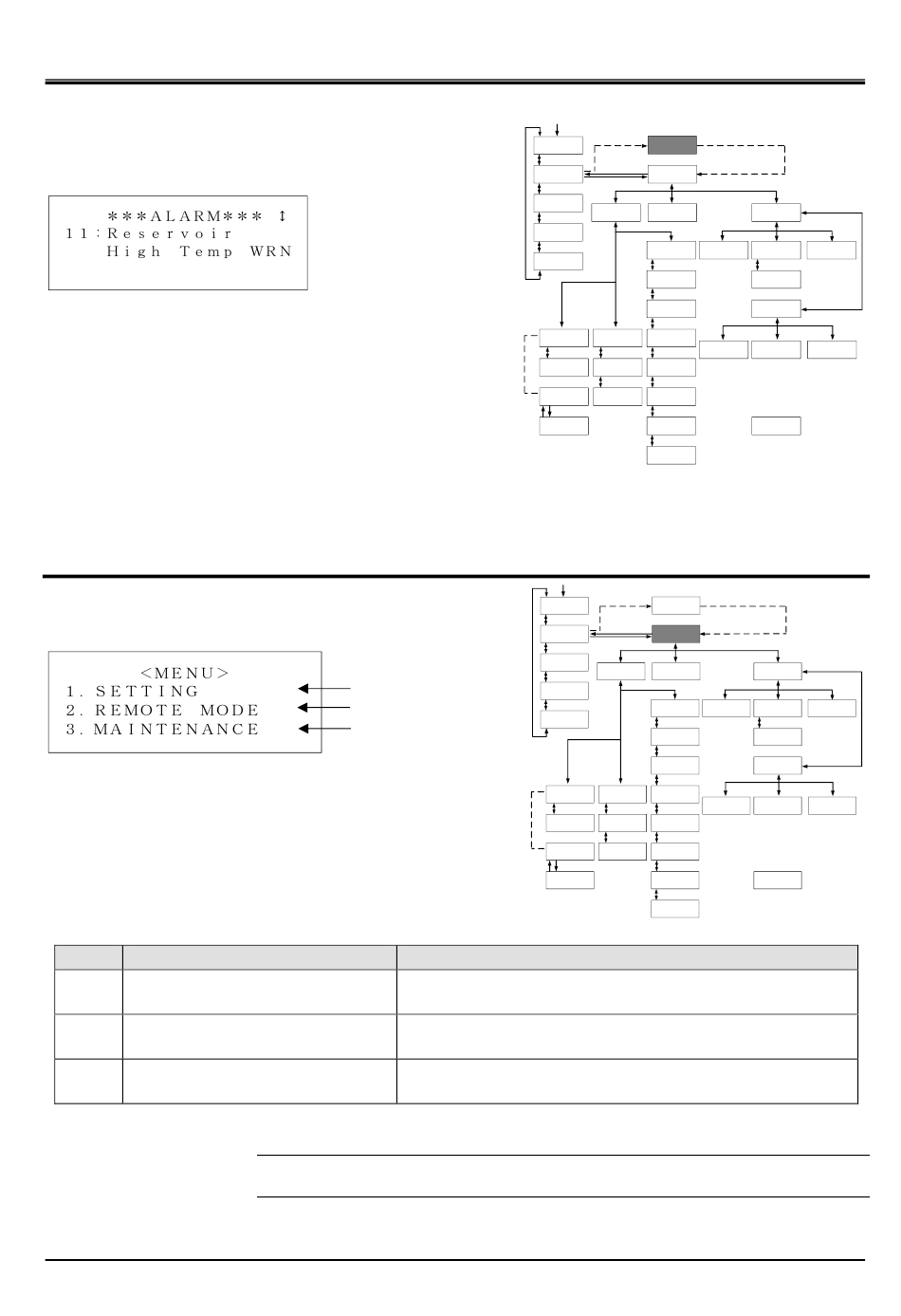

Fig.5-8 Alarm Display Screen
1
2
3
Fig.5-9 Menu Screen
Table 5-7 「Menu Screen」
Item
SETTING
【Tips】
[▲] or [▼] key is used for selecting "Item".
POWER ON
POWER ON
Descriptions
Switches to the "Setting Screen" with the press of
the [ENT] key.
Switches to the "Mode Selection Screen" with the
press of the [ENT] key.
Switches to the "Maintenance Screen 1" with the
press of the [ENT] key.
