5.3.31 Maintenance Screen 7
No. Item
1 MSG
2 PURGE TIME
3 PURGE MODE
HRZF Series
1
2
3

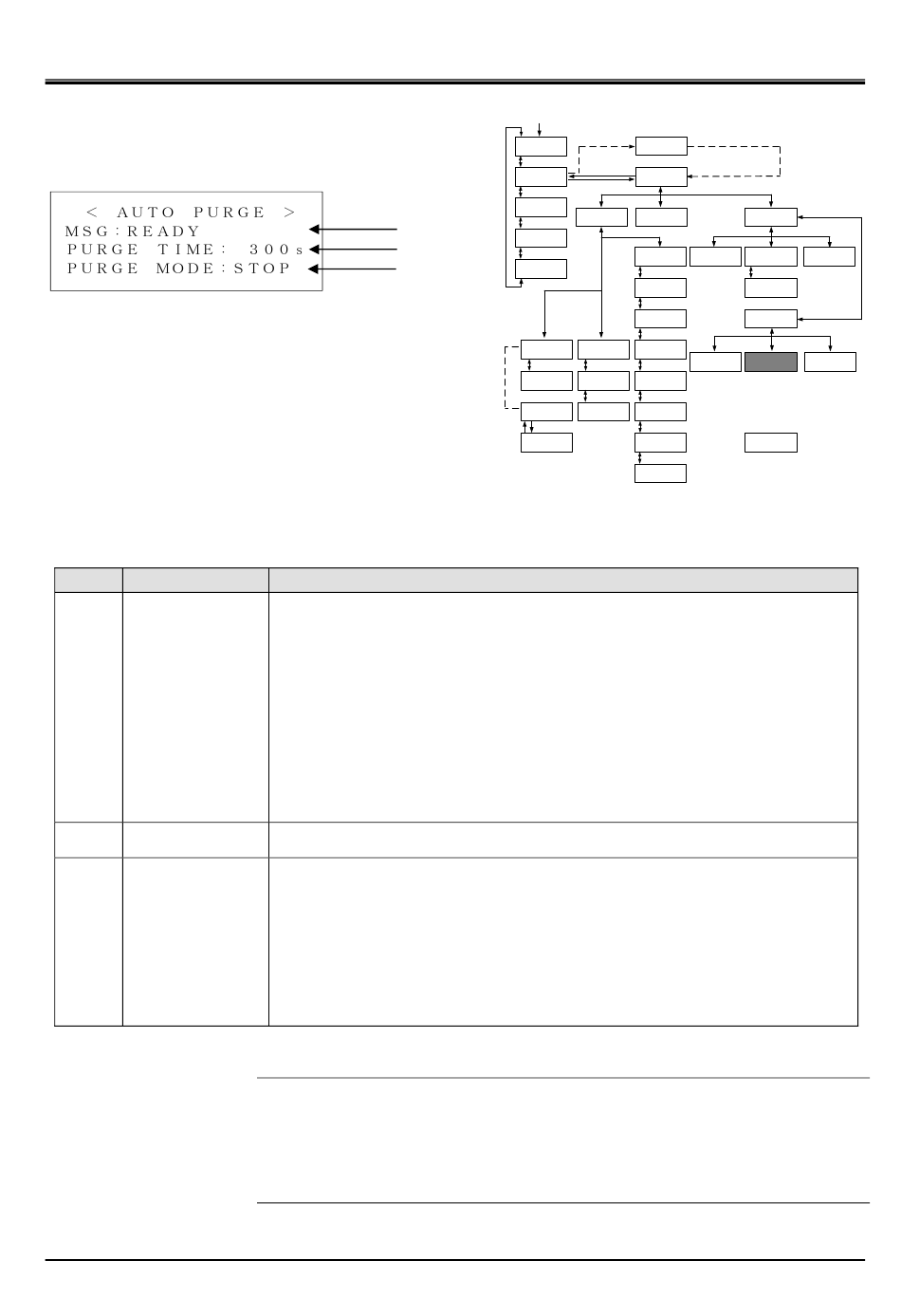

Fig. 5-34 Maintenance Screen 7
Table 5-31 「Maintenance Screen 7」
Indicates the status of circulating fluid automatic collection.
READY : Ready to collect.
PURGE START : During collection.
FINISH : Collection finished normally.
TIME OUT : Collecting time exceeds setting value.
IN RUNNING : This system during operation.
ALARM : Alarm raised to this system.
TEMP OUT : Circulating fluid temp. is out of range for starting
collection.
Setting value of PURGE TIME.
Start/Stop circulating fluid automatic collection.
After pressing [ENT] key, pressing either [▲] or [▲] key to select
Start/Stop. Then automatic collection Start/Stop is available after
pressing [ENT] key to fix the setting.
START : Start collection.
STOP : Stop collection.
【Tips】
It is displayed only if the Circulating Fluid Automatic Collector (optional)
is provided.
When MSG is "READY", Start/Stop of circulating fluid automatic collection
is available.
