Chapter 1 Safety
◼ Lockout Procedure
All service personnel must observe the restrictions applied during lockout
and are required to perform lockout in accordance with this procedure. No
service personnel is allowed to start, energize, or use the locked out
system.
1 Turn the breaker handle to 'OFF 〇'
2
Push the end face of the breaker handle and
pull out the lock attachment.
Hold the breaker handle with hand.
The handle turns back to 'OFF O' if released.
3 Lock the lock mechanism part with the padlock.
The lock mounting does not close.
◼ Releasing Lockout
1
Remove the padlock from the lock mechanism part.
2 Push the end face of the breaker handle and return the lock mounting.
The lock mounting part closes.
1.6 Safety Measures
1-16

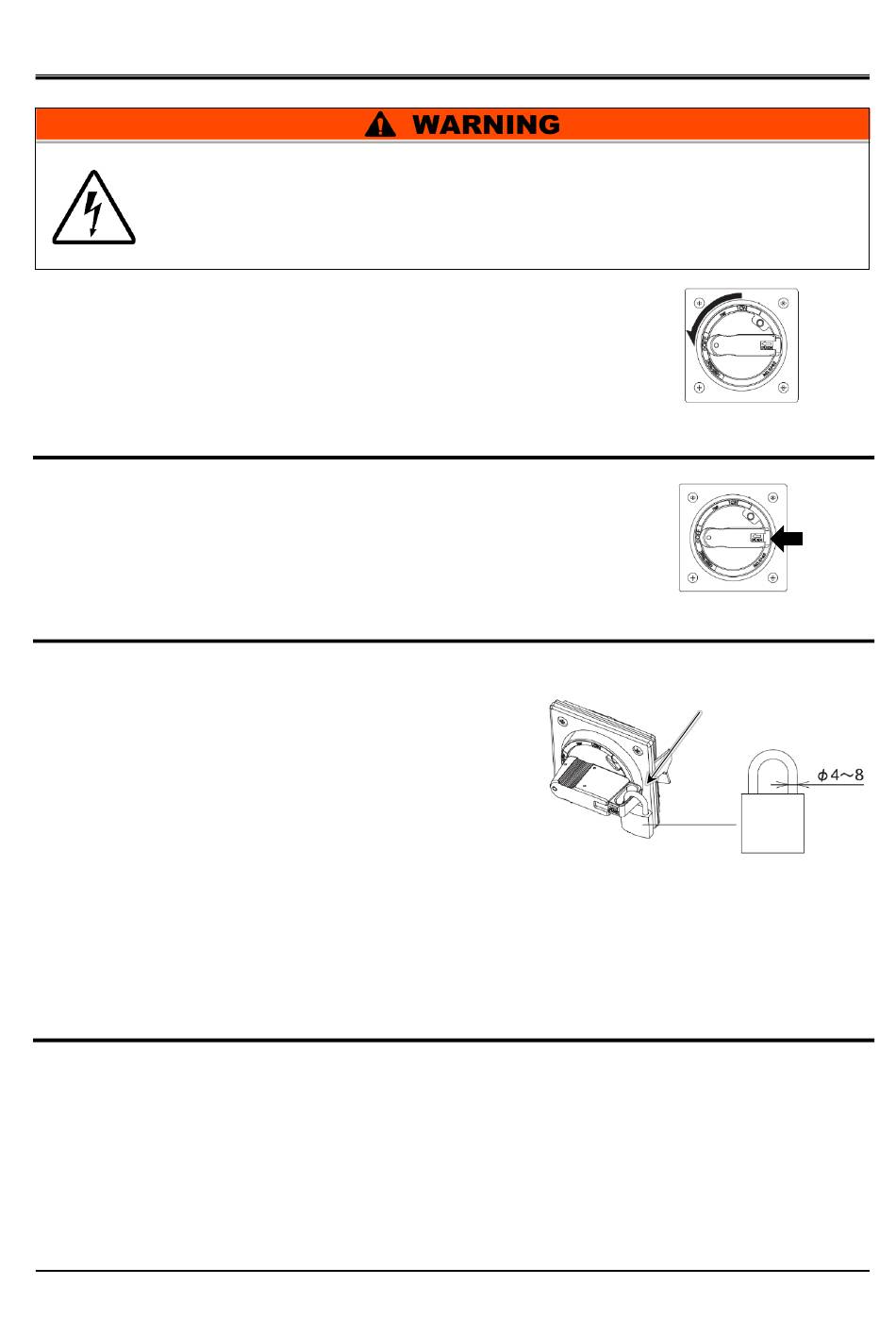

Fig.1-16 Breaker Handle at "OFF 〇"
Fig.1-17 Breaker Handle
Padlock
Fig.1-18 Breaker Lock
Push
