MTI Designer Series Installation And Operation Manual page 9

Installation and Operational
Airbath Installation
Remote Installation Of Air System Components (optional)
Do not attempt to relocate whirlpool pumps. Whirlpool pumps may be removed temporarily for ease of installation, but must
be reconnected in factory-installed location. Be sure to tighten union nuts and secure feet to the mounting blocks. Ground each
pump before testing. See Fig. 1 on pg. 6.

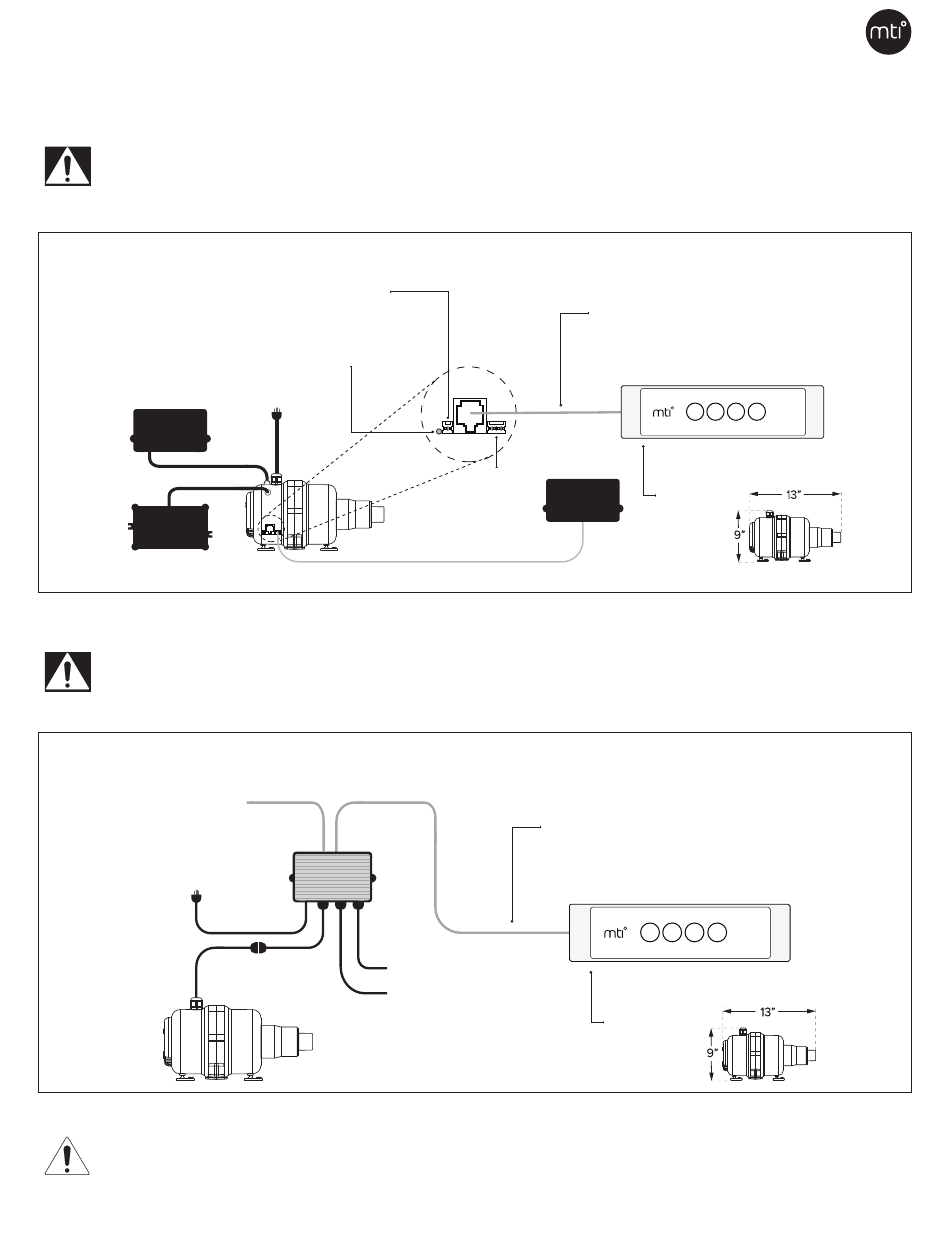

Elite Airbath (systems 4, 6)
Chroma-
therapy
Control
Radiance
Box
For
System 4R
Fig. 4
Do not attempt to relocate whirlpool pumps. Whirlpool pumps may be removed temporarily for ease of installation, but must
be reconnected in factory-installed location. Be sure to tighten union nuts and secure feet to the mounting blocks. Ground each
pump before testing. See Fig. 1 on pg. 6.
Airbath with Ultra Whirlpool (systems 8, 9)
to LED
light box
to 110V
Fig. 5
IMPORTANT! Never under any circumstances modify the power cords.
Manual •
(continued)
Water Sensor Port
To the drain (underside of tub)
Thermostatic Cable
Coupled to heating pad
System 1R only
To 110V
EVO
Control
to control box
for pump 2
to pump 1
DO NOT SPLICE POWER CABLES!
Collection •
Designer Whirlpool and Airbaths
Ethernet Cable
To keypad
For
System 6
TMS-P Port
TMS-P
System 6 only
Timer
Control
Ethernet Cable
to keypad
Keypad
Style varies
by system
13" x 8" x 9"
Keypad
13"
Style varies
by system
9"
Blower
13" x 8" x 9"
13"
9"
Blower
mtibaths.com / 9
