Ultra Whirlpool With Tsubo Massage - MTI Designer Series Installation And Operation Manual

Installation and Operational
Operation Instructions
Keypad style and functions may vary according to tub model, therapeutic features and selected options. Whirlpool packages vary and
may be personalized to include optional micro jets (See pg. 26).
Ultra Whirlpool
with Tsubo Massage
System 5 with 12 or more micro jets
WHIRLPOOL

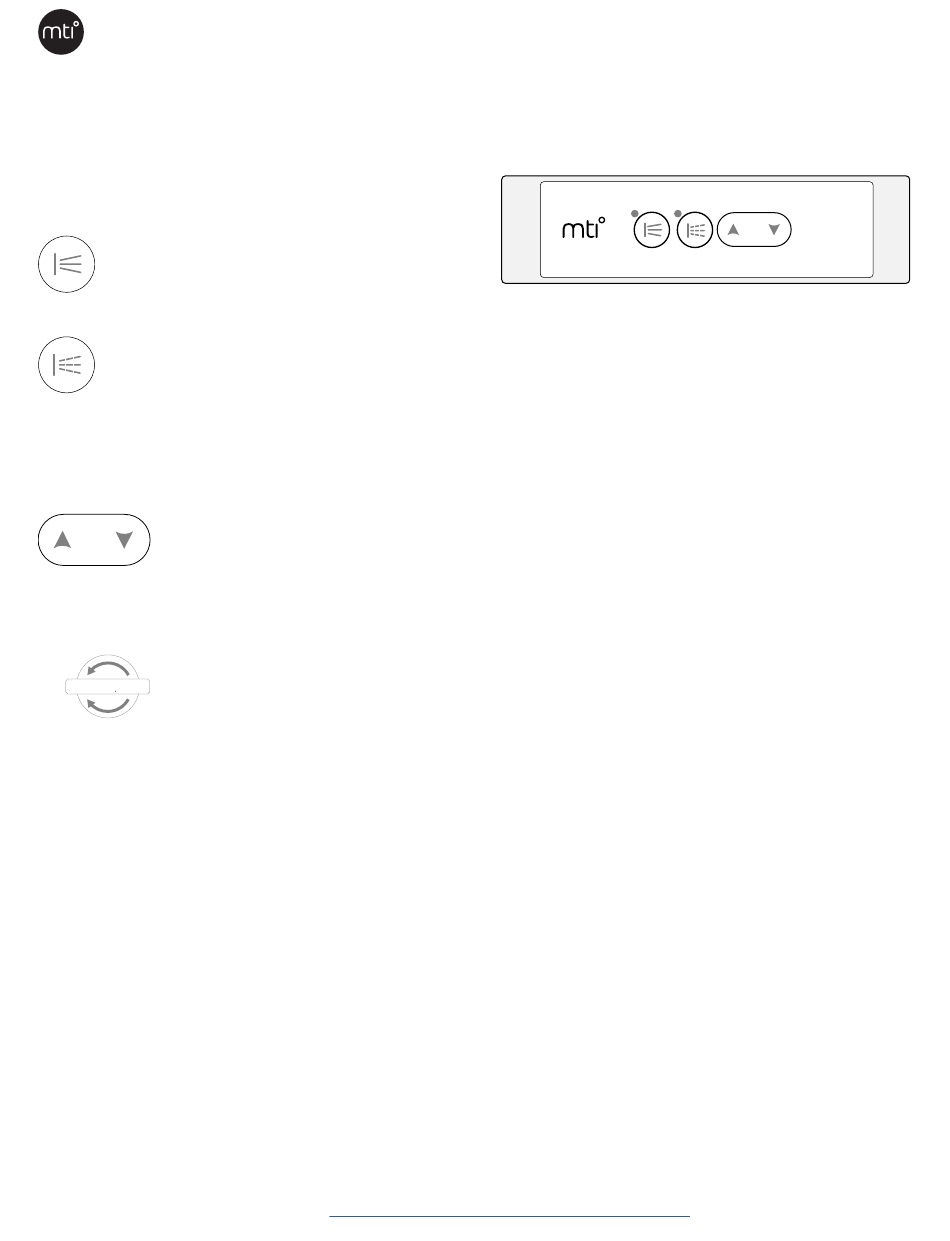

1st Press: Pump starts. LED indicator light on.
2nd Press: Pump stops. LED indicator light off.
TSUBO MASSAGE (micro jets)
IMPORTANT! Cluster control diverter must be in the "OFF" position before turning on whirlpool, otherwise
water from these high-powered jets is likely to splash outside the bath.
1st Press: Tsubo pump starts. LED indicator light on.
2nd Press: Tsubo pump stops. LED indicator light off.
Press and Hold for 3 Seconds: Tsubo sequential pulse mode starts. LED indicator light flashes.
Press and Hold for 5 Seconds: Tsubo pump stops. LED indicator light off.
TSUBO MODE / PATTERN CONTROL
Use arrow buttons to select one of seven different Tsubo massage patterns.
mode
Not available when the Tsubo is in sequential pulse mode.
NOTE: This system is equipped with a Tsubo lock-out protection mode. See details on pg. 24.
MICRO JETS OPERATION (cluster control diverter)
O N
ADJUSTMENT: A single diverter knob is dedicated to each set of micro jets. Gradually turn this cluster control
OFF diverter to increase pressure from the "OFF" position.
⁴ MTI will not be responsible for water damage in areas outside of the tub caused by improper operation.
20 / mtibaths.com
Manual •
Designer
(continued)
Visit https://mtibaths.com/media-news/videos/support-videos/
Collection •
Whirlpool and Airbaths
mode
for detailed operation instructions.
