Thank you for choosing an MTIS BASICS bath. You have purchased a
high-quality acrylic bath, hand-crafted with pride in the USA. We know it will
give you many years of pleasure. The instructions in this booklet will provide
you with the information you need to install and operate this unit. This
information is also available on mtiwhirlpools.com. Our customer service
department is available to answer any additional questions you may have
pertaining
to
the
1-800-783-8827 to speak to our Service Department. For faster service,
please have your

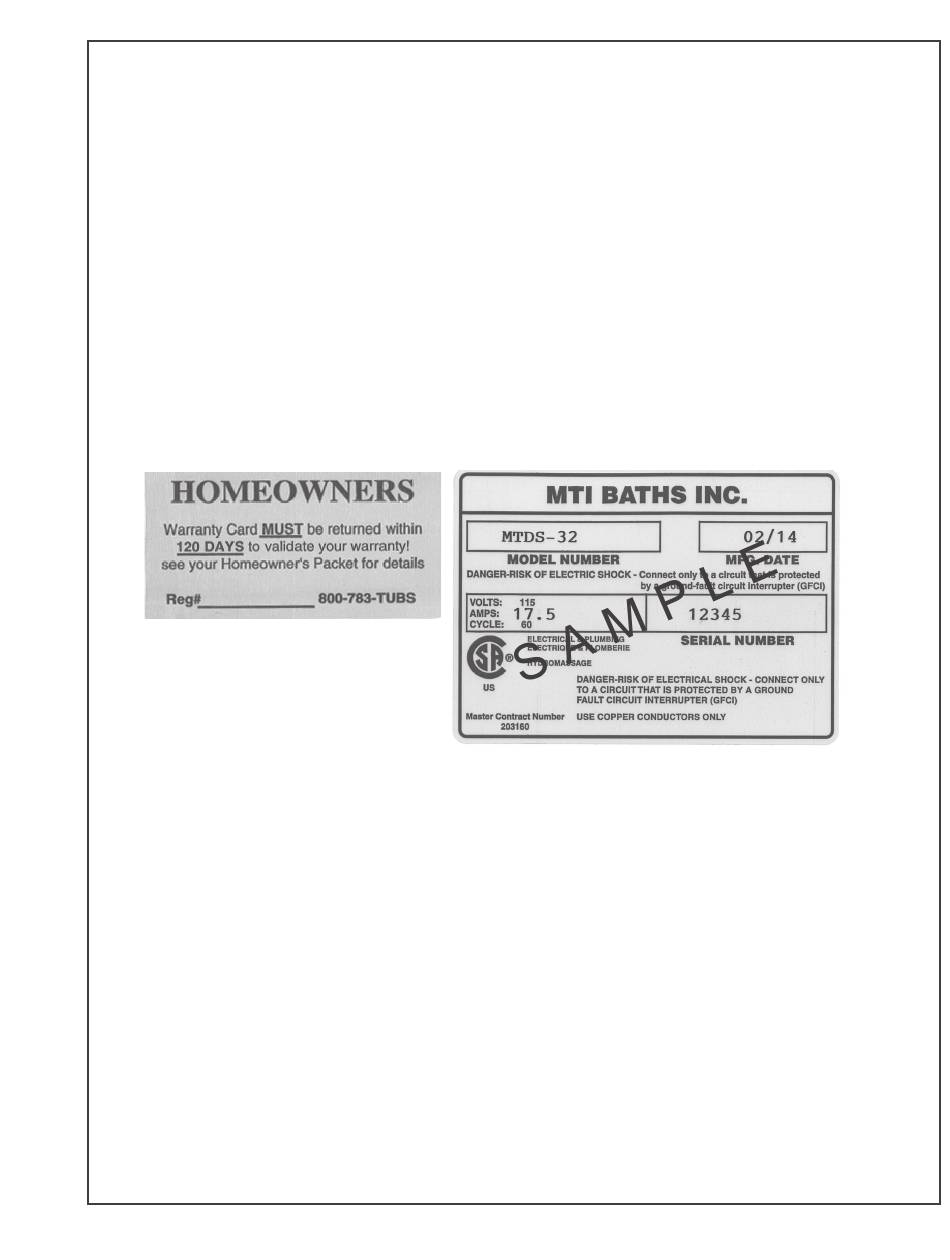

calling. The registration number can be found on the CSA/UL label adhered to
the exterior surface of the tub. This sticker is typically placed on the exterior
wall of the tub several inches above the pump or blower. For free standing tubs,
the lable will be on the inside surface of the access panel.
IMPORTANT: Locate and note
your serial number on the cover
of this manual for any future
service needs.
I M P O R T A N T S A F E T Y
I N S T R U C T I O N S
WARNING - WHEN USING ELECTRICAL PRODUCTS, BASIC PRECAUTIONS
SHOULD BE FOLLOWED, INCLUDING THE FOLLOWING:
This manual contains information and instructions for proper operation and maintenance of your MTI bath.
Failure to follow these instructions could result in personal injury, electrical shock or fire.
INSTRUCTIONS PERTAINING TO RISK OF FIRE, ELECTRIC SHOCK, OR INJURY
TO PERSONS.
READ AND FOLLOW ALL INSTRUCTIONS
▲
!
!
Do not permit children to use this unit unless they are closely supervised by an adult at all
times. Supervision is also required when bath is used by an elderly or handicapped individual.
▲
Use this unit only for its intended use as described in this manual. Do not use attachments
!
!
not recommended by the manufacturer. Never drop or insert any object into any opening.
OWNER'S MANUAL
AND INSTALLATION GUIDE
installation
and
warranty registration number (serial number) ready when
operation
of
your
bath.
Call
Advertisement
Table of Contents
Related Manuals for MTI MBSOFSX6636WH
Summary of Contents for MTI MBSOFSX6636WH
- Page 1 WARNING - WHEN USING ELECTRICAL PRODUCTS, BASIC PRECAUTIONS SHOULD BE FOLLOWED, INCLUDING THE FOLLOWING: This manual contains information and instructions for proper operation and maintenance of your MTI bath. Failure to follow these instructions could result in personal injury, electrical shock or fire.
- Page 2 ▲ Do not operate this unit without guard over the suction fitting. ▲ The water in a whirlpool should never exceed 40˚ C (104˚ F). Water temperatures between 38˚ C (100˚ F) and 40˚ C (104˚ F) are considered safe for a healthy adult. Use time should be limited to approximately 10 minutes, followed by a shower to cool down.
-
Page 3: Table Of Contents
16” x 14” for installation and future servicing of the equipment. MTI Baths, Inc. will not authorize any service unless clear access is available. Access from a crawlspace or incomplete access to all equipment may result in... -
Page 4: Important Measurements
* Please measure actual tub prior to building any decking or framing. Specifications are I: Inside bowl width at bottom of bowl subject to change without notice. MTI Baths J: Inside bowl length at top of bowl is NOT responsible for any preparatory labor or materials. -
Page 5: Installation Instructions
6. If any leaks or operating problems are discovered, do not complete installation until prob- lems are resolved. MTI will not be responsible for any costs involved with removing or reinstalling the tub, or for the costs of any surrounding materials. - Page 6 The tub must be leveled by the rim, and supported by the bedding (or MTI foam base) under the full length of the tub bottom. It is recommended to use a plastic sheet barrier on top of and underneath the bedding compound. Carefully lower tub into place. Shift tub side to side to settle into compound.
- Page 7 2. Drill a minimum of three holes on each side of the tub flange to align with selected wall studs. Place enough bedding compound (MTI recommends Quickrete Sand Mix) to fill void between the bottom of the tub and floor. If your tub was ordered with the pre-leveled foam option, no bedding compound is necessary.
- Page 8 2. A pre-leveled foam base comes standard on all MTI air baths and is optional for soaker and whirlpools tubs. Pre-leveled foam base negates the need to wet bed on a flat and level surface. Check the sub- floor and tub for level before installing.

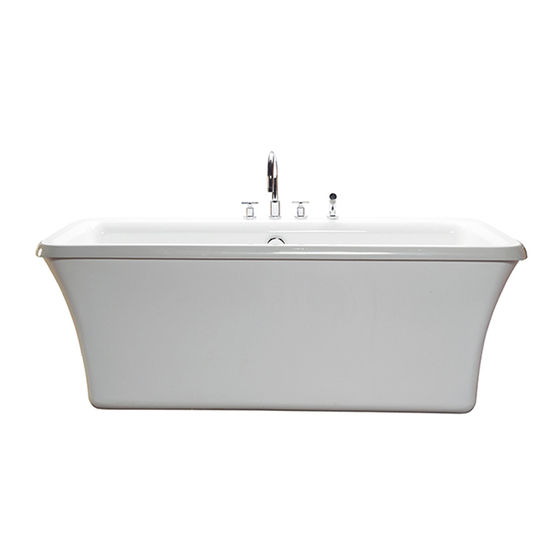

- Page 9 It provides access for installation of the waste and overflow. It is held in place by covered stainless steel screws. Fixtures- No fixtures can be mounted on the tub deck of MTI BASICS freestanding tubs*. Floor- or wall-mounted fixtures are required. (*Except MBOFSX6636, which has an extended deck for mounting a faucet and/or handshower.)
-
Page 10: Electrical Installation Instructions
2. Every MTI BASICS whirlpool or air bath is supplied with a 29” grounded plug on each pump, inline heater or air blower to be plugged into a standard grounded receptacle. Do not remove this plug. -
Page 11: Important Safety Instructions
Q. My MTI air bath appears to just turn on even if we are not in the tub. A. Each MTI BASICS air bath is designed to purge 20 minutes after the system is turned off. This is normal, and helps keep the bath dry and sanitary. - Page 12 Carefully feel the grey air hose where it exits the blower. It should be warm to the touch. If it is cold, please contact MTI for service. Please note that some skin sensitive people might experience the so-called “cold air effect”, which is caused by the actual sensation of air bubbles running along the skin, giving the bather a “shivering”...
-
Page 13: Operating Instructions
Rotate the control counter-clockwise to increase the amount of air and pressure in the system. 5. All jets on MTI BASICS whirlpool baths are designed to operate individually. Open or close jets by twisting the outer ring. -
Page 14: Cleaning Instructions
Fill tub with warm water 2” above the highest jet and add one of the following to the bath water: 1/4 cup of MTI Baths’ Fresh Wave Cleaning Solution, 1 cup vinegar, or several drops of a low sudsing detergent mixed with 1 cup warm water. -
Page 15: Residential Warranty
Failure to do so will void warranty. If a problem is discovered after the final enclosure, MTI will not be responsible for the cost of removing or reinstalling the tub, or for the costs associated with any adjacent materials. Proper drain installation is the responsibility of the installer. - Page 16 They are responsible for ensuring that the unit is free of defect or damage. Our shipping container advises the installer of this responsibility. MTI is not responsible for failure or damage that should have been discovered, repaired and avoided by proper inspection and testing prior to installation.
-
Page 17: Commercial Warranty
The bath must be water tested for operation and leaks prior to final enclosure of the unit. Failure to do so will void warranty. If a problem is discovered after the final enclosure, MTI will not be responsible for the cost of removing or reinstalling the tub, or for the costs associated with any adjacent materials. - Page 18 They are responsible for ensuring that the unit is free of defect or damage. Our shipping container advises the installer of this responsibility. MTI is not responsible for failure or damage that should have been discovered, repaired and avoided by proper inspection and testing prior to installation.
- Page 19 Manufactured by MTI Baths, Inc. mtibaths.com 670 N. Price Road Sugar Hill, GA 30518 800 783 8827 770 271 8228 Fax 800 438 8827 © Copyright 2015 by MTI Baths, Inc. Modification Rights Reserved. Part # BASICSTUB rev. 08/20...
