Operation Instructions
Keypad style and functions may vary according to tub model, therapeutic features and selected options. Whirlpool packages vary and
may be personalized to include optional micro jets (See pg. 26).

Airbath Elite with Ultra Whirlpool

spa
mode

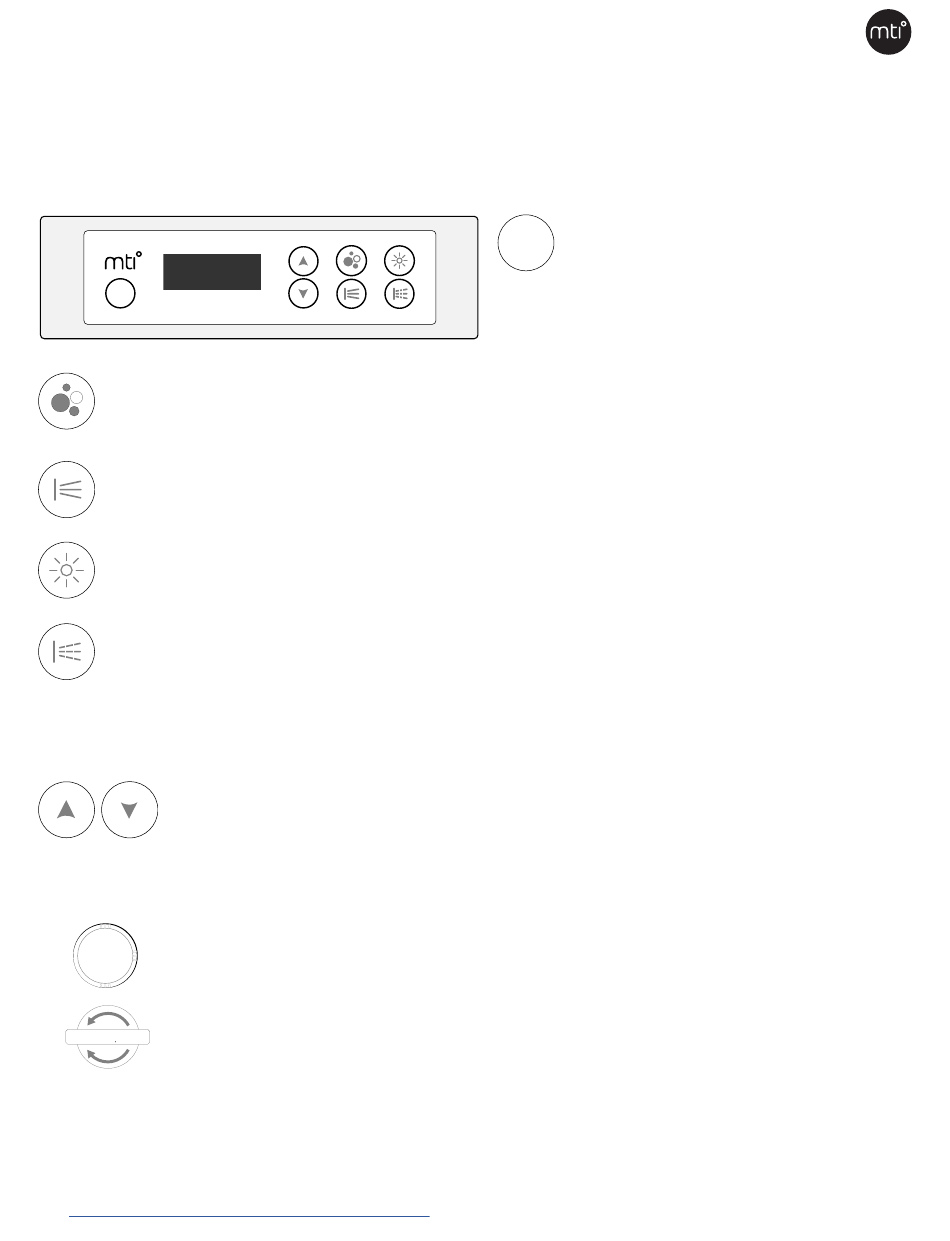

System 9
AIRBATH
1st Press: Blower starts. LED indicator light on.
2nd Press: Blower stops. LED indicator light off.
NOTE: Blower automatically stops after 20 minutes.
WHIRLPOOL
1st Press: Pump starts. LED indicator light on.
2nd Press: Pump stops. LED indicator light off.
CHROMATHERAPY
1st Press: System powers on white LED light. Use arrow buttons to change colors.
2nd Press: Slow rainbow mode cycles through all colors. Use arrow buttons to adjust speed.
3rd Press: Slow aqua-blue-green cycle. Use arrow buttons to adjust speed.
Press and hold at any time to turn off.
TSUBO MASSAGE (micro jets)
IMPORTANT! Cluster control diverter must be in the "OFF" position before turning on whirlpool, otherwise
water from these high-powered jets is likely to splash outside the bath.
1st Press: Tsubo pump starts. LED indicator light on.
2nd Press: Tsubo pump stops. LED indicator light off.
Press and Hold for 3 Seconds: Tsubo sequential pulse mode starts. LED indicator light flashes.
Press and Hold for 5 Seconds: Tsubo pump stops. LED indicator light off.
THERAPIES CONTROL
Use arrow buttons to gradually adjust airbath intensity.
Use arrow buttons to change light color and adjust color cycle speed.
Use arrow buttons to select one of seven different Tsubo massage patterns.
Not available when the Tsubo is in sequential pulse mode.
NOTE: This system is equipped with a Tsubo lock-out protection mode. See details on pg. 24.
WHIRLPOOL JETS OPERATION (air volume control)
ADJUSTMENT: Rotate the control counter-clockwise to increase the amount of air and pressure in the system. If
your tub is equipped with a cleaning system, the detergent dispenser is also the air volume control.
MICRO JETS OPERATION (cluster control diverter)
O N
IMPORTANT! Cluster control diverter must be in the "OFF" position before turning on whirlpool, otherwise water
OFF
from these high-powered jets is likely to splash outside the bath.
ADJUSTMENT: A single diverter knob is dedicated to each set of micro jets. Gradually turn this cluster control
diverter to increase pressure from the "OFF" position.
Airbath Drying Cycle
Floor sensors near drain activate drying cycle approximately 7 minutes after the bath is drained. Drying cycle will run for 1-2 minutes.
Airbath LED indicator light will blink during countdown. See details on pg. 24.
⁴ MTI will not be responsible for water damage in areas outside of the tub caused by improper operation.
Visit https://mtibaths.com/media-news/videos/support-videos/
Manual •
Designer
(continued)
spa
mode
for detailed operation instructions.
Collection •
Whirlpool and Airbaths
SPA MODE FOR AIRBATH AND CHROMATHERAPY
1st Press: Spa Mode starts. Use arrow buttons to
select preferred pattern. Automatically shuts off after
20 minutes.
2nd Press: Spa Mode stops.
mtibaths.com / 25
