Optional Therapies Installation Instructions
Stereo H
Stereo H 2 O System Installation

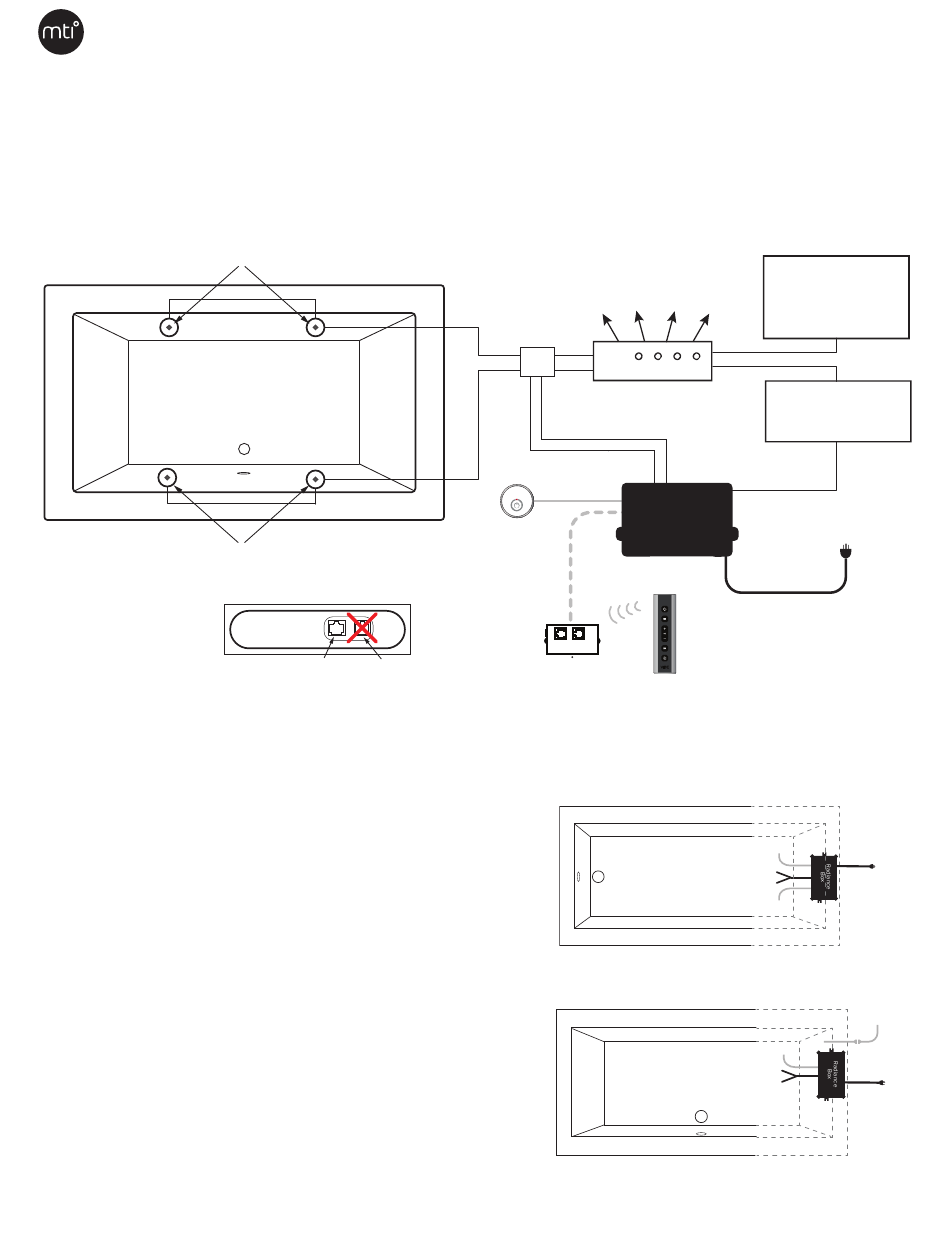

Stereo H 2 O is capable of providing output from a compatible audio device (not included). Location and number of transducers vary
based on H 2 O package, tub shape, hydrotherapy components and options. Electronic transducers can be wired to any quality receiver/
amplifier or integrated in zoned home audio system. Provided speaker leads connect to zoned audio amplifier. Vibe control will
automatically reconnect to paired device. The last device to connect to Vibe system will have priority.
Stereo H
Stereo H
Do not use AUX port on
Airbath Therapy Spa Mode
keypad for STEREOBT.
Radiance® Installation
Heating grids are factory-installed within the tub shell structure. Check order
details for grid locations.
• Must have access to transformer box for future servicing.
• When remote locating Radiance transformer box, DO NOT splice cables.
Extensions available from factory. Contact MTI Baths.
• Plug power cord (A) into 110V grounded circuit. Test prior to final
installation.
Standalone Radiance
• Dedicated keypad operates 2 heating pads.
• More than one independent system may be factory installed. Check order
details and electrical specifications.
Combination Systems
• Combination keypad operates air system package and 2 heating pads.
• More than 2 heating pads are independently operated with dedicated
keypad. Check order details and electrical specifications.
Independent Chromatherapy Installation
Plug light control box into a properly rated 110V GFCI circuit.
See electrical specifications.
10 / mtibaths.com
Manual •
O Transducers
2
O Transducers
2
O Transducers
2
CONTROL AUX
Spa Mode Keypad
Collection •
Designer Whirlpool and Airbaths
OR
ON/OFF
Stereo H 2 O
keypad
RT-MOD-06
STEREOBT optional remote control
Location of Radiance box and heating grids vary
based on tub model and options
Sonos, Inc. Amp
(not included)
Audio OUT to speakers
Hard-wired
in other rooms in the
Audio source(s)
house
(Phone, iPod, CD player,
tuner, satellite radio, etc.)
Multi-jack
stereo amplifier
(not included)
Vibe System
(included with
STEREOBT)
Bluetooth Amp
Standalone Radiance System
C
Combination Radiance System
C
Bluetooth
Audio source(s)
(Phone, tablet, etc.)
110V
B
A
A. Power (36")
to 110V
D
B. Keypad cable (8')
C. Y-splitter (12")
to heating pads
D. Thermostatic cable
(9') for heating pad
from pad
to blower
D
B
A
A. Power (36")
to 110V
B. Keypad cable (8')
C. Y-splitter (12")
to heating pads
D. Thermostatic cable
(9') for heating pad
