Installation and Operational Manual
Effective June 1, 2021
Boutique Collection
Engineered SculptureStone® Tubs
Installer: This booklet must be given to the product owner.
Please note important information below:
Distributor
Name
_______________________________________
Model # ________________________________________
Manufacturer's Date ____________________
Serial / Registration # ______________________________
Advertisement
Table of Contents
Related Manuals for MTI Boutique SculptureStone 131
Summary of Contents for MTI Boutique SculptureStone 131

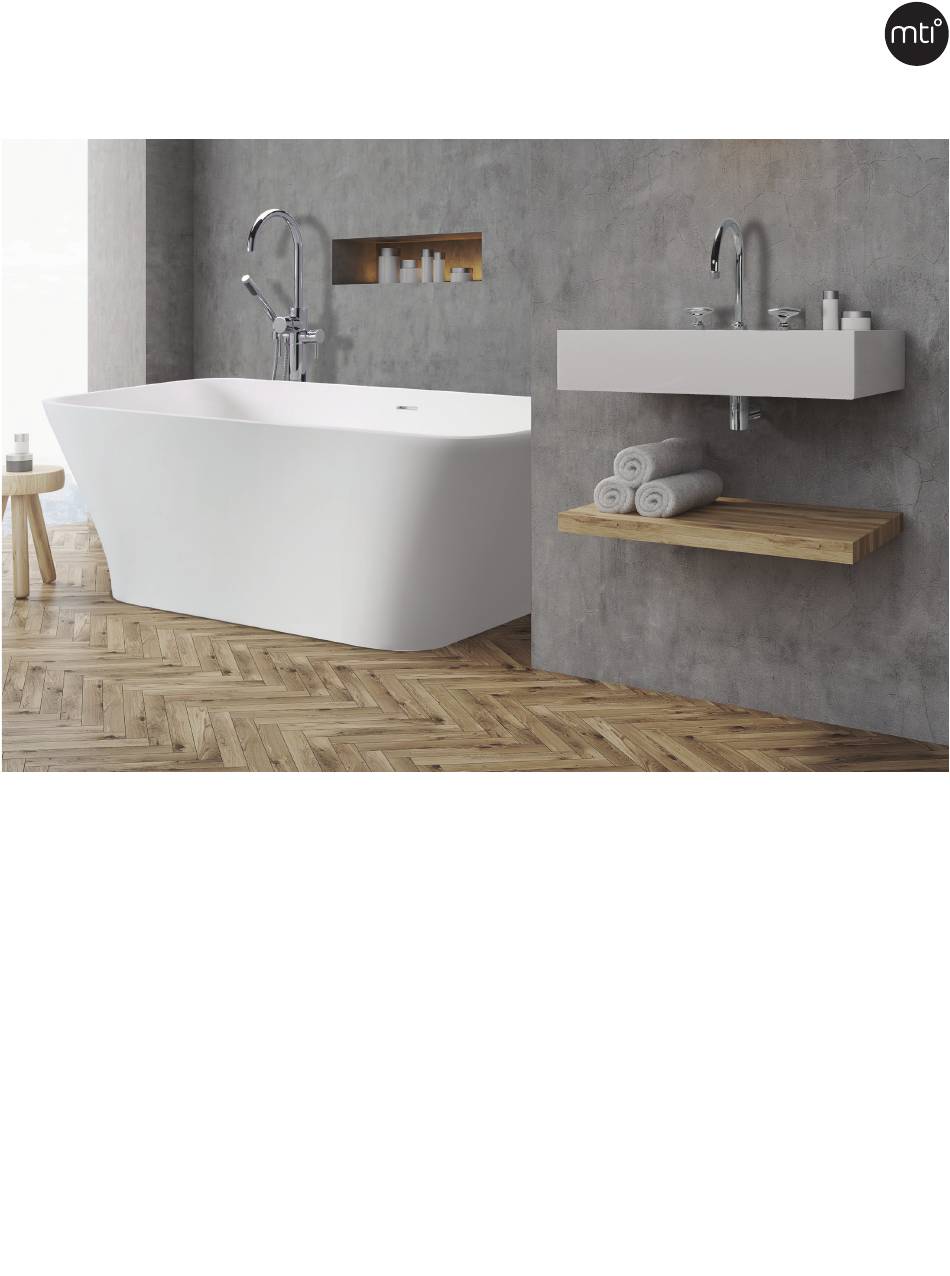

- Page 1 Installation and Operational Manual Effective June 1, 2021 Boutique Collection Engineered SculptureStone® Tubs Installer: This booklet must be given to the product owner. Please note important information below: Distributor Name _______________________________________ Model # ________________________________________ Manufacturer’s Date ____________________ Serial / Registration # ______________________________...
- Page 2 Owner’s Manual and Installation Guide Thank you for purchasing an MTI bath product. You have chosen the best-built Engineered SculptureStone®® (ESS) tub in the USA. The outstanding heat retention, combined with the ease of cleaning and the elegant look of natural stone, will provide you with many years of pleasure.
-
Page 3: Table Of Contents
Table of Contents Important Safety Instructions ..............1 Installation Instructions .................2-9 Product Inspection ................2 Drain Rough-In Dimensions .............3 Freestanding Tubs .................4-5 Drain Installation ...............4 Freestanding Tubs with Cradle ..........5 Alcove Tubs ..................6 Air Baths ................... 7-9 Electrical Specifications............7 Hydrotherapy Operating Instructions ..........10 Care and Cleaning Instructions ............ -
Page 4: Important Safety Instructions
SculptureStone® Tubs Important Safety Instructions This manual contains information and instructions for proper operation and maintenance of your MTI bathtub. Failure to follow these instructions could result in personal injury, electrical shock or fire. WARNING: WHEN USING ELECTRICAL PRODUCTS, BASIC PRECUATIONS SHOULD BE FOLLOWED INCLUDING THE FOLLOWING: Do not permit children to use this unit unless they are closely supervised by an adult at all times. -
Page 5: Installation Instructions
BEFORE INSTALLING: Inspect tub thoroughly. • Damage from shipping or delivery must be reported to carrier immediately. Do not install damaged tub. MTI is not responsible for damage occuring during transit. • Factory defect must be reported to factory before tub is installed. Defects or damage claimed after installation will be excluded from warranty. -
Page 6: Drain Rough-In Dimensions
Freestanding Tubs with Integral Overflow MTI Boutique freestanding tubs may be installed with the overflow postiioned in the rear or the front of the tub, however, rough-in dimensions provided below are from center of drain to the top outside edge as shown on the product specification sheet. See product specs for line drawing of each tub model. -
Page 7: Drain Installation
1. Install drain assembly on tub using clear silicone under metal waste flange and on both sides of the gray rubber gasket on underside of the tub. MTI recommends using a small amount of clear silicone on the female threads of the PVC drain fitting to act as a thread sealant. -
Page 8: Freestanding Tubs With Cradle
Fully Finished Matching Escutcheon ¹MTI does not warrant leaks associated with improper drain installation and will not be responsible for any costs related to improper installation. If you need assistance, please call the MTI Service Department at 800.783.8827. 5 / mtibaths.com... -
Page 9: Alcove Tubs
Installation and Operational Manual • Boutique Collection • SculptureStone® Tubs Installation Instructions – Alcove Tubs Due to the handcrafted nature of this product, all printed specifications have a +/- ½" tolerance and are subject to change at any time. Take all final installation dimensions from your tub before constructing the stud wall. This tub is ready for installation on a flat, level subfloor. -
Page 10: Air Baths
Note: MTI does not recommend locating the blower more than 8’ from the tub to prevent heat loss from the blower to the tub. 1” schedule 40 PVC pipe and pipe insulation may be used to help retain the warmth of air from the blower. - Page 11 IMPORTANT: Side exit from the pedesal would require onsite drilling through the pedestal and should only be considered when there is no subfloor access to run the airline. MTI does not recommend an above-the-floor airline, unless the tub and outlet in pedestal are very close the wall or the airline can be concealed with nearby or surrounding cabinetry.
- Page 12 Installation and Operational Manual • Boutique Collection • SculptureStone® Tubs Installation Instructions – Airbath The following illustrations are referenced in the instructions on page 8. Illustration A Check Valve - must be mounted horizontally (as shown) and at least 2” above rim of tub. Rigid 1”...
-
Page 13: Hydrotherapy Operating Instructions
Installation and Operational Manual • Boutique Collection • SculptureStone® Tubs Operation Instructions – Airbath Keypad and Remote Note: Numbered instructions depict buttons in photo as seen from left to right on keypad or top to bottom on remote control. Airbath Keypad FUNCTIONS: 1. ON/OFF 1st Press: The blower starts. -
Page 14: Care And Cleaning Instructions
Care and Cleaning Instructions The ESS surface of all MTI tubs is among the highest quality surfaces available. Its hard, non-porous surface prevents dirt from accumulating and resists stains better than other materials. This tub is made of resin and natural minerals and may have minor variations in color and surface texture throughout the tub. -
Page 15: Troubleshooting
To verify, turn the air system on high for 4-5 minutes (you do not need to have water in the tub). Carefully feel the grey air hose where it exits the blower. It should be warm to the touch. If it is cold, please contact MTI for service. -
Page 16: Residential Warranty
MTI does not warrant leaks associated with improper waste and overflow installation or damages from over- filling the bath. Never leave a full bath or filling bath unattended. MTI will not be responsible for the cost of removing or reinstalling the unit, or costs associated with any adjacent materials. - Page 17 *Exceptions for Alaskan and Canadian Customers: MTI Baths extends the complete ten year Limited Residential Warranty to any ESS tub installed within a 75-mile radius of an Authorized MTI Distributor. Any installation site outside the 75-mile radius will be covered for two years, parts only.
-
Page 18: Commercial Warranty
This warranty is effective for all MTI Engineered SculptureStone® (ESS) tubs manufactured after January 1, 2018, and is in lieu of all other warranties. MTI Baths, Inc. (MTI) provides a limited warranty for all ESS tubs for use in the continental USA to the original purchaser for commercial, rental or multi-family application. - Page 19 Display Models: Display floor models and overstock sale units are excluded from this warranty. Drain Kits & Finishes: Drain kits that are sold by MTI are not manufactured by MTI and are excluded from this product warranty. Many drain kits and accessories carry a factory warranty direct from the manufacturer.
- Page 20 Installation and Operational Manual • Boutique Collection • SculptureStone® Tubs NOTES 17 / mtibaths.com...
- Page 21 Installation and Operational Manual • Boutique Collection • SculptureStone® Tubs NOTES 18 / mtibaths.com...
- Page 22 NOTES...
- Page 23 Made in the USA MTI Baths 670 North Price Road Sugar Hill, GA 30518 mtibaths.com p: (800) 783-8827 © Copyright 2021 by MTI Baths, Inc. Modification Rights Reserved. 0621 f: (800) 438-8827...
