Installation and Operational Manual

Effective October 1, 2021

Designer Collection

Freestanding Tubs — Acrylic CXL

DoloMatte

Installer: This booklet must be given to the product owner.

Please note important information below:

Distributor

Name

Model #

Manufacturer's Date

Serial / Registration #

mtibaths.com

Need help?

Do you have a question about the Andrea S93D3 and is the answer not in the manual?

Questions and answers

Summary of Contents for MTI Andrea S93D3

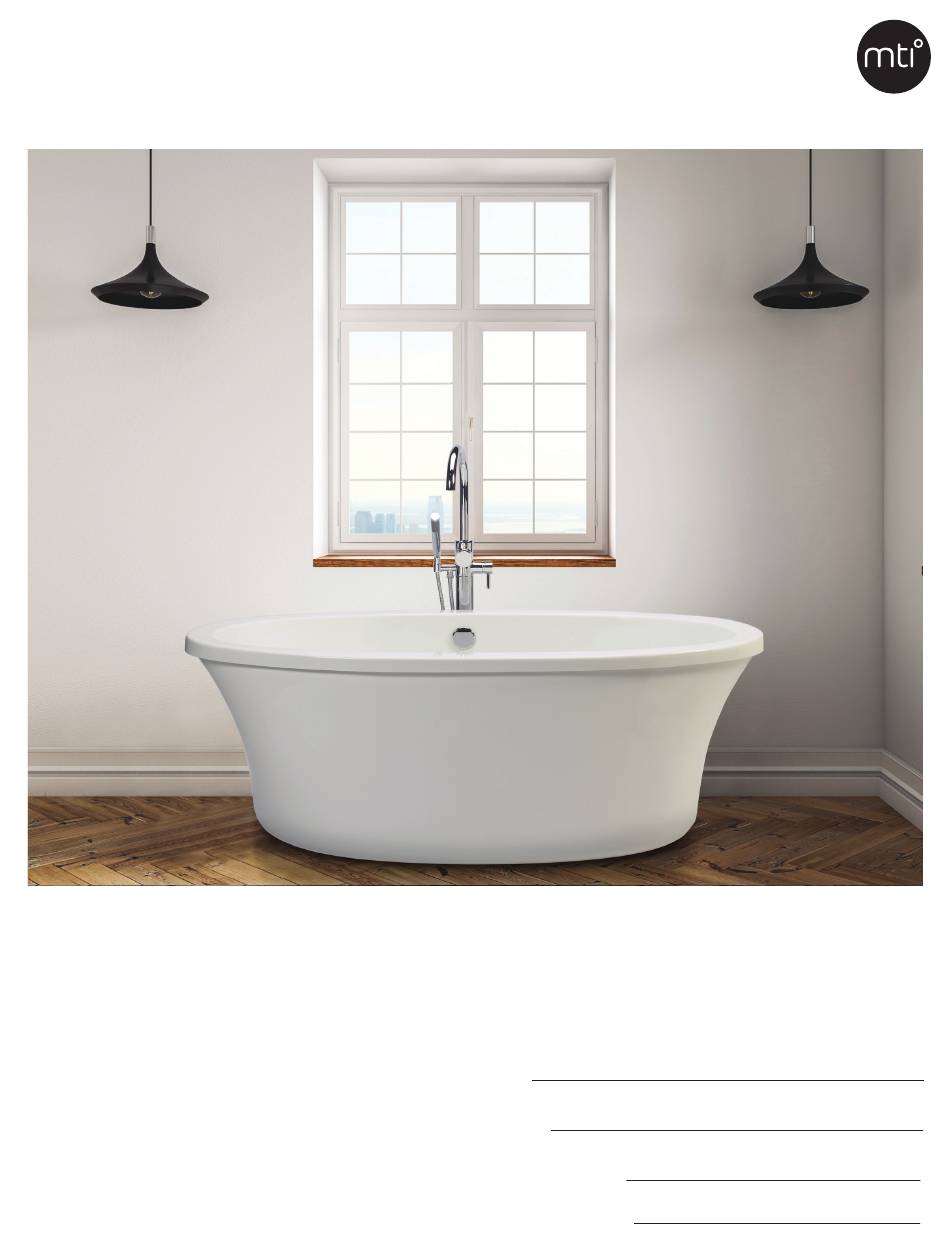

Page 1 Installation and Operational Manual Effective October 1, 2021 Designer Collection Installer: This booklet must be given to the product owner. Freestanding Tubs — Acrylic CXL Please note important information below: DoloMatte Distributor Name Model # Manufacturer’s Date Serial / Registration # mtibaths.com...
Page 2 Owner’s Manual & Installation Guide Thank you for purchasing an MTI bath product. You have chosen the best- built freestanding tub in America. We know that it will give you many years of pleasure. The instructions in this booklet will provide you with the information you need to install and operate this unit.
Page 3 Table of Contents Important Safety Instructions ..........1 Bath Installation Instructions ........... 2–7 Product Inspect & Test Procedures ......2 Important Information — Freestanding Bath ....3 Rough-In Charts ............4–5 Drain Installation ..............6 Plumbing & Electrical ............7 System &...
Page 4 Freestanding Tubs Important Safety Instructions This manual contains information and instructions for proper handling, operation and maintenance of your MTI bathtub. Failure to follow these instructions could result in personal injury, electrical shock or fire. WARNING: When using electrical products, basic precautions should be followed, including the following: •...
Page 5 MTI does not warrant leaks associated with improper drain or valve installation. Inspect Product Thoroughly • Damage from shipping or delivery must be reported to carrier immediately. Do not install damaged tub. MTI is not responsible for damage occuring during transit.
Page 6 Drain and Overflow – MTI offers a variety of waste and overflow kits. A direct connect toe tap drain kit comes standard with tub models that include an integrated overflow. For other freestanding models, we recommend using our low-profile cable driven drain kit. The flexible neck makes this an ideal choice as a concealed drain.
Page 7 See page 6 for installation instructions for tubs with and without access from below. **Model 204 is a Clawfoot Tub designed for a decorative drain kit with exposed piping. MTI recommends purchase of our exposed decorative drain kit for best fit. See important installation information at the bottom of page 3 and follow manufacturer’s drain installation instructions for selected waste &...
Page 8 Tubs With Direct Tee Drain MTI Recommends using clear 100% silicone sealant. Do Not use plumber’s putty. Tub models with direct-tee toe tap drain kits are designed to install with tub drain aligned directly above drain pipe. Rough-in waste pipe from center of drain to top outside edge of tub.
Page 9 Tubs with Integrated Overflow require only waste installation Thread the PVC drain fitting onto the waste flange. MTI recommends using a small amount of clear silicone on the threads of the PVC drain fitting to act as a thread sealant. Tighten until it seats, plus one quarter turn.
Page 10 *NOTE: Air blowers do not require a bonding conductor. ¹MTI does not warrant leaks associated with improper drain or valve installation and will not be responsible for any costs involved with removing or reinstalling the tub. Failure to check floor for flat & level surface, or properly water test the tub & drain, which could will result in improper drainage of the bath, is the responsibility of the installer.
Page 11 A keypad (on/off device) installed remote of the tub must always be connected with one continuous cable. Never use a spliced or coupled data cable. MTI can provide a data cable up to a 12’ length. Cables in excess of 12’ may be acquired from local electronics suppliers.
Page 12 4. Do not crush or kink any of the connections. 5. Extensions: Do not attempt to disconnect any cables extending from the tub. Extensions are available through MTI’s Technical Service Department. See page 8 for more details. 9 / mtibaths.com...
Page 13 Do not attempt to disconnect or splice Radiance® or Chromatherapy cables installed on or extending from the tub. Extensions are available through MTI’s Service Department. See page 8 for more details. All system components must be accessible for future servicing. Test prior to completing installation. MTI is not responsible for obtaining access for warranty service.
Page 14 Installation and Operational Manual ° Designer Collection ° Freestanding Tubs Operation Instructions - Combined Therapy Standard Airbath #1 System ON/OFF 1st Press: The blower starts. LED indicator light on. 2nd Press: The blower stops. LED indicator light off. NOTE: Blower automatically stops after 20 minutes. Blower speed increase Press &...
Page 15 Installation and Operational Manual ° Designer Collection ° Freestanding Tubs Operation Instructions - Combined Therapy Airbath with LED Lights and Radiance® #4R System ON/OFF for radiance 1st Press: Turns on both heated zones LED indicator light on. 2nd Press: Turns off Radiance system. LED indicator light off. ON/OFF: Airbath 1st Press: The blower starts.
Page 16 Airbath Elite with Spa Mode Keypad style and functions may vary according to tub model and selected options. See product specification sheet for details or contact MTI Baths. #4 Digital System ON/OFF 1st Press: The blower starts. LED indicator light on.
Page 17 Installation and Operational Manual ° Designer Collection ° Freestanding Tubs Independent Chromatherapy ON/OFF: PRESS THE ON/OFF BUTTON LIGHT MUST BE ON FOR ANY MODE TO FUNCTION 1st Press: White light. LED light on (White is only available when the system is initially turned on). 2nd Press: Light off.
Page 18 For deeper scratches, sand the surface lightly with a 400 grit “wet or dry” paper and buff with a fine grit buffing compound. • MTI strongly recommends a professional surface repair person for deep scratches, chips or gouges. • Damage occurring to the unit during installation is the responsibility of the installer, and after installation, the responsibility of the user.
Page 19 With normal use DoloMatte will retain its beauty with only a minimal amount of care. To maintain its elegant look, follow these simple steps: • MTI recommends cleaning with a soft, damp cloth and any mild dish soap and water. Fingerprints may be removed with denatured alcohol applied to a soft cloth.
Page 20 A: To verify, turn the air system on high for 4-5 minutes (you do not need to have water in the tub). Carefully feel the grey air hose where it exits the blower. It should be warm to the touch. If it is cold, please contact MTI for service. Please note that some skin sensitive people might experience the so-called “cold air effect”, which is caused by the actual sensation of air bubbles running along the skin, giving the...
Page 21 Installation and Operational Manual ° Designer Collection ° Freestanding Tubs NOTES mtibaths.com / 18...
Page 22 Warranty Extent & Limitations: Warranty coverage begins on date of purchase regardless of installation date. The warranty registration card must be mailed to MTI Baths at 670 N. Price Rd. Sugar Hill, Georgia 30518 or completed online mtibaths.com/contact-us/ within one hundred twenty days from purchase.
Page 23 Authorized MTI Distributor. Any installation site outside the 75-mile radius will be covered for two years, parts only. *Exceptions for Hawaiian Customers: MTI Baths extends the complete Limited Residential Warranty to Hawaiian customers on the islands of Maui, Kauai and Oahu only. All other locations will be covered for two years, parts only.
Page 24 Two-Year Bath Warranty Shell: MTI warrants the tub shell against defects in material and workmanship for a period of two years from the date of purchase. Variations in resin/fiberglass thickness on the underside of the bath are not considered defects and do not affect the performance, integrity or quality of the product.
Page 25 Display Models: Display floor models and overstock sale units are excluded from this warranty. Drain Kits & Finishes: Drain kits that are sold by MTI are not manufactured by MTI and are excluded from this product warranty. Many drain kits and accessories carry a factory warranty direct from the manufacturer. Terms vary among manufacturers.
