Electrical - MTI Designer Series Installation And Operation Manual

Installation and Operational
Electrical Specifications*
Please see tub specification sheet and/or your order details for electrical components included. Each component will have electrical
specifications listed on the product label.
Airbath Blower
Pumps • 1 bhp pump
• 2 bhp pump
• 3 bhp pump
• Stream bath pump
• Waterfall pump
Microbubbles
1500-Watt Inline Heater for Whirlpools
650-Watt Inline Heater for Whirlpools
HTISOAK 1500-Watt Pump/Heater combo
Electrical Installation
When installing or using electrical products, basic precautions should always be followed, including:
• All MTI hydrotherapy systems require dedicated 110V circuits for the electrical components. See Electrical Specifications.
• Many options may be combined on a 20 amp circuit, as long as total amps of combined options do not exceed circuit capacity.
• When there are more than two power cords , they will be gathered together with a hang tag indicating the number of items requiring
direct power for proper operation. This circuit must be protected by an accessible ground fault circuit interrupter (GFCI).
• Access must be provided to each electrical component. The access panels for most hydrotherapy tub systems must have a minimum
size of 16" x 14" for future servicing. Microbubbles requires minimum access size of 20" x 16". MTI will not authorize service unless clear
access is available. Owner is responsible for providing proper access.
• Under no circumstance should any power cord(s) be altered, nor should extension cords be used. Products do not require hardwiring
or separate, wall-mounted switch.
• The pressure wire connector located on the exterior of pumps and heaters permits connection of a No.8 AWG (8.4mm) solid copper
bonding conductor to all other electrical equipment and exposed metal in the vicinity as needed to comply with local requirements.
NOTE: Air blowers do not require a bonding conductor.
Testing GFCI (test on a routine basis)
Push the TEST button. The GFCI should interrupt power.
Push the RESET button. Power should be restored.
WARNING: If the GFCI fails to operate in this manner, there is a ground current flowing, indicating the possibility of electric shock.
DO NOT use this unit. Disconnect the unit and have the problem corrected by a qualified service representative before using.

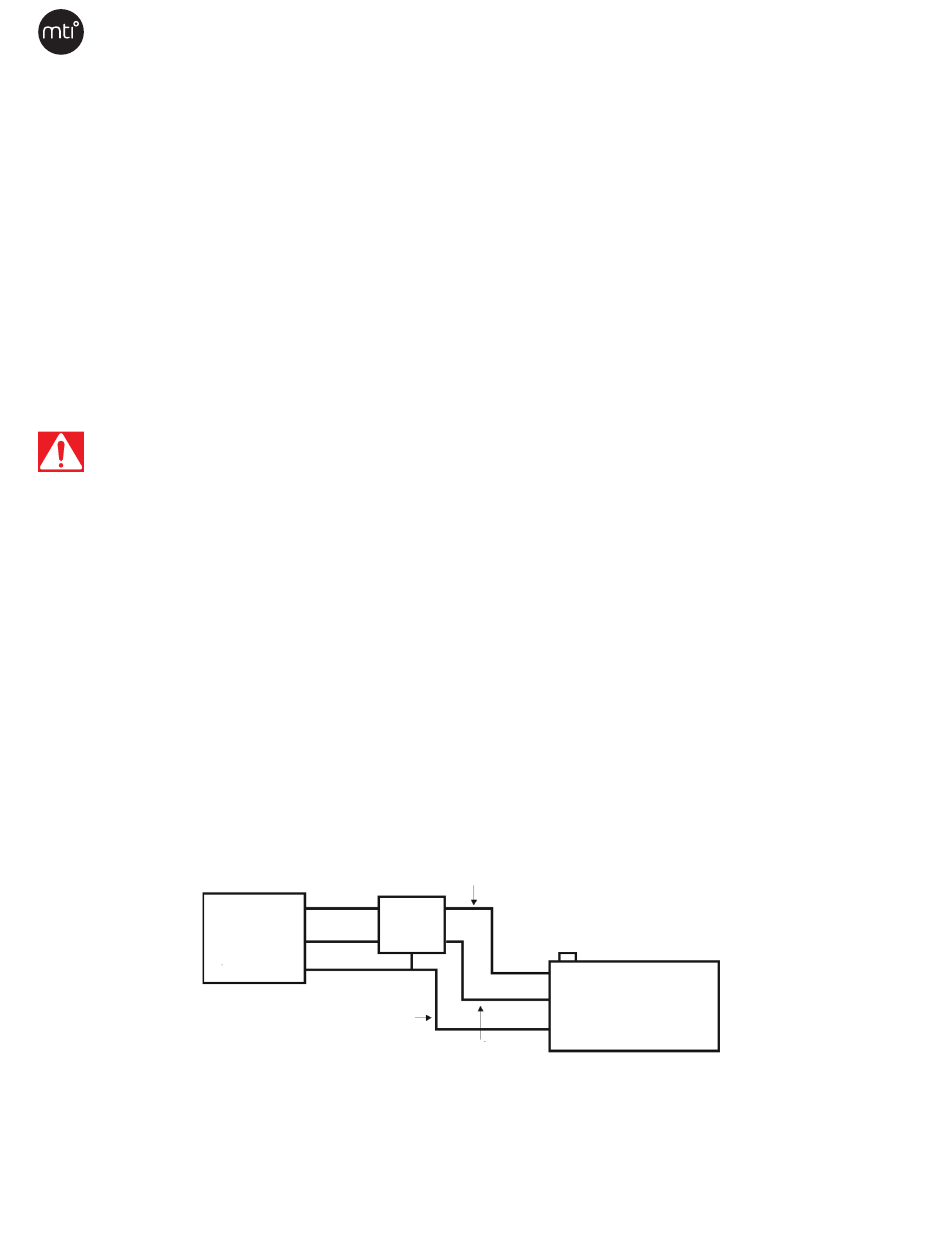

Fig. 1
• Unauthorized modification of this unit or any of its parts may cause unsafe operation and poor performance.
• DO NOT relocate the pump, or make other unauthorized modifications to the bath system, as this could adversely affect the
performance and safe operation of the unit.
• MTI shall not be liable under its warranty or otherwise for personal injury or damage caused by any such unauthorized modification.
6 / mtibaths.com
Manual •
Designer
110 VAC 8.8 AMP
110 VAC 6.3 AMP
110 VAC 10 AMP
110 VAC 13.5 AMP
110 VAC 3 AMP
110 VAC 6.3 AMP
110 VAC 9 AMP
110 VAC 12.5 AMP
110 VAC 5.3 AMP
110 VAC 18 AMP
110VAC GFCI
Power
Supply
Green/Ground
See Manufacturer's Wiring Diagram on Motor
Collection •
Whirlpool and Airbaths
Chromatherapy LED Lighting (Set of Two)
Ozone Bath Sanitation System
Radiance® Dual Zone
Bath Shell Warming System
Simple Touch Cleaning System
Tsubo-Hydromassage Control Box
Low-Water Sensor
Stereo H2O or Stereo with Bluetooth
Spa Pump
*Subject to change without notice. It is the responsibility of the
installer to comply with all State and Local codes.
Black/Hot
Grounding Conductor
(Pressure Wire Connector)
Motor
White/Neutral
110 VAC 1 AMP
110 VAC 1 AMP
110 VAC 5 AMP
110 VAC 1 AMP
110 VAC 1 AMP
110 VAC 1 AMP
110 VAC 1 AMP
220 VAC 8.5 AMP
