Airbath Installation

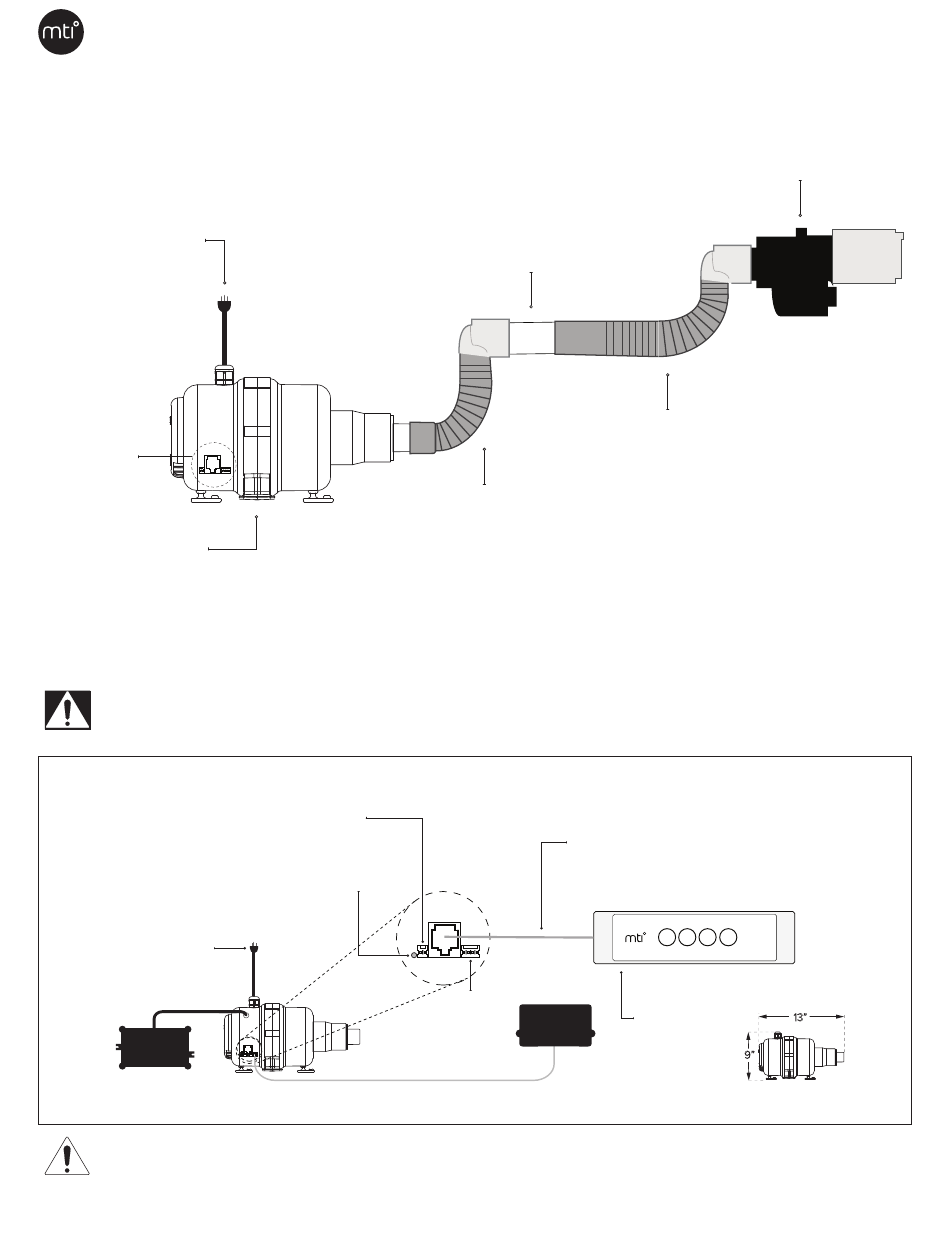

Remote Installation Of Air Blower (optional)
The following illustration is referenced in the instructions on pg. 7.
Power Cord
See Figs. 3–5
System
Cable Ports
See Figs. 3–5
Blower
(remotely located)
Fig. 2
Remote Installation Of Air System Components (optional)
Do not attempt to relocate whirlpool pumps. Whirlpool pumps may be removed temporarily for ease of installation, but must
be reconnected in factory-installed location. Be sure to tighten union nuts and secure feet to the mounting blocks. Ground each
pump before testing. See Fig. 1 on pg. 6.
Airbath (systems 1, 3)
System 1
To 110V
Radiance
Box
For
System 1R
Fig. 3
IMPORTANT! Never under any circumstances modify the power cords.
8 / mtibaths.com
Manual •
Designer
(continued)
Water Sensor Port
To the drain (underside of tub)
Thermostatic Cable
Coupled to heating pad
System 1R only
Collection •
Whirlpool and Airbaths
1" Schedule
40 PVC
not included
From blower to
flex hose
Optional
Flex Air Hose
In lieu of rigid PVC
to blower nozzle
Ethernet Cable
To keypad
For
TMS-P Port System 3
System 3 only
TMS-P
Timer
Control
Check Valve
Flex Air Hose
To factory-installed check
valve under tub deck
Keypad
13"
Style varies by system
9"
Blower
13" x 8" x 9"
