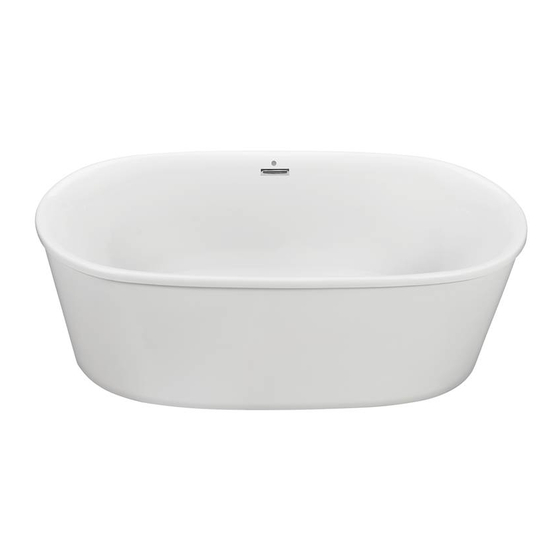

MTI Adel 3 Quick Start Manual

Features a 1" tub ledge with
integrated overflow for minimalist design.
Drain Rough-In
Measurement
X
15.5"
X
Floor
ELECTRICAL COMPONENTS & SPECIFICATIONS
Components Included
Hydrotherapy Package
Air Massage heated blower
Air Massage Elite heated blower, chromatherapy
Electrical requirements may change with the addition of optional
therapy components.
See specific option details or installation information.
CSA Certified C/US; B45.5/IAPMO ANSI Z124.1 and ANSI 112.19.7
• Before discarding tub crate, check for accessories that may be packaged inside.
• All product measurements are +1/2".
• Specifications and configurations are subject to change without notice.
• Measurements herein supersede all others published prior to publication date below.
CSA # MTDS- 268
CSA # MTDS- 268DM
31"
Requires use of a wall-mounted or freestanding tub filler.
Shown with Air Massage Package.
1"
110V GFCI
1-15 amp
1-15 amp
66"
15½"
21½"
29"
19½"
105°
17"
46½"
57¾"
Footprint: 57¾" x 26"
IMPORTANT ORDERING & INSTALLATION INFORMATION:
• Before ordering or installing, please consider future access to equipment.
• No access panel. Tub features slotted integrated overflow with toe tap drain.
• Hydrotherapy equipment may ship loose for remote installation depending on tub
model. See bullets at the top of the next page for details.
• Radiance placed on floor locations will affect placement of air jets.
• Faucet valves cannot be installed on this tub model.
• All tubs are in accordance with CSA B45.5/IAPMO Z124 standard and compliant with
ASTM C 1028-07 coefficient of friction. DoloMatte meets ANSI A137.1/A326.3 coefficient
of friction and AS HB198:2014 pendulum slip resistance testing.
See the Installation & Operation Manual for more details.
MTI's Customer Service: Monday-Friday 8am-6pm EST
800-783-8827 or service@mtibaths.com
©2022 by MTI Baths, Inc. Modification Rights Reserved
1 of 2
Designer Collection Tubs
model 268
66" x 31" x 23.5"
FREESTANDING
77 gal to overflow
Acrylic CXL DoloMatte
TM
125 lbs / 57 kg < soaker > 141 lbs / 64 kg
Filling this tub to the maximum may require an
above average size or dedicated water heater.
"
1
23½"
Adel 3
TM
Rev. 07 21 2022
